Search › Model › J30
J30

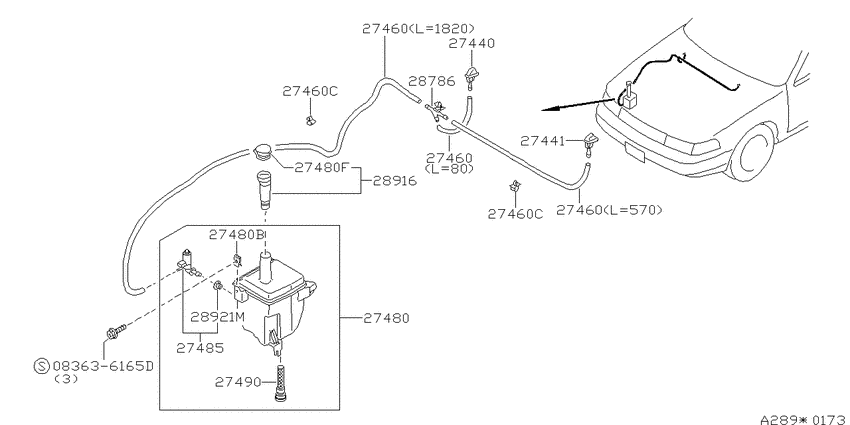

Windshield washer (1991-08-01 ~ ; S) 8
| # | OEM | Part name |
|---|---|---|
| 27440 | 28930-88E00 | NOZZLE ASSY-WASHER,NO 1 |
| 27441 | 28931-88E00 | NOZZLE ASSY-WASHER,NO 2 |
| 27480 | 28910-85E00 | TANK ASSY-WINDSHIELD WASHER |
| 27480 | 01241-00191 | NUT |
| 27480 | 28913-JM01A | Cap-Windshield Washer Tank |
| 27490 | 28911-V5000 | Sensor Assy-Water |
| 28916 | 28915-85E01 | INLET-WASHER TANK |
| 83636165 | 08363-6165D | Rope & Hook |
| OEM | Part name | Category |
|---|---|---|
| 01241-00191 | NUT | Windshield washer (1991-08-01 ~ ; S) |
| 08363-6165D | Rope & Hook | Windshield washer (1991-08-01 ~ ; S) |
| 28910-85E00 | TANK ASSY-WINDSHIELD WASHER | Windshield washer (1991-08-01 ~ ; S) |
| 28911-V5000 | Sensor Assy-Water | Windshield washer (1991-08-01 ~ ; S) |
| 28913-JM01A | Cap-Windshield Washer Tank | Windshield washer (1991-08-01 ~ ; S) |
| 28915-85E01 | INLET-WASHER TANK | Windshield washer (1991-08-01 ~ ; S) |
| 28930-88E00 | NOZZLE ASSY-WASHER,NO 1 | Windshield washer (1991-08-01 ~ ; S) |
| 28931-88E00 | NOZZLE ASSY-WASHER,NO 2 | Windshield washer (1991-08-01 ~ ; S) |
