Search › Model › J30

J30

Nissan MAXIMA · 1988 · 3,734 parts · 186 categories

← Back to categories

3,734 items

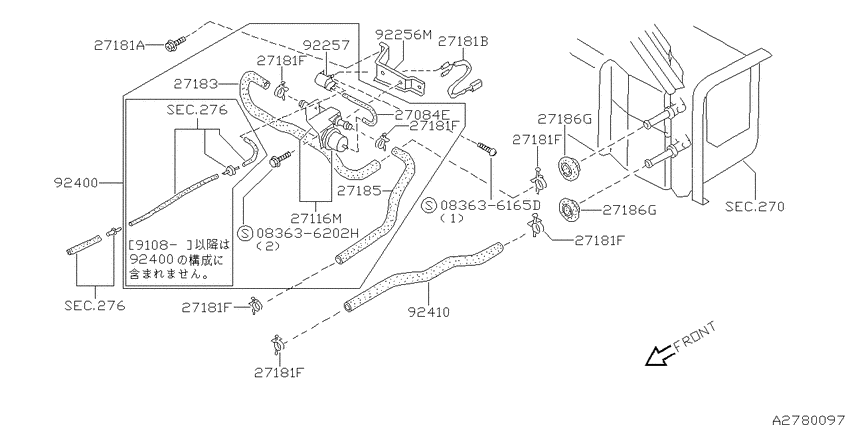

Heater piping (1991-08-01 ~ ; S) 13

#	OEM	Part name
27116	92230-97E00	COCK-WATER CONTROL
27181	01436-01671	SCREW
27181	24041-85E00	HARNESS-SOLENOID
27181	01555-00261	CLAMP-HOSE
27183	92402-97E00	HOSE-FRONT HEATER,2
27185	92401-97E00	HOSE-FRONT HEATER,3
27185	27185-51E00	DOOR ASSY-FOOT
27186	92580-78E00	GROMMET-RUBBER
27186	92580-78E01	GROMMET-RUBBER
92257	92257-85E00	VALVESOLENOID
92400	92400-97E00	ホ-ス,ヒ-タ- インレツト
92410	92410-97E00	ホ-ス,ヒ-タ- アウトレツト
83636165	08363-6165D	Rope & Hook

OEM	Part name	Category
01436-01671	SCREW	Heater piping (1991-08-01 ~ ; S)
01555-00261	CLAMP-HOSE	Heater piping (1991-08-01 ~ ; S)
08363-6165D	Rope & Hook	Heater piping (1991-08-01 ~ ; S)
24041-85E00	HARNESS-SOLENOID	Heater piping (1991-08-01 ~ ; S)
27185-51E00	DOOR ASSY-FOOT	Heater piping (1991-08-01 ~ ; S)
92230-97E00	COCK-WATER CONTROL	Heater piping (1991-08-01 ~ ; S)
92257-85E00	VALVESOLENOID	Heater piping (1991-08-01 ~ ; S)
92400-97E00	ホ-ス,ヒ-タ- インレツト	Heater piping (1991-08-01 ~ ; S)
92401-97E00	HOSE-FRONT HEATER,3	Heater piping (1991-08-01 ~ ; S)
92402-97E00	HOSE-FRONT HEATER,2	Heater piping (1991-08-01 ~ ; S)
92410-97E00	ホ-ス,ヒ-タ- アウトレツト	Heater piping (1991-08-01 ~ ; S)
92580-78E00	GROMMET-RUBBER	Heater piping (1991-08-01 ~ ; S)
92580-78E01	GROMMET-RUBBER	Heater piping (1991-08-01 ~ ; S)

Source: Public OEM parts-catalog data
Variants: 2 / 21
Category: 186
Collected: 2026-07-29
