Search › Model › J30
J30

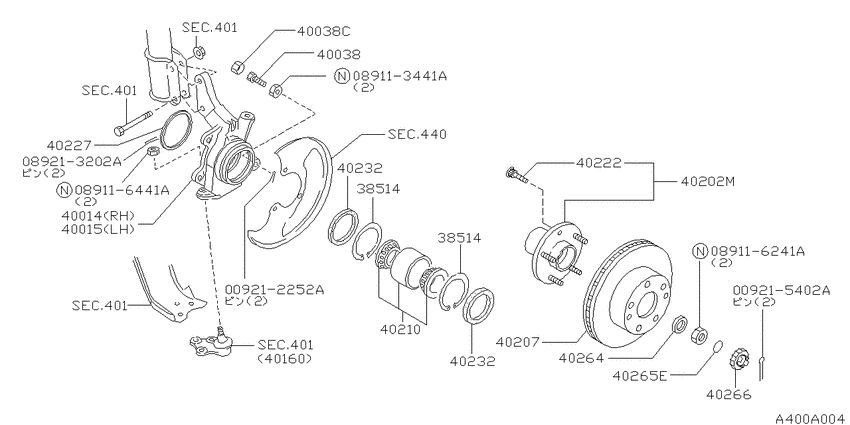

Front axle (1991-08-01 ~ ; VE30DE) 11
| # | OEM | Part name |
|---|---|---|
| 40014 | 40014-85E10 | SPINDLE-KNUCKLE,RH |
| 40015 | 40015-85E10 | SPINDLE-KNUCKLE,LH |
| 40038 | 40038-D0102 | Bolt-Stopper |
| 40202 | 40202-96E00 | HUB ASSY-ROAD WHEEL,FRONT |
| 40207 | 40206-88E04 | ROTOR-DISC BRAKE,FRONT |
| 40210 | 40210-30R06 | Bearing Assy-Front Wheel |
| 40222 | 43222-21B60 | Bolt-Hub |
| 40232 | 40232-33P10 | Seal-Grease, Front Hub |
| 40266 | 40263-51E00 | CAP-ADJUSTING,LH |
| 9212252 | 00921-2252A | ピン,スプリツト コツタ- |
| 89113441 | 08911-3441A | ナツト,ヘクサゴン |
| OEM | Part name | Category |
|---|---|---|
| 00921-2252A | ピン,スプリツト コツタ- | Front axle (1991-08-01 ~ ; VE30DE) |
| 08911-3441A | ナツト,ヘクサゴン | Front axle (1991-08-01 ~ ; VE30DE) |
| 40014-85E10 | SPINDLE-KNUCKLE,RH | Front axle (1991-08-01 ~ ; VE30DE) |
| 40015-85E10 | SPINDLE-KNUCKLE,LH | Front axle (1991-08-01 ~ ; VE30DE) |
| 40038-D0102 | Bolt-Stopper | Front axle (1991-08-01 ~ ; VE30DE) |
| 40202-96E00 | HUB ASSY-ROAD WHEEL,FRONT | Front axle (1991-08-01 ~ ; VE30DE) |
| 40206-88E04 | ROTOR-DISC BRAKE,FRONT | Front axle (1991-08-01 ~ ; VE30DE) |
| 40210-30R06 | Bearing Assy-Front Wheel | Front axle (1991-08-01 ~ ; VE30DE) |
| 40232-33P10 | Seal-Grease, Front Hub | Front axle (1991-08-01 ~ ; VE30DE) |
| 40263-51E00 | CAP-ADJUSTING,LH | Front axle (1991-08-01 ~ ; VE30DE) |
| 43222-21B60 | Bolt-Hub | Front axle (1991-08-01 ~ ; VE30DE) |
