Search › Model › J30
J30

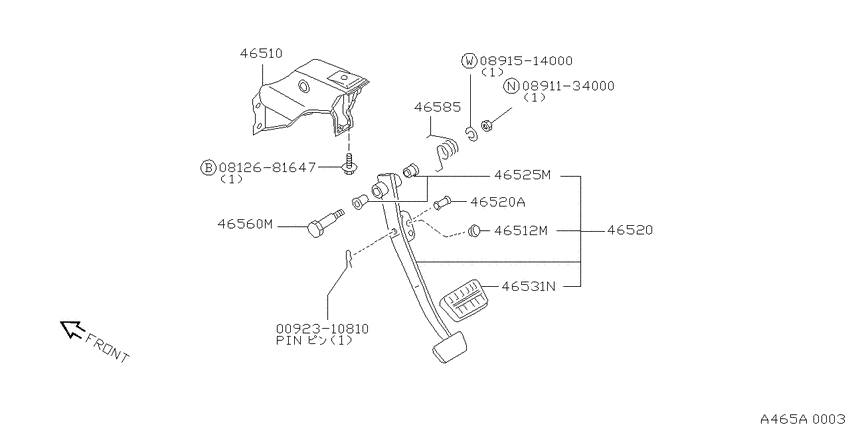

Brake & clutch pedal (1991-08-01 ~ ; VE30DE) 6
| # | OEM | Part name |
|---|---|---|
| 46510 | 46510-97E10 | BRACKET ASSY-PEDAL |
| 46520 | 46520-97E10 | PEDAL ASSY-BRAKE |
| 46520 | 46123-03W10 | Pin-Clevis |
| 46585 | 46585-51E05 | SPRING-RETURN |
| 92310810 | 00923-10810 | PIN-SNAP |
| 812681647 | 08126-81647 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 00923-10810 | PIN-SNAP | Brake & clutch pedal (1991-08-01 ~ ; VE30DE) |
| 08126-81647 | Bolt-hexagon | Brake & clutch pedal (1991-08-01 ~ ; VE30DE) |
| 46123-03W10 | Pin-Clevis | Brake & clutch pedal (1991-08-01 ~ ; VE30DE) |
| 46510-97E10 | BRACKET ASSY-PEDAL | Brake & clutch pedal (1991-08-01 ~ ; VE30DE) |
| 46520-97E10 | PEDAL ASSY-BRAKE | Brake & clutch pedal (1991-08-01 ~ ; VE30DE) |
| 46585-51E05 | SPRING-RETURN | Brake & clutch pedal (1991-08-01 ~ ; VE30DE) |
