Search › Model › J30
J30

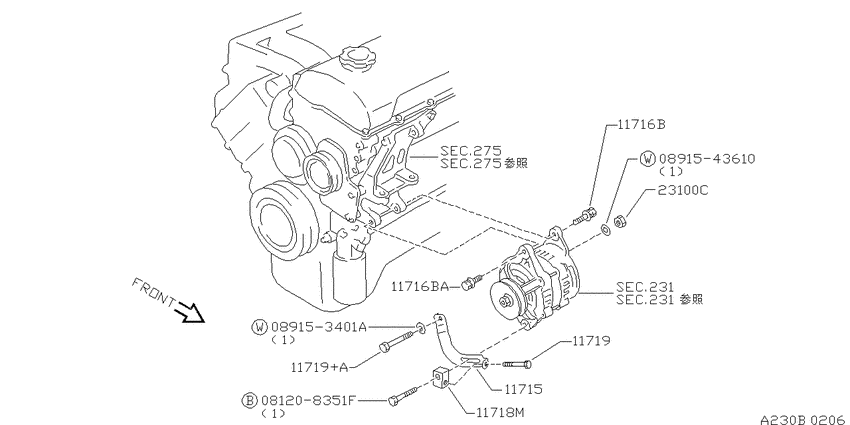

Alternator fitting (1991-08-01 ~ ; VE30DE) 9
| # | OEM | Part name |
|---|---|---|
| 11715 | 11715-97E00 | BAR-ADJUSTING,ALTERNATOR |
| 11716 | 11716-85E01 | BOLT |
| 11716 | 11716-97E00 | BOLT |
| 11718 | 11942-F6000 | Bracket-Alternator Adjust Bolt |
| 11718 | 11942-F600A | Bracket-adjust,alternator |
| 11719 | 11719-85E00 | STOPPER-ALTERNATOR NUT |
| 11719 | 11719-97E00 | STOPPER-ALTERNATOR NUT |
| 81208351 | 08120-8351F | Bolt-hexagon |
| 891543610 | 08915-43610 | ワツシヤ-,プレ-ン |
| OEM | Part name | Category |
|---|---|---|
| 08120-8351F | Bolt-hexagon | Alternator fitting (1991-08-01 ~ ; VE30DE) |
| 08915-43610 | ワツシヤ-,プレ-ン | Alternator fitting (1991-08-01 ~ ; VE30DE) |
| 11715-97E00 | BAR-ADJUSTING,ALTERNATOR | Alternator fitting (1991-08-01 ~ ; VE30DE) |
| 11716-85E01 | BOLT | Alternator fitting (1991-08-01 ~ ; VE30DE) |
| 11716-97E00 | BOLT | Alternator fitting (1991-08-01 ~ ; VE30DE) |
| 11719-85E00 | STOPPER-ALTERNATOR NUT | Alternator fitting (1991-08-01 ~ ; VE30DE) |
| 11719-97E00 | STOPPER-ALTERNATOR NUT | Alternator fitting (1991-08-01 ~ ; VE30DE) |
| 11942-F6000 | Bracket-Alternator Adjust Bolt | Alternator fitting (1991-08-01 ~ ; VE30DE) |
| 11942-F600A | Bracket-adjust,alternator | Alternator fitting (1991-08-01 ~ ; VE30DE) |
