Search › Model › J210E
J210E

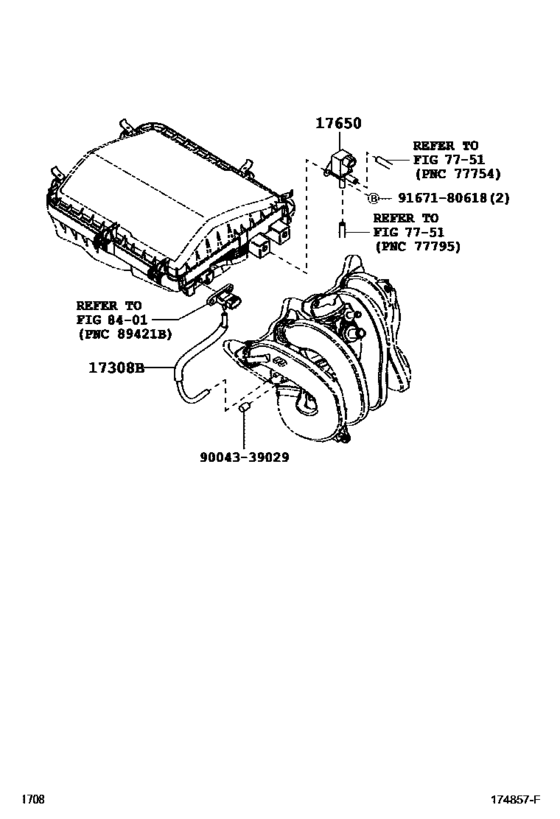

Vacuum Piping ([01.2006 - 05.2016] (0601-1605)) 4
| # | OEM | Part name |
|---|---|---|
| 17308 | 44750-B4030 | Hose Sub-Assy, Vacuum |
| 17650 | 17650-97207 | Valve Assy, Vacuum Switching |
| 9004339029 | 90043-39029 | Plug, No.1 |
| 9167180618 | 91671-80618 | BOLT FLANGE WWSHER |
| OEM | Part name | Category |
|---|---|---|
| 17650-97207 | Valve Assy, Vacuum Switching | Vacuum Piping ([01.2006 - 05.2016] (0601-1605)) |
| 44750-B4030 | Hose Sub-Assy, Vacuum | Vacuum Piping ([01.2006 - 05.2016] (0601-1605)) |
| 90043-39029 | Plug, No.1 | Vacuum Piping ([01.2006 - 05.2016] (0601-1605)) |
| 91671-80618 | BOLT FLANGE WWSHER | Vacuum Piping ([01.2006 - 05.2016] (0601-1605)) |
