J102E

Toyota CAMI · 2000 · 3,672 parts · 173 categories
J102E ×

← Back to categories

3,672 items

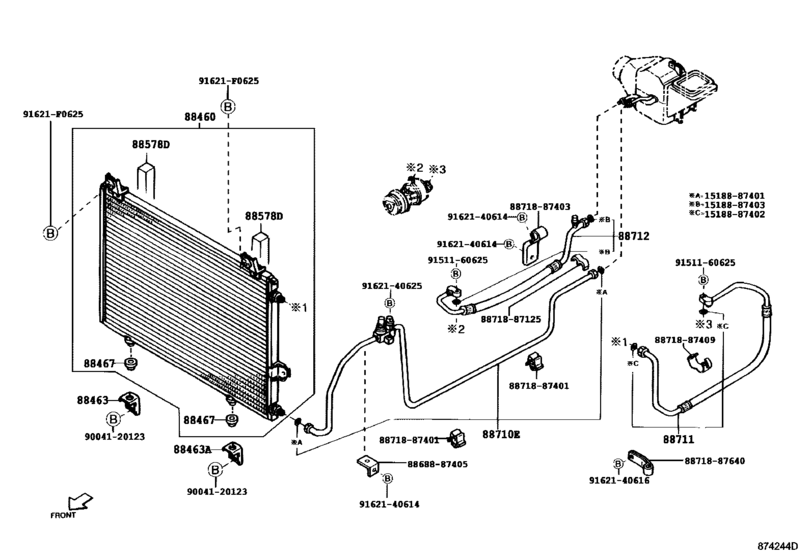

Heating & Air Conditioning - Cooler Piping ([05.2000 - ] (0005- )) 27
#OEMPart name
88460 88460-87403 Condenser Assy, Cooler
88460 88460-87408 Condenser Assy, Cooler
88463 88463-87404 Bracket, Cooler Condenser, No.1
88463 88463-87401 Bracket, Cooler Condenser, No.2
88467 88714-87401 Cushion, Cooler Condenser, No.1
88578 88578-87401 Packing, Cooler Pipe, No.1
88578 88578-87402 Packing, Cooler Pipe, No.1
88710 88710-87407 Tube & Accessory Assy, Air Conditioner
88710 88710-B4060 Tube & Accessory Assy, Air Conditioner
88710 88710-87409 Tube & Accessory Assy, Air Conditioner
88711 88711-87407 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-87405 Hose, Cooler Refrigerant Suction, No.1
1518887401 15188-87401 Ring, O
1518887402 15188-87402 Ring, O
1518887403 15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)
8868887405 88688-87405 Bracket, Cooler Diaphragm
8871887125 88718-87125 Clamp(For Cooler Refrigerant Pipe), No.1
8871887401 88718-87401 Pipe, Cooler Refrigerant Suction, No.2
8871887403 88718-87403 Pipe, Cooler Refrigerant Suction, No.2
8871887409 88718-87409 Pipe, Cooler Refrigerant Suction, No.2
8871887640 88718-87640 Clamp(For Cooler Refrigerant Pipe), No.5
9004120123 90041-20123 New Genuine Part
9151160625 91511-60625 Bolt(For Cylinder Head Cover)
9151160625 91511-J0625 Bolt(For Cylinder Head Cover)
9162140614 91621-40614 BOLT
9162140616 91621-40616 Step Cover Bolt
9162140625 91621-40625 Washer, Intake Air Connector Seal
