J102E

Toyota CAMI · 2000 · 3,672 parts · 173 categories

3,672 items

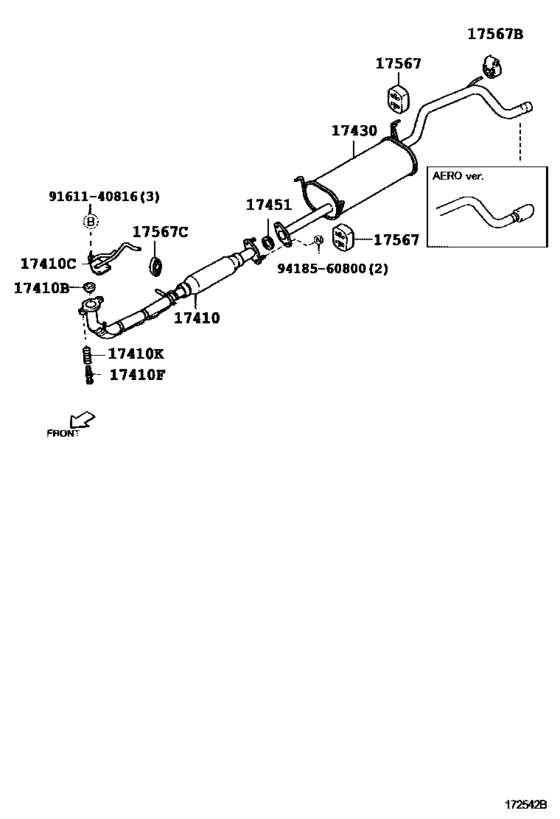

Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- )) 23

#	OEM	Part name
17410	17401-87408	Pipe Assy, Exhaust, Front
17410	17451-97501	Gasket, Exhaust Pipe
17410	17451-B1031	Gasket, Exhaust Pipe
17410	17451-97503	Gasket, Exhaust Pipe
17410	17571-87402	Bracket, Exhaust Pipe Front (For Front)
17410	17569-97201	Bolt Or Ring, Exhaust Pipe Front (For Front)
17410	17152-97201	Spring, Exhaust Pipe
17410	17152-97401	Spring, Exhaust Pipe
17430	17405-87411	Pipe Assy, Exhaust, Tail
17430	17405-87430	Pipe Assy, Exhaust, Tail
17430	17405-87407	Pipe Assy, Exhaust, Tail
17430	17405-87431	Pipe Assy, Exhaust, Tail
17430	17405-87408	Pipe Assy, Exhaust, Tail
17430	17405-87429	Pipe Assy, Exhaust, Tail
17430	17405-87428	Pipe Assy, Exhaust, Tail
17451	17451-87512	Gasket, Exhaust Pipe
17567	17567-87210	Cushion, Exhaust Pipe Support
17567	17567-B1010	Cushion, Exhaust Pipe Support
17567	17567-87208	Support, Exhaust Pipe, No.2
17567	17567-87503	Cushion, Exhaust Pipe Support, No.2
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9418560800	94185-60800	NUT

OEM	Part name	Category
17152-97201	Spring, Exhaust Pipe	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17152-97401	Spring, Exhaust Pipe	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17401-87408	Pipe Assy, Exhaust, Front	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17405-87407	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17405-87408	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17405-87411	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17405-87428	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17405-87429	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17405-87430	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17405-87431	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17451-87512	Gasket, Exhaust Pipe	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17451-97501	Gasket, Exhaust Pipe	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17451-97503	Gasket, Exhaust Pipe	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17451-B1031	Gasket, Exhaust Pipe	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17567-87208	Support, Exhaust Pipe, No.2	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17567-87210	Cushion, Exhaust Pipe Support	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17567-87503	Cushion, Exhaust Pipe Support, No.2	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17567-B1010	Cushion, Exhaust Pipe Support	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17569-97201	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
17571-87402	Bracket, Exhaust Pipe Front (For Front)	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
91611-B0816	Bolt	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))
94185-60800	NUT	Exhaust Pipe ([05.2000 - ] K3VE,K3VT (0005- ))

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 173
Collected: 2026-08-02
