J102E

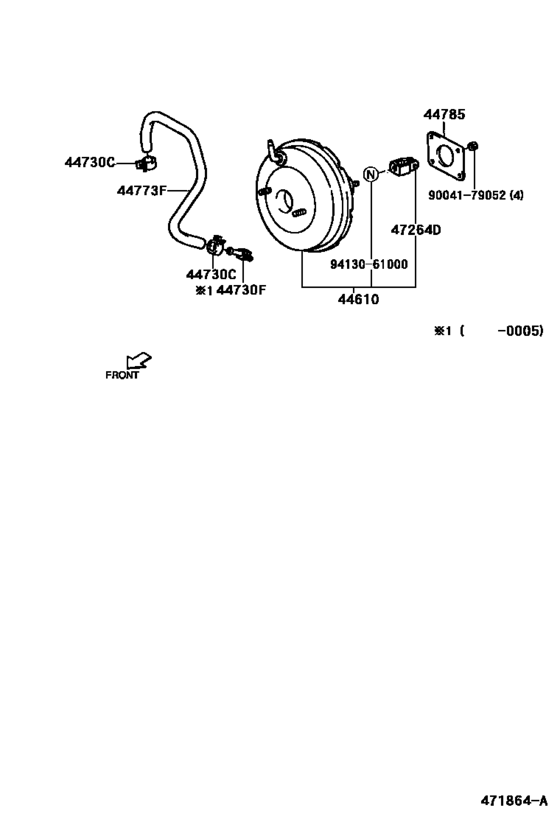

Brake Booster & Vacuum Tube ([05.1999 - ] (9905- )) 7
| # | OEM | Part name |
|---|---|---|
| 44610 | 44610-87401 | Booster Assy, Brake |
| 44730 | 90044-67246 | Clip(For Vacuum Hose) |
| 44773 | 44750-87405 | Hose, Union To Check Valve |
| 44785 | 47278-87703 | Gasket, Brake Booster |
| 47264 | 47264-87401 | Clevis, Brake Master Cylinder Push Rod |
| 9004179052 | 90041-79052 | NUT |
| 9413061000 | 94130-61000 | Nut(For Clutch Pedal Stopper) |
| OEM | Part name | Category |
|---|---|---|
| 44610-87401 | Booster Assy, Brake | Brake Booster & Vacuum Tube ([05.1999 - ] (9905- )) |
| 44750-87405 | Hose, Union To Check Valve | Brake Booster & Vacuum Tube ([05.1999 - ] (9905- )) |
| 47264-87401 | Clevis, Brake Master Cylinder Push Rod | Brake Booster & Vacuum Tube ([05.1999 - ] (9905- )) |
| 47278-87703 | Gasket, Brake Booster | Brake Booster & Vacuum Tube ([05.1999 - ] (9905- )) |
| 90041-79052 | NUT | Brake Booster & Vacuum Tube ([05.1999 - ] (9905- )) |
| 90044-67246 | Clip(For Vacuum Hose) | Brake Booster & Vacuum Tube ([05.1999 - ] (9905- )) |
| 94130-61000 | Nut(For Clutch Pedal Stopper) | Brake Booster & Vacuum Tube ([05.1999 - ] (9905- )) |
