Search › Model › J102E
J102E

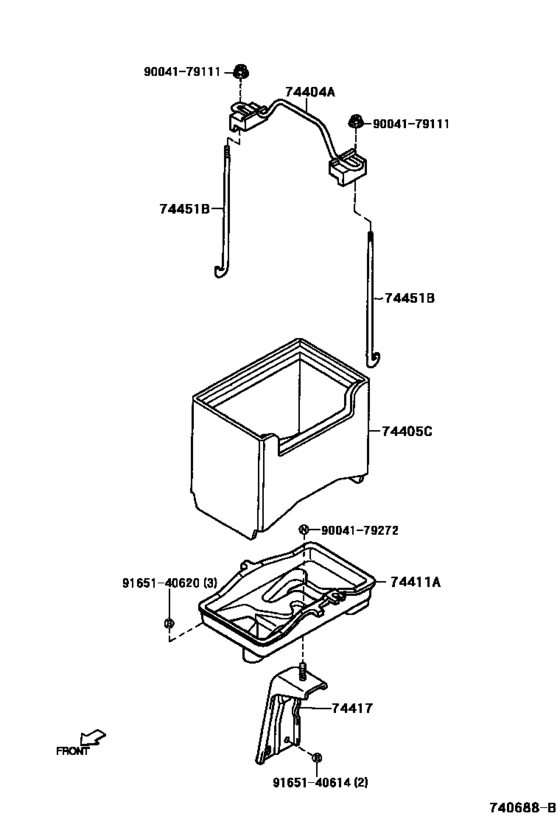

Battery Carrier ([05.1999 - ] (9905- )) 10
| # | OEM | Part name |
|---|---|---|
| 74404 | 74404-87202 | Clamp Sub-Assy, Battery |
| 74405 | 74405-87401 | Cover Sub-Assy,battery |
| 74411 | 74411-87402 | Tray, Battery |
| 74417 | 74417-87401 | Bracket, Battery Carrier |
| 74451 | 74451-87703 | Bolt, Battery Clamp |
| 9004179111 | 90041-79111 | Nut, Wing (For Battery Clamp Bolt) |
| 9004179272 | 90041-79272 | Direct |
| 9004179272 | 90179-06274 | Nut |
| 9165140614 | 91651-40614 | Bolt |
| 9165140620 | 91651-40620 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 74404-87202 | Clamp Sub-Assy, Battery | Battery Carrier ([05.1999 - ] (9905- )) |
| 74405-87401 | Cover Sub-Assy,battery | Battery Carrier ([05.1999 - ] (9905- )) |
| 74411-87402 | Tray, Battery | Battery Carrier ([05.1999 - ] (9905- )) |
| 74417-87401 | Bracket, Battery Carrier | Battery Carrier ([05.1999 - ] (9905- )) |
| 74451-87703 | Bolt, Battery Clamp | Battery Carrier ([05.1999 - ] (9905- )) |
| 90041-79111 | Nut, Wing (For Battery Clamp Bolt) | Battery Carrier ([05.1999 - ] (9905- )) |
| 90041-79272 | Direct | Battery Carrier ([05.1999 - ] (9905- )) |
| 90179-06274 | Nut | Battery Carrier ([05.1999 - ] (9905- )) |
| 91651-40614 | Bolt | Battery Carrier ([05.1999 - ] (9905- )) |
| 91651-40620 | BOLT | Battery Carrier ([05.1999 - ] (9905- )) |
