Search › Model › J100E

J100E

Toyota CAMI · 1999 · 2,985 parts · 161 categories

2,985 items

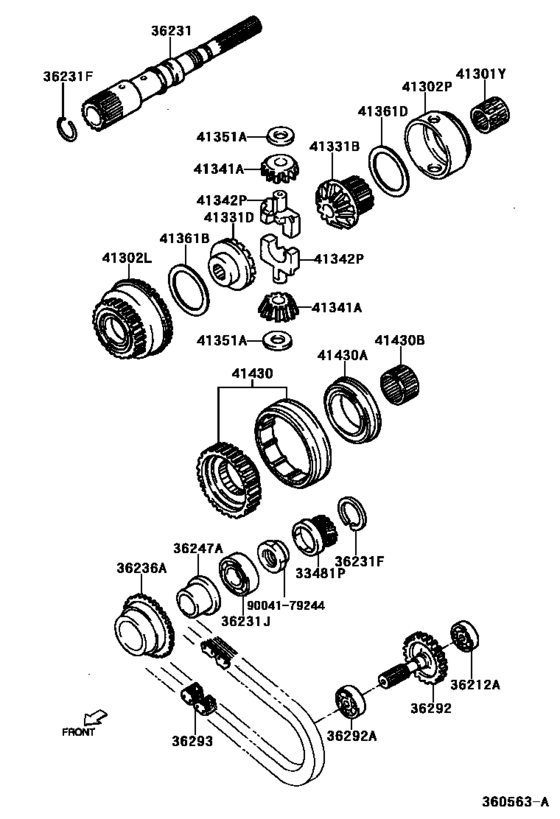

Transfer Gear ([05.1999 - ] (9905- )J10#) 30

#	OEM	Part name
33481	33481-87405	Gear, Speedometer Drive (For Transfer)
33481	33481-87401	Gear, Speedometer Drive (For Transfer)
33481	33481-87415	Gear, Speedometer Drive (For Transfer)
36212	97100-06203	Bearing, Radial Ball (For Transfer Input Gear)
36231	90045-20287	Ring, Shaft Snap (For Transfer Output Shaft)
36231	96150-02200	Ring, Shaft Snap (For Transfer Output Shaft)
36231	90043-63232	Bearing, Radial Ball (For Transfer Output Shaft Rear)
36231	36231-87401	Shaft, Transfer Output, Rear
36236	36232-87401	Gear, Transfer Front Drive
36247	36247-87401	Race, Transfer Front Drive Gear Bearing
36247	36288-B4010	Race, Transfer Thrust Bearing, No.1
36292	36234-87513	Sprocket, Transfer Driven
36292	97130-06005	Bearing (For Transfer Output Front Shaft)
36293	36293-87507	Chain, Transfer Front Drive
41301	90043-64102	Bearing, Needle Roller(For Differential Case)
41302	41312-87401	Case Sub-Assy, Differential, No.2
41302	41301-87401	Case Sub-Assy, Differential, No.1
41302	41302-87401	Case Sub-Assy, Differential, No.2
41302	41302-B4010	Case Sub-Assy, Differential, No.2
41331	41331-87402	Gear, Center Differential Side
41331	41331-87401	Gear, Differential Side, No.2
41331	41331-87406	Gear, Differential Side, No.2
41341	41341-87403	Pinion, Center Differential
41342	41342-87401	Shaft, Differential Pinion
41351	41351-87501	Washer, Center Differential Pinion Trust
41361	41361-87508	Washer, Center Differential Side Gear Thrust, No.1
41430	41430-87501	Hub, Transfer Clutch
41430	90043-63233	Bearing, Transfer Clutch Hub
41430	90043-64112	Needle Roller Bearing, Transfer Clutch Hub
9004179244	90041-79244	Nut(For Transfer Output Rear Shaft)

OEM	Part name	Category
33481-87401	Gear, Speedometer Drive (For Transfer)	Transfer Gear ([05.1999 - ] (9905- )J10#)
33481-87405	Gear, Speedometer Drive (For Transfer)	Transfer Gear ([05.1999 - ] (9905- )J10#)
33481-87415	Gear, Speedometer Drive (For Transfer)	Transfer Gear ([05.1999 - ] (9905- )J10#)
36231-87401	Shaft, Transfer Output, Rear	Transfer Gear ([05.1999 - ] (9905- )J10#)
36232-87401	Gear, Transfer Front Drive	Transfer Gear ([05.1999 - ] (9905- )J10#)
36234-87513	Sprocket, Transfer Driven	Transfer Gear ([05.1999 - ] (9905- )J10#)
36247-87401	Race, Transfer Front Drive Gear Bearing	Transfer Gear ([05.1999 - ] (9905- )J10#)
36288-B4010	Race, Transfer Thrust Bearing, No.1	Transfer Gear ([05.1999 - ] (9905- )J10#)
36293-87507	Chain, Transfer Front Drive	Transfer Gear ([05.1999 - ] (9905- )J10#)
41301-87401	Case Sub-Assy, Differential, No.1	Transfer Gear ([05.1999 - ] (9905- )J10#)
41302-87401	Case Sub-Assy, Differential, No.2	Transfer Gear ([05.1999 - ] (9905- )J10#)
41302-B4010	Case Sub-Assy, Differential, No.2	Transfer Gear ([05.1999 - ] (9905- )J10#)
41312-87401	Case Sub-Assy, Differential, No.2	Transfer Gear ([05.1999 - ] (9905- )J10#)
41331-87401	Gear, Differential Side, No.2	Transfer Gear ([05.1999 - ] (9905- )J10#)
41331-87402	Gear, Center Differential Side	Transfer Gear ([05.1999 - ] (9905- )J10#)
41331-87406	Gear, Differential Side, No.2	Transfer Gear ([05.1999 - ] (9905- )J10#)
41341-87403	Pinion, Center Differential	Transfer Gear ([05.1999 - ] (9905- )J10#)
41342-87401	Shaft, Differential Pinion	Transfer Gear ([05.1999 - ] (9905- )J10#)
41351-87501	Washer, Center Differential Pinion Trust	Transfer Gear ([05.1999 - ] (9905- )J10#)
41361-87508	Washer, Center Differential Side Gear Thrust, No.1	Transfer Gear ([05.1999 - ] (9905- )J10#)
41430-87501	Hub, Transfer Clutch	Transfer Gear ([05.1999 - ] (9905- )J10#)
90041-79244	Nut(For Transfer Output Rear Shaft)	Transfer Gear ([05.1999 - ] (9905- )J10#)
90043-63232	Bearing, Radial Ball (For Transfer Output Shaft Rear)	Transfer Gear ([05.1999 - ] (9905- )J10#)
90043-63233	Bearing, Transfer Clutch Hub	Transfer Gear ([05.1999 - ] (9905- )J10#)
90043-64102	Bearing, Needle Roller(For Differential Case)	Transfer Gear ([05.1999 - ] (9905- )J10#)
90043-64112	Needle Roller Bearing, Transfer Clutch Hub	Transfer Gear ([05.1999 - ] (9905- )J10#)
90045-20287	Ring, Shaft Snap (For Transfer Output Shaft)	Transfer Gear ([05.1999 - ] (9905- )J10#)
96150-02200	Ring, Shaft Snap (For Transfer Output Shaft)	Transfer Gear ([05.1999 - ] (9905- )J10#)
97100-06203	Bearing, Radial Ball (For Transfer Input Gear)	Transfer Gear ([05.1999 - ] (9905- )J10#)
97130-06005	Bearing (For Transfer Output Front Shaft)	Transfer Gear ([05.1999 - ] (9905- )J10#)
