J100E

Toyota CAMI · 1999 · 2,985 parts · 161 categories

← Back to categories

2,985 items

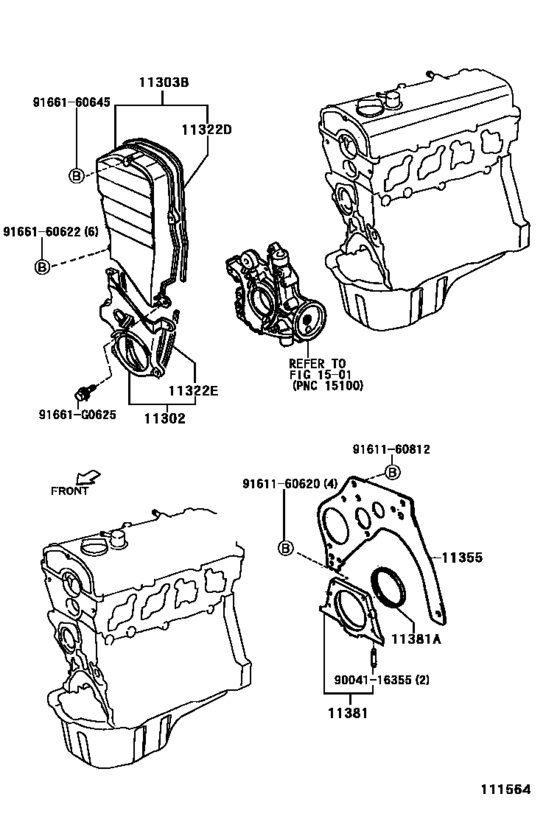

Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005)) 17

#	OEM	Part name
11302	11302-87103	Cover Sub-Assy, Timing Chain Or Belt
11303	11303-87101	Cover Sub-Assy, Timing Belt, No.2
11322	90043-03083	Gasket, Timing Belt Cover, No.1
11322	90043-03086	Gasket, Timing Belt Cover, No.1
11322	90043-03082	Gasket, Timing Belt Cover, No.2
11355	11355-87111	Plate, Rear End
11355	11355-87110	Plate, Rear End
11381	11309-87102	Retainer, Engine Rear Oil Seal
11381	90043-11230	Seal, Engine Rear Oil
11381	90043-11344	Seal, Engine Rear Oil
91661	91661-G0625	New Genuine Part
9004116355	90041-16355	New Genuine Part
9161160620	91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9166160622	91661-60622	New Genuine Part
9166160645	91661-60645	New Genuine Part

OEM	Part name	Category
11302-87103	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
11303-87101	Cover Sub-Assy, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
11309-87102	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
11355-87110	Plate, Rear End	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
11355-87111	Plate, Rear End	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
90041-16355	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
90043-03082	Gasket, Timing Belt Cover, No.2	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
90043-03083	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
90043-03086	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
90043-11230	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
90043-11344	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
91611-B0812	Bolt	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
91661-60622	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
91661-60645	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
91661-G0625	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1999 - 05.2000] (9905-0005))
