J100E

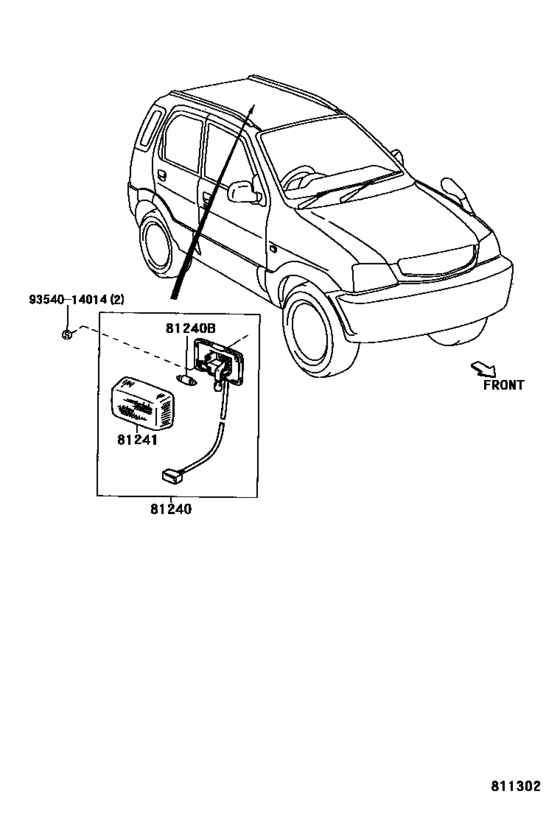

Interior Lamp ([05.1999 - ] (9905- )) 7
| # | OEM | Part name |
|---|---|---|
| 81205 | 81205-87701 | Lamp Sub-Assy, Ash Receptacle |
| 81240 | 81330-87403 | Lamp Assy, Room, No.1 |
| 81240 | 90049-51007 | Bulb, Room Lamp, No.1 |
| 81240 | 99132-13050 | Bulb(For Courtesy Lamp) |
| 81241 | 87814-87803 | Lens, Room Lamp, No.1 |
| 9004951035 | 90049-51035 | Bulb, Heater Control Indicator Lamp |
| 9354014014 | 93540-14014 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 81205-87701 | Lamp Sub-Assy, Ash Receptacle | Interior Lamp ([05.1999 - ] (9905- )) |
| 81330-87403 | Lamp Assy, Room, No.1 | Interior Lamp ([05.1999 - ] (9905- )) |
| 87814-87803 | Lens, Room Lamp, No.1 | Interior Lamp ([05.1999 - ] (9905- )) |
| 90049-51007 | Bulb, Room Lamp, No.1 | Interior Lamp ([05.1999 - ] (9905- )) |
| 90049-51035 | Bulb, Heater Control Indicator Lamp | Interior Lamp ([05.1999 - ] (9905- )) |
| 93540-14014 | Screw | Interior Lamp ([05.1999 - ] (9905- )) |
| 99132-13050 | Bulb(For Courtesy Lamp) | Interior Lamp ([05.1999 - ] (9905- )) |
