Search › Model › J100E
J100E

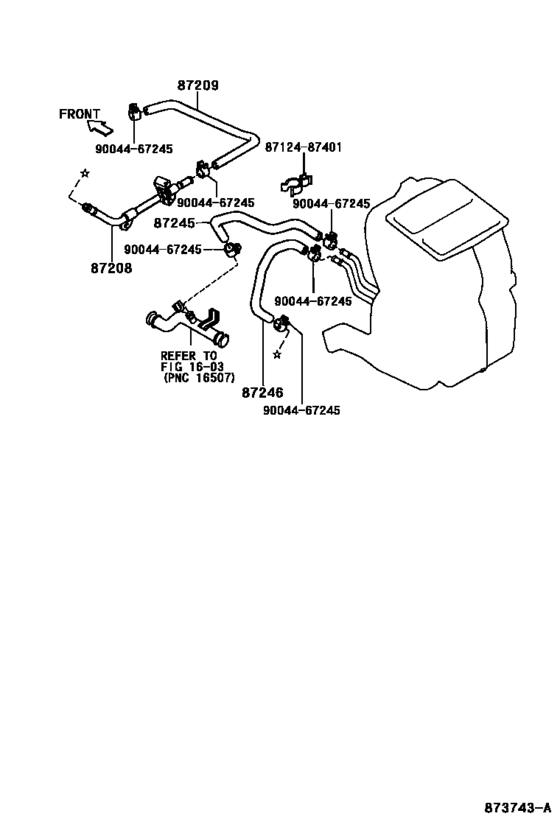

Heating & Air Conditioning - Water Piping ([05.1999 - 05.2000] (9905-0005)) 7
| # | OEM | Part name |
|---|---|---|
| 87208 | 87208-87401 | Pipe Sub-Assy, Heater Water |
| 87209 | 87242-87401 | Hose Sub-Assy, Water |
| 87245 | 87245-87402 | Hose, Heater Water, Inlet |
| 87246 | 87246-87401 | Hose, Heater Water, Outlet |
| 8712487401 | 87124-87401 | Clamp, Heater |
| 9004467245 | 90044-67245 | Clip(For Water By-Pass Hose No.2) |
| 9004467245 | 90044-67485 | Clip(For Water By-Pass Hose No.2) |
| OEM | Part name | Category |
|---|---|---|
| 87124-87401 | Clamp, Heater | Heating & Air Conditioning - Water Piping ([05.1999 - 05.2000] (9905-0005)) |
| 87208-87401 | Pipe Sub-Assy, Heater Water | Heating & Air Conditioning - Water Piping ([05.1999 - 05.2000] (9905-0005)) |
| 87242-87401 | Hose Sub-Assy, Water | Heating & Air Conditioning - Water Piping ([05.1999 - 05.2000] (9905-0005)) |
| 87245-87402 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([05.1999 - 05.2000] (9905-0005)) |
| 87246-87401 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([05.1999 - 05.2000] (9905-0005)) |
| 90044-67245 | Clip(For Water By-Pass Hose No.2) | Heating & Air Conditioning - Water Piping ([05.1999 - 05.2000] (9905-0005)) |
| 90044-67485 | Clip(For Water By-Pass Hose No.2) | Heating & Air Conditioning - Water Piping ([05.1999 - 05.2000] (9905-0005)) |
