Search › Model › J100E
J100E

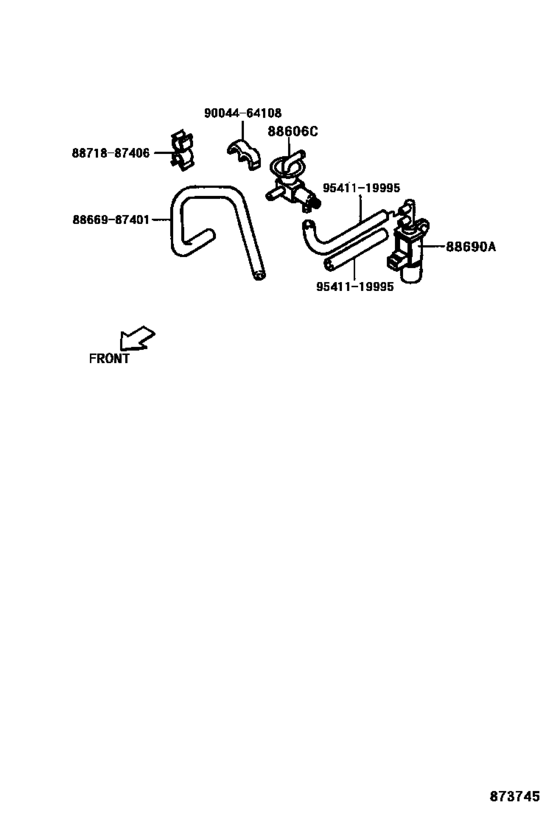

Heating & Air Conditioning - Vacuum Piping ([05.1999 - 05.2000] (9905-0005)) 7
| # | OEM | Part name |
|---|---|---|
| 88606 | 88606-87603 | Diaphragm Sub-Assy, Vacuum |
| 88690 | 88690-87401 | Valve Assy, Combination |
| 8866987401 | 88669-87401 | Hose, Cooler Air |
| 8871887406 | 88718-87406 | Clamp(For Oil Reservoir To Pump Hose) |
| 9004464108 | 90044-64108 | Clamp(For Vacuum Hose) |
| 9541119995 | 95411-19995 | Hose, Vaccum |
| 9541119995 | 90999-92004 | Hose, Vacuum, No.1 (For Front Drive Shift) |
| OEM | Part name | Category |
|---|---|---|
| 88606-87603 | Diaphragm Sub-Assy, Vacuum | Heating & Air Conditioning - Vacuum Piping ([05.1999 - 05.2000] (9905-0005)) |
| 88669-87401 | Hose, Cooler Air | Heating & Air Conditioning - Vacuum Piping ([05.1999 - 05.2000] (9905-0005)) |
| 88690-87401 | Valve Assy, Combination | Heating & Air Conditioning - Vacuum Piping ([05.1999 - 05.2000] (9905-0005)) |
| 88718-87406 | Clamp(For Oil Reservoir To Pump Hose) | Heating & Air Conditioning - Vacuum Piping ([05.1999 - 05.2000] (9905-0005)) |
| 90044-64108 | Clamp(For Vacuum Hose) | Heating & Air Conditioning - Vacuum Piping ([05.1999 - 05.2000] (9905-0005)) |
| 90999-92004 | Hose, Vacuum, No.1 (For Front Drive Shift) | Heating & Air Conditioning - Vacuum Piping ([05.1999 - 05.2000] (9905-0005)) |
| 95411-19995 | Hose, Vaccum | Heating & Air Conditioning - Vacuum Piping ([05.1999 - 05.2000] (9905-0005)) |
