J100E

Toyota CAMI · 1999 · 2,985 parts · 161 categories
J100E ×

← Back to categories

2,985 items

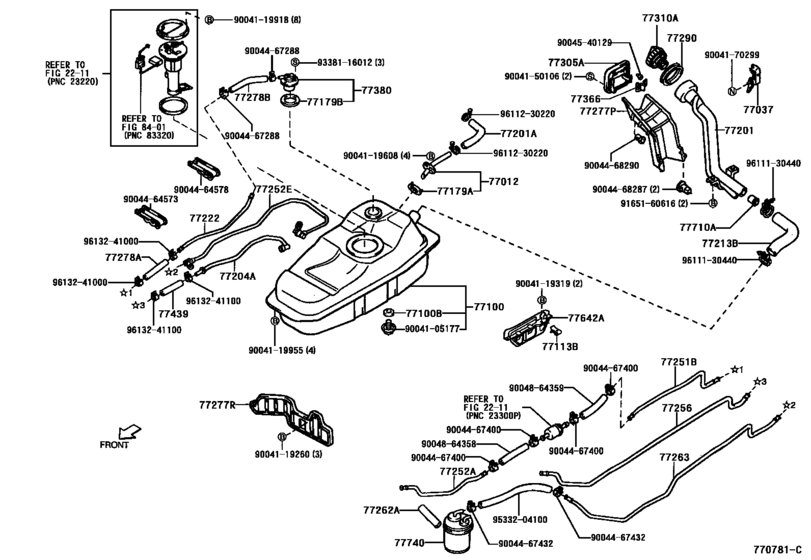

Fuel Tank & Tube ([05.1999 - 05.2000] (9905-0005)) 70
#OEMPart name
77012 77012-87401 Tube Sub-Assy, Fuel Tank Breather
77012 77012-87403 Tube Sub-Assy, Fuel Tank Breather
77037 77037-87501 Lock Sub-Assy, Fuel Filler Opening Lid
77100 77001-87401 Tank Assy, Fuel
77100 77001-87404 Tank Assy, Fuel
77100 90044-30291 Gasket(For Fuel Tank)
77113 77113-87401 Plate, Fuel Tank Side
77179 77179-87401 Gasket, Fuel Tank Breather Tube
77179 77179-87402 Gasket, Fuel Tank Evaporation Vent Tube
77201 77201-87405 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-B4031 Pipe Sub-Assy, Fuel Tank Inlet
77201 90048-64313 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77201 90044-45969 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77204 77204-87401 Tube, Fuel Tank Return
77213 77213-87401 Hose, Fuel Tank To Filler Pipe
77213 77213-87402 Hose, Fuel Tank To Filler Pipe
77222 77222-87401 Tube, Fuel Tank Breather, No.2
77251 77251-87401 Tube, Fuel Main
77252 77252-87401 Tube, Fuel Main, No.2
77252 77203-87401 Tube, Fuel Main, No.2 (For Front Fuel Main)
77256 77256-87401 Tube, Fuel Emission, No.3
77256 77256-87402 Tube, Fuel Emission, No.3
77262 90044-47043 Hose, Fuel, No.1(For Fuel Tank To Canister Center Tube)
77263 77263-87402 Tube, Fuel Tank To Canister, No.3
77277 77277-87401 Protector(For Fuel Return Hose)
77277 77631-87401 Protector, Fuel Tank Filler Pipe
77278 90048-64356 Hose, Fuel, No.1 (For Return Tube, No.2)
77278 95333-04020 Hose, Lpg Injector
77278 90048-64182 Hose, Fuel, No.2 (For Return Tube, No.2)
77278 90044-45872 Hose, Fuel, No.2 (For Return Tube, No.2)
77290 77293-87401 Shield Assy, Fuel Tank Filler Pipe
77290 77291-B2021 Shield, Fuel Tank Filler Pipe
77305 77305-87401 Lid Sub-Assy, Fuel Filler Opening
77310 77310-97201 Cap Assy, Fuel Tank
77310 77310-97402 Cap Assy, Fuel Tank
77366 77366-87203 Spring, Fuel Filler Opening Lid Hinge
77380 77380-87401 Valve Assy, Fuel Cut Off
77439 90048-64271 Hose, Fuel Return
77439 90044-48289 Hose, Fuel Return
77642 77642-87401 Protector, Fuel Tank, No.2
77710 77710-87401 Valve Assy, Fuel Tank Solenoid Valve Main
77740 77740-87401 Canister Assy, Charcoal
9004105177 90041-05177 Plug(For Fuel Tank)
9004119260 90041-19260 New Genuine Part
9004119319 90041-19319 New Genuine Part
9004119608 90041-19608 New Genuine Part
9004119918 90041-19918 New Genuine Part
9004119918 93381-15010 SCREW
9004119955 90041-19955 New Genuine Part
9004150106 90041-50106 New Genuine Part
9004170299 90041-70299 New Genuine Part
9004464573 90044-64573 New Genuine Part
9004464578 90044-64578 New Genuine Part
9004467288 90044-67288 CLIP
9004467400 90044-67400 Clip(For Fuel Pump Hose)
9004467432 90044-67432 New Genuine Part
9004468287 90044-68287 New Genuine Part
9004468290 90044-68290 New Genuine Part
9004540129 90045-40129 Cushion(For Fuel Inlet Box Cover)
9004864358 90048-64358 New Genuine Part
9004864358 90048-64359 New Genuine Part
9165160616 91651-60616 BOLT
9338116012 93381-16012 Screw
9533204100 95332-04100 New Genuine Part
9611130440 96111-30440 Clamp (For Fuel Filler Pipe)
9611230220 96112-30220 Clamp Or Clip, Hose(For Water By-Pass Hose)
9611230220 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
9613241000 96132-41000 Clip, No.1(For Idle-Up Hose)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
