Search › Model › J10
J10

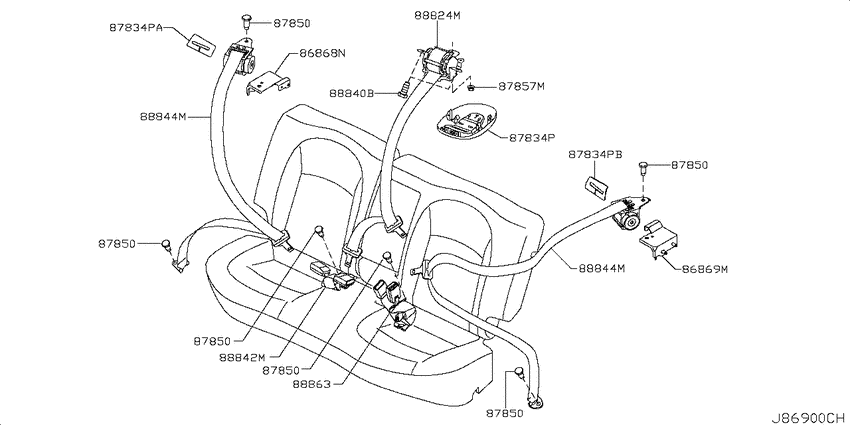

Rear seat belt (2007-12-01 ~ ; CTR 3PT; 5H/B) 8
| # | OEM | Part name |
|---|---|---|
| 86868 | 86868-JD00B | Bracket Assy-Shoulder Belt, Rh |
| 86869 | 86869-JD00B | Bracket Assy-Shoulder Belt, Lh |
| 87834 | 87835-JD10B | Finisher-Seat Belt |
| 87857 | 01225-N0031 | Nut |
| 88824 | 88854-JD000 | Belt Assy-Rear Seat Tongue |
| 88840 | 01121-00Q1C | Bolt |
| 88842 | 88862-JD000 | Belt Assy-Rear Seat Buckle |
| 88863 | 88863-JD000 | Belt Assy-Rear Buckle & Tongue |
| OEM | Part name | Category |
|---|---|---|
| 01121-00Q1C | Bolt | Rear seat belt (2007-12-01 ~ ; CTR 3PT; 5H/B) |
| 01225-N0031 | Nut | Rear seat belt (2007-12-01 ~ ; CTR 3PT; 5H/B) |
| 86868-JD00B | Bracket Assy-Shoulder Belt, Rh | Rear seat belt (2007-12-01 ~ ; CTR 3PT; 5H/B) |
| 86869-JD00B | Bracket Assy-Shoulder Belt, Lh | Rear seat belt (2007-12-01 ~ ; CTR 3PT; 5H/B) |
| 87835-JD10B | Finisher-Seat Belt | Rear seat belt (2007-12-01 ~ ; CTR 3PT; 5H/B) |
| 88854-JD000 | Belt Assy-Rear Seat Tongue | Rear seat belt (2007-12-01 ~ ; CTR 3PT; 5H/B) |
| 88862-JD000 | Belt Assy-Rear Seat Buckle | Rear seat belt (2007-12-01 ~ ; CTR 3PT; 5H/B) |
| 88863-JD000 | Belt Assy-Rear Buckle & Tongue | Rear seat belt (2007-12-01 ~ ; CTR 3PT; 5H/B) |
