Search › Model › HZJ77

HZJ77

Toyota LAND-CRUISER · 1990 · 5,946 parts · 232 categories

5,946 items

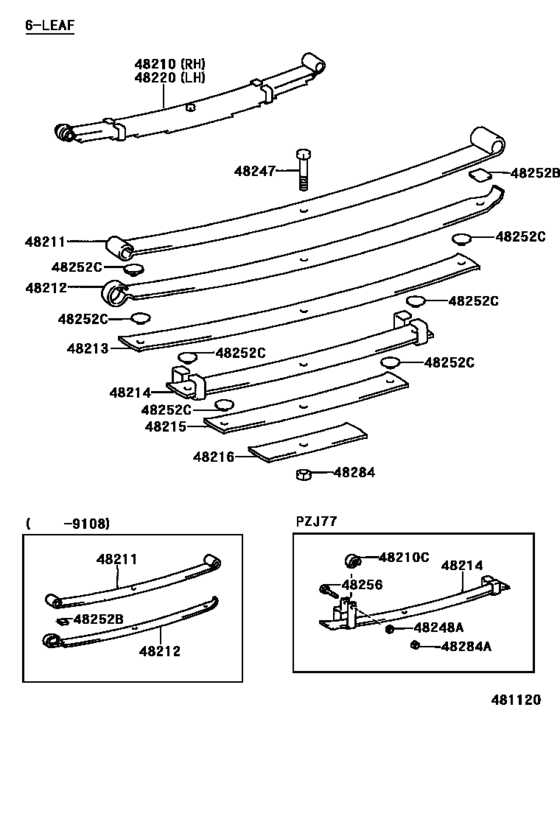

Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#) 21

#	OEM	Part name
48210	48210-60761	Spring Assy, Rear Rh
48210	48210-60880	Spring Assy, Rear Rh
48211	48211-60761	Leaf, Rear Spring, No.1
48211	48211-60880	Leaf, Rear Spring, No.1
48212	48212-60761	Leaf, Rear Spring, No.2
48212	48212-60880	Leaf, Rear Spring, No.2
48213	48202-60880	Leaf, Rear Spring, No.3
48213	48213-60760	Leaf, Rear Spring, No.3
48214	48202-60760	Leaf, Rear Spring, No.4
48214	48214-60880	Leaf, Rear Spring, No.4
48215	48203-60880	Leaf, Rear Spring, No.5
48215	48215-60760	Leaf, Rear Spring, No.5
48216	48216-60760	Leaf, Rear Spring, No.6
48216	48216-60880	Leaf, Rear Spring, No.6
48220	48210-60771	Spring Assy, Rear Lh
48220	48210-60890	Spring Assy, Rear Lh
48247	48289-60010	Bolt, Front Spring, Center
48248	48148-37010	Washer(For Rear Spring Clip Bolt)
48252	48154-60230	Silencer, Front Spring, No.2
48256	48156-60742	Bolt, Hexagon(For Rear Spring Clip Set)
48284	48284-60062	Nut, Front Spring Center Bolt

OEM	Part name	Category
48148-37010	Washer(For Rear Spring Clip Bolt)	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48154-60230	Silencer, Front Spring, No.2	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48156-60742	Bolt, Hexagon(For Rear Spring Clip Set)	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48202-60760	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48202-60880	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48203-60880	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48210-60761	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48210-60771	Spring Assy, Rear Lh	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48210-60880	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48210-60890	Spring Assy, Rear Lh	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48211-60761	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48211-60880	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48212-60761	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48212-60880	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48213-60760	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48214-60880	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48215-60760	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48216-60760	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48216-60880	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48284-60062	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
48289-60010	Bolt, Front Spring, Center	Rear Spring & Shock Absorber ([01.1990 - ] (9001- )FJ75,HZJ70,73,75,77,PZJ7#)
