Search › Model › HZJ77

HZJ77

Toyota LAND-CRUISER · 1990 · 5,946 parts · 232 categories

5,946 items

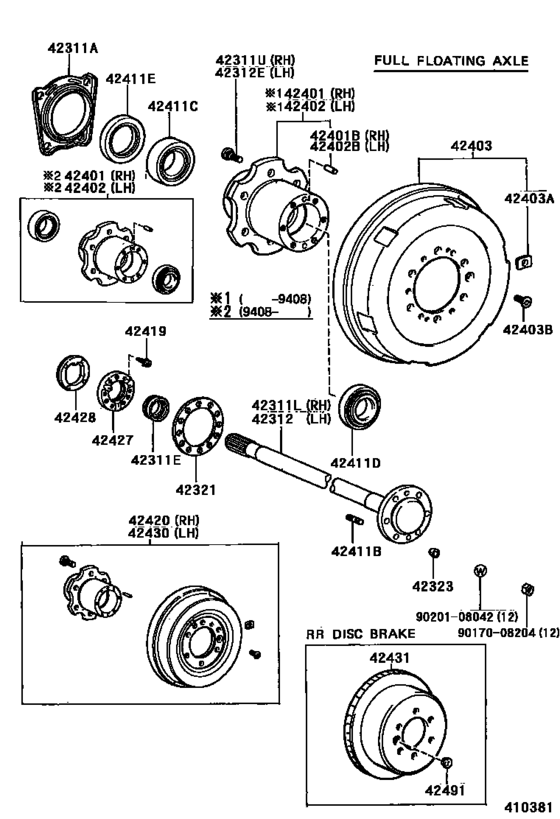

Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#) 52

#	OEM	Part name
42311	90313-93001	Seal, Oil (For Rear Axle Shaft)
42311	90310-35001	Seal, Oil (For Rear Axle Shaft)
42311	90310-36003	Seal, Oil (For Rear Axle Shaft Outer)
42311	90311-47001	Seal, Oil (For Rear Axle Shaft)
42311	42311-60052	Shaft, Rear Axle
42311	42311-60053	Shaft, Rear Axle, Rh
42311	42311-60062	Shaft, Rear Axle, Rh
42311	42311-60080	Shaft, Rear Axle
42311	42311-60081	Shaft, Rear Axle, Rh
42311	90942-02052	Bolt, Hub (For Rear Axle)
42312	42312-60042	Shaft, Rear Axle
42312	42312-60043	Shaft, Rear Axle, Lh
42312	42312-60072	Shaft, Rear Axle, Lh
42321	43422-60040	Gasket, Rear Axle Shaft
42323	42323-60010	Washer, Cone (For Axle Shaft)
42401	42401-60010	Hub, Rear Axle, Rh
42401	42401-69016	Hub, Rear Axle, Rh
42401	42401-69015	Hub, Rear Axle, Rh
42401	90250-07057	Pin, Straight (For Axle Hub)
42403	42431-60070	Drum Sub-Assy, Rear Brake
42403	42431-60150	Drum Sub-Assy, Rear Brake
42403	90937-01117	Piece, Balance (For Rear Brake Drum)
42403	90937-01118	Piece, Balance (For Rear Brake Drum)
42403	90937-01119	Piece, Balance (For Rear Brake Drum)
42403	90937-01195	Piece, Balance (For Rear Brake Drum)
42403	90937-01196	Piece, Balance (For Rear Brake Drum)
42403	90937-01197	Piece, Balance (For Rear Brake Drum)
42403	90937-01408	Piece, Balance (For Rear Brake Drum)
42403	90937-01409	Piece, Balance (For Rear Brake Drum)
42403	90937-01410	Piece, Balance (For Rear Brake Drum)
42403	90937-01411	Piece, Balance (For Rear Brake Drum)
42403	90937-01412	Piece, Balance (For Rear Brake Drum)
42403	90937-01413	Piece, Balance (For Rear Brake Drum)
42403	90937-01414	Piece, Balance (For Rear Brake Drum)
42403	90937-01415	Piece, Balance (For Rear Brake Drum)
42403	90937-01416	Piece, Balance (For Rear Brake Drum)
42403	90937-01417	Piece, Balance (For Rear Brake Drum)
42403	90937-01418	Piece, Balance (For Rear Brake Drum)
42403	90937-01419	Piece, Balance (For Rear Brake Drum)
42403	90113-10003	Bolt (For Rear Brake Drum Setting)
42411	90116-08325	Bolt, Stud (For Axle Hub)
42411	90080-36064	Bearing (For Rear Axle Shaft Inner)
42411	90368-49084	Bearing (For Axle Shaft Inner)
42411	90080-36067	Bearing (For Rear Axle Shaft Outer)
42411	90368-45087	Bearing (For Axle Shaft Outer)
42411	90311-62001	Seal, Oil
42419	42419-60011	Screw, Rear Axle Bearing Lock Nut
42420	42420-60140	Hub (Or Shaft) & Brake Drum Rear Axle, Rh
42427	42427-60021	Nut, Rear Axle Bearing Lock
42428	42428-60011	Plate, Rear Axle Lock Nut
9017008204	90170-08204	Nut (For Propeller Shaft)
9020108042	90201-08042	WASHER

OEM	Part name	Category
42311-60052	Shaft, Rear Axle	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42311-60053	Shaft, Rear Axle, Rh	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42311-60062	Shaft, Rear Axle, Rh	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42311-60080	Shaft, Rear Axle	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42311-60081	Shaft, Rear Axle, Rh	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42312-60042	Shaft, Rear Axle	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42312-60043	Shaft, Rear Axle, Lh	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42312-60072	Shaft, Rear Axle, Lh	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42323-60010	Washer, Cone (For Axle Shaft)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42401-60010	Hub, Rear Axle, Rh	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42401-69015	Hub, Rear Axle, Rh	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42401-69016	Hub, Rear Axle, Rh	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42419-60011	Screw, Rear Axle Bearing Lock Nut	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42420-60140	Hub (Or Shaft) & Brake Drum Rear Axle, Rh	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42427-60021	Nut, Rear Axle Bearing Lock	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42428-60011	Plate, Rear Axle Lock Nut	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42431-60070	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
42431-60150	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
43422-60040	Gasket, Rear Axle Shaft	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90080-36064	Bearing (For Rear Axle Shaft Inner)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90080-36067	Bearing (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90113-10003	Bolt (For Rear Brake Drum Setting)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90116-08325	Bolt, Stud (For Axle Hub)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90170-08204	Nut (For Propeller Shaft)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90201-08042	WASHER	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90250-07057	Pin, Straight (For Axle Hub)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90310-35001	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90310-36003	Seal, Oil (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90311-47001	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90311-62001	Seal, Oil	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90313-93001	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90368-45087	Bearing (For Axle Shaft Outer)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90368-49084	Bearing (For Axle Shaft Inner)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01117	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01118	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01119	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01195	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01196	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01197	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01408	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01409	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01410	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01411	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01412	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01413	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01414	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01415	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01416	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01417	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01418	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90937-01419	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)
90942-02052	Bolt, Hub (For Rear Axle)	Rear Axle Shaft & Hub ([01.1990 - 08.1999] (9001-9908)FJ75,HZJ7#,PZJ7#)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 232
Collected: 2026-08-02
