Search › Model › HZJ75

HZJ75

Toyota LAND-CRUISER · 1990 · 5,380 parts · 247 categories

5,380 items

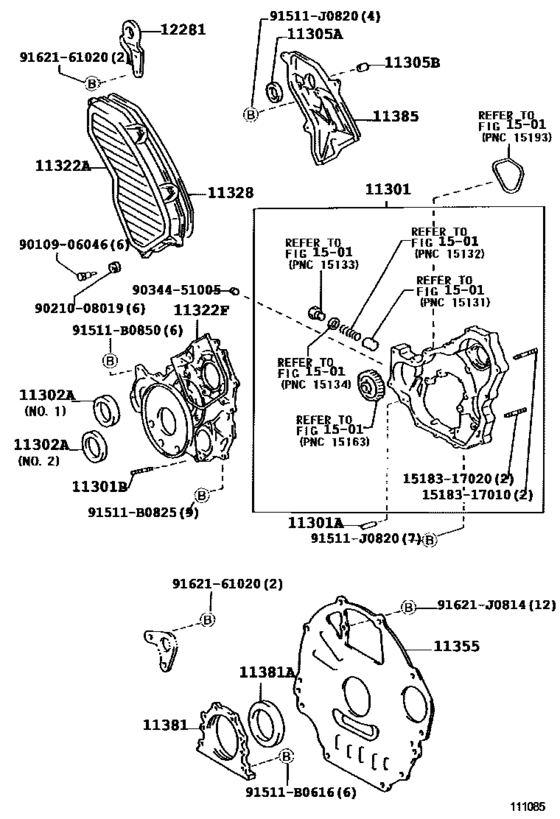

Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ) 45

#	OEM	Part name
11301	11301-17010	Case Sub-Assy, Timing Gear
11301	11301-17011	Case Sub-Assy, Timing Gear
11301	11301-17020	Case Sub-Assy, Timing Gear
11301	11301-17021	Case Sub-Assy, Timing Gear
11301	11301-17030	Case Sub-Assy, Timing Gear
11301	11301-17050	Case Sub-Assy, Timing Gear
11301	90250-08054	Pin, Straight
11301	90116-10160	Bolt,stud(For Timing Gear Case)
11302	90311-58006	Seal, Type T Oil(For Injection Pump)
11302	90311-58007	Seal, Oil(For Timing Chain Or Belt Cover)
11305	90311-32017	Seal, Oil(For Oil Seal Retainer, No.2)
11305	90311-32020	Oil Seal
11305	90311-32019	Seal, Oil(For Camshaft Setting)
11305	90253-11021	Pin, Ring
11322	11321-17010	Cover, Timing Belt, No.1
11322	11321-17040	Cover, Timing Belt, No.1
11322	11322-17010	Cover, Timing Gear, No.2
11322	11322-17011	Cover, Timing Gear, No.2
11322	11322-17030	Cover, Timing Gear, No.2
11328	11328-17010	Gasket, Timing Gear Or Chain Cover
11328	11328-17030	Gasket, Timing Gear Or Chain Cover
11328	11328-43040	Gasket, Timing Gear Or Chain Cover
11355	11355-17010	Plate, Rear End
11355	11355-17011	Plate, Rear End
11381	11381-17010	Retainer, Engine Rear Oil Seal
11381	90311-95008	Seal, Engine Rear Oil
11385	11382-17010	Retainer, Camshaft Oil Seal
11385	11382-17030	Retainer, Camshaft Oil Seal
12281	12281-17020	Hanger, Engine, No.1
12281	12281-17021	Hanger, Engine, No.1
12281	12281-17030	Hanger, Engine, No.1
91511	91511-B0616	BOLT, FLANGE
91511	90080-10164	BOLT, FLANGE
91511	91511-B0825	Bolt (For Transfer Stiffener Plate)
91511	91511-B0850	Bolt
91511	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
91621	91621-J0814	Bolt (For Transmission Control Cable Bracket)
1518317010	15183-17010	Bolt, Union(for Oil Pump)
1518317020	15183-17020	Bolt, Union(for Oil Pump)
9010906046	90109-06046	BOLT
9021008019	90210-08019	WASHER
9021008019	90080-21002	WASHER
9034451005	90344-51005	Plug, W/head Taper Screw, No.1
9162161020	91621-61020	Bolt(For Transaxle & Engine Setting)
9162161020	91622-B1020	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
11301-17010	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11301-17011	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11301-17020	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11301-17021	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11301-17030	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11301-17050	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11321-17010	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11321-17040	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11322-17010	Cover, Timing Gear, No.2	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11322-17011	Cover, Timing Gear, No.2	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11322-17030	Cover, Timing Gear, No.2	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11328-17010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11328-17030	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11328-43040	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11355-17010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11355-17011	Plate, Rear End	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11381-17010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11382-17010	Retainer, Camshaft Oil Seal	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
11382-17030	Retainer, Camshaft Oil Seal	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
12281-17020	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
12281-17021	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
12281-17030	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
15183-17010	Bolt, Union(for Oil Pump)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
15183-17020	Bolt, Union(for Oil Pump)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90080-10164	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90080-21002	WASHER	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90109-06046	BOLT	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90116-10160	Bolt,stud(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90210-08019	WASHER	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90250-08054	Pin, Straight	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90253-11021	Pin, Ring	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90311-32017	Seal, Oil(For Oil Seal Retainer, No.2)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90311-32019	Seal, Oil(For Camshaft Setting)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90311-32020	Oil Seal	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90311-58006	Seal, Type T Oil(For Injection Pump)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90311-58007	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90311-95008	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
90344-51005	Plug, W/head Taper Screw, No.1	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
91511-B0616	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
91511-B0850	Bolt	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
91621-61020	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
91621-J0814	Bolt (For Transmission Control Cable Bracket)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
91622-B1020	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([05.1998 - ] (9805- )1HZ)
