Search › Model › HZJ75

HZJ75

Toyota LAND-CRUISER · 1990 · 5,380 parts · 247 categories
HZJ75 ×

← Back to categories

5,380 items

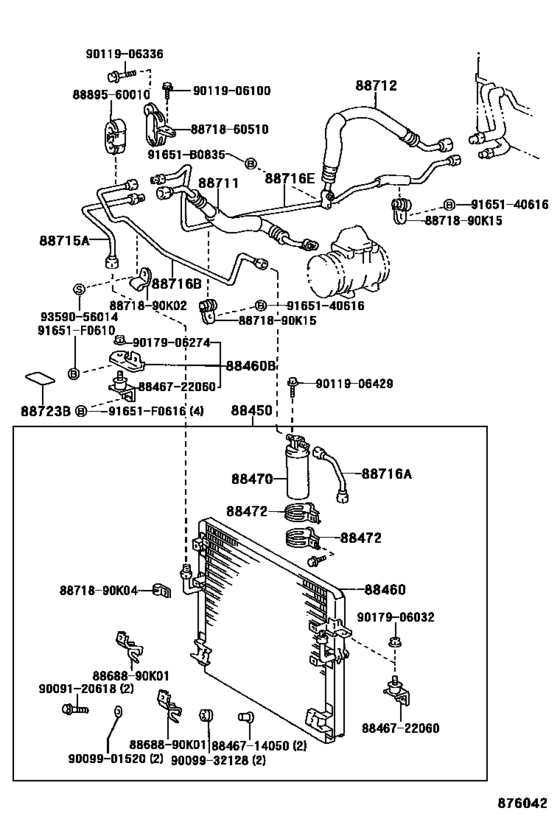

Heating & Air Conditioning - Cooler Piping ([01.1990 - 08.1999] MAKER OPTION (9001-9201)FJ7#..LHD ; (9001-9401)PZJ70,75..LHD ; (9001-9908)HZJ70,75..LHD) 36
#OEMPart name
88460 88460-60190 Condenser Assy, Cooler
88460 88409-60020 Bracket, Cooler Condenser, No.1
88470 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-60090 Bracket, Receiver Tank, No.1
88711 88711-60300 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-60550 Hose, Cooler Refrigerant Suction, No.1
88715 88715-60100 Pipe, Cooler Refrigerant Discharge, A
88716 88716-6A290 Pipe, Cooler Refrigerant Liquid, A
88716 88716-6A240 Pipe, Cooler Refrigerant Liquid, B
88716 88716-6A250 Pipe, Cooler Refrigerant Liquid, E
88723 88723-20040 Label, Cooler Service Caution
91651 91651-B0835 BOLT
91651 91651-F0610 New Genuine Part
91651 91651-F0616 BOLT
8868890 88688-90K01 Bracket, Cooler Condenser, No.2
8871890 88718-90K02 Pipe, Cooler Refrigerant Suction, No.2
8871890 88718-90K04 Pipe, Cooler Refrigerant Suction, No.2
8871890 88718-90K15 Pipe, Cooler Refrigerant Suction, No.2
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8846722060 88467-22060 Cushion, Cooler Condenser, No.1
8871860510 88718-60510 Pipe, Cooler Refrigerant Suction, No.2
8889560010 88895-60010 Holder, Fuse
9009120618 90091-20618 New Genuine Part
9009901520 90099-01520 New Genuine Part
9009932128 90099-32128 Grommet
9011906100 90119-06100 BOLT
9011906336 90119-06336 SCREW
9011906429 90119-06429 New Genuine Part
9011906429 90119-06553 New Genuine Part
9011906429 91651-F0625 BOLT WWASHER
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9359056014 93590-56014 New Genuine Part
Source
Public OEM parts-catalog data
Variants
1 / 35
Category
247
Collected
2026-08-02
