Search › Model › HZJ75

HZJ75

Toyota LAND-CRUISER · 1990 · 5,380 parts · 247 categories

5,380 items

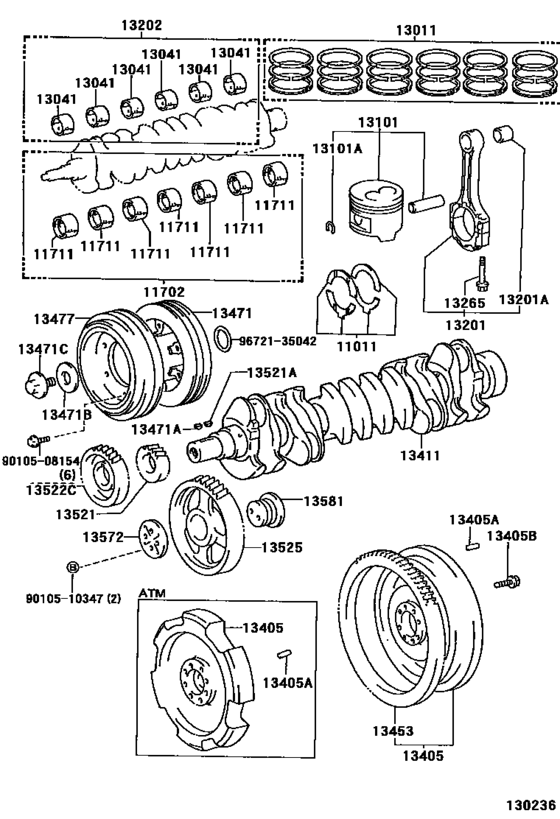

Crankshaft & Piston ([01.1990 - ] (9001- )1HZ) 70

#	OEM	Part name
11011	11011-17010	Washer Set, Crankshaft Thrust
11702	11704-17010	Bearing Set, Crankshaft
11702	11704-17011	Bearing Set, Crankshaft (US 0.25)
11702	11705-17010	Bearing Set, Crankshaft 0.5
11702	11705-17011	Bearing Set, Crankshaft (US 0.50)
11711	11701-17010-02	Bearing, Crankshaft
11711	11701-17011-02	Bearing, Crankshaft
11711	11701-17010-03	Bearing, Crankshaft
11711	11701-17011-03	Bearing, Crankshaft
11711	11701-17010-04	Bearing, Crankshaft
11711	11701-17011-04	Bearing, Crankshaft
11711	11701-17010-05	Bearing, Crankshaft
11711	11701-17011-05	Bearing, Crankshaft
11711	11701-17010-06	Bearing, Crankshaft
11711	11701-17011-06	Bearing, Crankshaft
13011	13011-17020	Ring Set, Piston
13011	13011-17030	Ring Set, Piston (STD)
13011	13013-17020	Ring Set, Piston
13011	13013-17030	Ring Set, Piston (OS 0.50)
13041	13041-17010-02	Bearing, Connecting Rod
13041	13041-17011-02	Bearing, Connecting Rod
13041	13041-17010-03	Bearing, Connecting Rod
13041	13041-17011-03	Bearing, Connecting Rod
13041	13041-17010-04	Bearing, Connecting Rod
13041	13041-17011-04	Bearing, Connecting Rod
13041	13041-17010-05	Bearing, Connecting Rod
13041	13041-17011-05	Bearing, Connecting Rod
13041	13041-17010-06	Bearing, Connecting Rod
13041	13041-17011-06	Bearing, Connecting Rod
13101	13101-17010-01	Piston Sub-Assy, W/pin
13101	13101-17010-02	Piston Sub-Assy, W/pin
13101	13101-17010-03	Piston Sub-Assy, W/pin
13101	13101-17100-01	Piston Sub-Assy, W/pin
13101	13101-17100-02	Piston Sub-Assy, W/pin
13101	13101-17100-03	Piston Sub-Assy, W/pin
13101	13103-17010	Piston Sub-Assy, W/pin (0.50)
13101	13103-17100	Piston Sub-Assy, W/pin
13101	90521-32004	Ring, Hole Snap(For Piston Pin)
13201	13201-17010	Rod Sub-Assy, Connecting
13201	90999-73126	Bush(For Connecting Rod Small End)
13202	13204-17010	Bearing Set, Connecting Rod (U/S 0.25)
13202	13204-17011	Bearing Set, Connecting Rod (US 0.25)
13202	13205-17010	Bearing Set, Connecting Rod (U/S 0.50)
13202	13205-17011	Bearing Set, Connecting Rod (US 0.50)
13265	13265-17010	Bolt, Connecting Rod
13405	13405-17010	Flywheel Sub-Assy
13405	90250-10192	Pin, Straight(For Timing Gear Cover Set)
13405	90105-12169	Bolt, Flywheel Setting
13411	13411-17010	Crankshaft
13411	13411-17012	Crankshaft
13411	90311-95008	Seal, Engine Rear Oil
13411	13411-17011	Crankshaft
13453	13453-17010	Gear, Flywheel Ring
13471	13408-17010	Pulley, Crankshaft
13471	95161-30516	Key(For Oil Pump Drive Spline)
13471	90201-27001	Washer, Plate(For Crankshaft Pulley Set)
13471	90105-24001	Bolt(For Crankshaft Pulley Set)
13477	13407-17010	Pulley, Crankshaft, No.2
13521	13521-17010	Gear Or Sprocket, Crankshaft Timing
13522	13522-17010	Gear, Pump Drive Shaft
13525	13525-17010	Gear, Idle, No.1
13572	13572-17010	Plate, Idle Gear Thrust
13572	13572-17021	Plate, Idle Gear Thrust
13572	13572-17020	Plate, Idle Gear Thrust
13581	13581-17010	Shaft, Idle Gear, No.1
13581	13581-17012	Shaft, Idle Gear, No.1
13581	13581-17011	Shaft, Idle Gear, No.1
9010508154	90105-08154	Bolt, No.1(For Alternator)
9010510347	90105-10347	BOLT WASHER BASED
9672135042	96721-35042	RING

OEM	Part name	Category
11011-17010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11701-17010-02	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11701-17010-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11701-17010-04	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11701-17010-05	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11701-17010-06	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11701-17011-02	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11701-17011-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11701-17011-04	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11701-17011-05	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11701-17011-06	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11704-17010	Bearing Set, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11704-17011	Bearing Set, Crankshaft (US 0.25)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11705-17010	Bearing Set, Crankshaft 0.5	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
11705-17011	Bearing Set, Crankshaft (US 0.50)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13011-17020	Ring Set, Piston	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13011-17030	Ring Set, Piston (STD)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13013-17020	Ring Set, Piston	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13013-17030	Ring Set, Piston (OS 0.50)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13041-17010-02	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13041-17010-03	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13041-17010-04	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13041-17010-05	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13041-17010-06	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13041-17011-02	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13041-17011-03	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13041-17011-04	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13041-17011-05	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13041-17011-06	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13101-17010-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13101-17010-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13101-17010-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13101-17100-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13101-17100-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13101-17100-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13103-17010	Piston Sub-Assy, W/pin (0.50)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13103-17100	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13201-17010	Rod Sub-Assy, Connecting	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13204-17010	Bearing Set, Connecting Rod (U/S 0.25)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13204-17011	Bearing Set, Connecting Rod (US 0.25)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13205-17010	Bearing Set, Connecting Rod (U/S 0.50)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13205-17011	Bearing Set, Connecting Rod (US 0.50)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13265-17010	Bolt, Connecting Rod	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13405-17010	Flywheel Sub-Assy	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13407-17010	Pulley, Crankshaft, No.2	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13408-17010	Pulley, Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13411-17010	Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13411-17011	Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13411-17012	Crankshaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13453-17010	Gear, Flywheel Ring	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13521-17010	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13522-17010	Gear, Pump Drive Shaft	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13525-17010	Gear, Idle, No.1	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13572-17010	Plate, Idle Gear Thrust	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13572-17020	Plate, Idle Gear Thrust	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13572-17021	Plate, Idle Gear Thrust	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13581-17010	Shaft, Idle Gear, No.1	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13581-17011	Shaft, Idle Gear, No.1	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
13581-17012	Shaft, Idle Gear, No.1	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
90105-08154	Bolt, No.1(For Alternator)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
90105-10347	BOLT WASHER BASED	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
90105-12169	Bolt, Flywheel Setting	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
90105-24001	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
90201-27001	Washer, Plate(For Crankshaft Pulley Set)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
90250-10192	Pin, Straight(For Timing Gear Cover Set)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
90311-95008	Seal, Engine Rear Oil	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
90521-32004	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
90999-73126	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
95161-30516	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)
96721-35042	RING	Crankshaft & Piston ([01.1990 - ] (9001- )1HZ)

Source: Public OEM parts-catalog data
Variants: 1 / 35
Category: 247
Collected: 2026-08-02
