HZJ74

Toyota LAND-CRUISER · 1999 · 5,098 parts · 218 categories

5,098 items

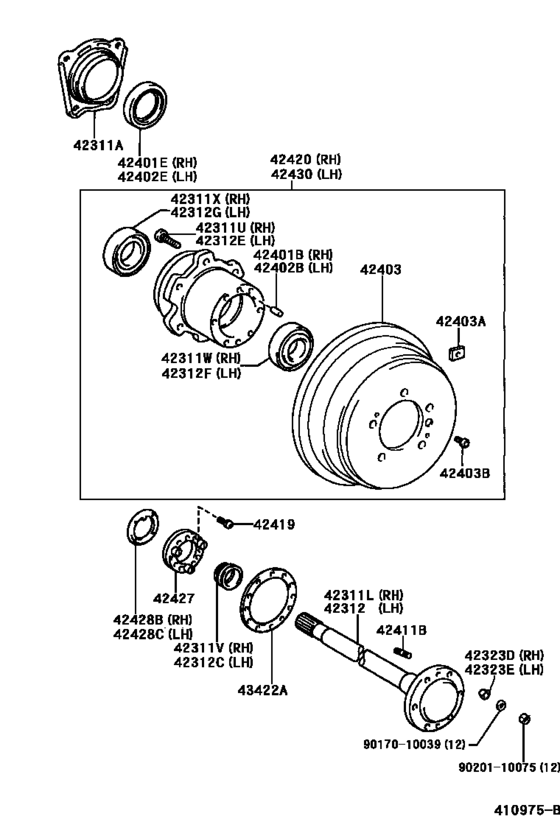

Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD) 45

#	OEM	Part name
42311	90313-93001	Seal, Oil (For Rear Axle Shaft)
42311	42311-60190	Shaft, Rear Axle, Rh
42311	42311-60201	Shaft, Rear Axle, Rh
42311	42311-60200	Shaft, Rear Axle, Rh
42311	90942-02077	Bolt, Hub (For Rear Axle)
42311	90942-02083	Bolt, Hub (For Rear Axle)
42311	90310-36003	Seal, Oil (For Rear Axle Shaft Outer)
42311	90080-36067	Bearing (For Rear Axle Shaft Outer)
42311	90368-45087	Bearing (For Axle Shaft Outer)
42311	90080-36064	Bearing (For Rear Axle Shaft Inner)
42311	90368-49084	Bearing (For Axle Shaft Inner)
42312	42312-60140	Shaft, Rear Axle, Lh
42312	42312-60141	Shaft, Rear Axle, Lh
42323	42323-60030	Washer, Cone (For Front Axle Shaft Rh)
42401	90250-10032	Pin, Straight (For Rear Axle Hub Rh)
42401	90311-62001	Seal, Oil
42403	42431-60250	Drum Sub-Assy, Rear Brake
42403	90937-01117	Piece, Balance (For Rear Brake Drum)
42403	90937-01118	Piece, Balance (For Rear Brake Drum)
42403	90937-01119	Piece, Balance (For Rear Brake Drum)
42403	90937-01195	Piece, Balance (For Rear Brake Drum)
42403	90937-01196	Piece, Balance (For Rear Brake Drum)
42403	90937-01197	Piece, Balance (For Rear Brake Drum)
42403	90937-01408	Piece, Balance (For Rear Brake Drum)
42403	90937-01409	Piece, Balance (For Rear Brake Drum)
42403	90937-01410	Piece, Balance (For Rear Brake Drum)
42403	90937-01411	Piece, Balance (For Rear Brake Drum)
42403	90937-01412	Piece, Balance (For Rear Brake Drum)
42403	90937-01413	Piece, Balance (For Rear Brake Drum)
42403	90937-01414	Piece, Balance (For Rear Brake Drum)
42403	90937-01415	Piece, Balance (For Rear Brake Drum)
42403	90937-01416	Piece, Balance (For Rear Brake Drum)
42403	90937-01417	Piece, Balance (For Rear Brake Drum)
42403	90937-01418	Piece, Balance (For Rear Brake Drum)
42403	90937-01419	Piece, Balance (For Rear Brake Drum)
42403	90113-10003	Bolt (For Rear Brake Drum Setting)
42411	90116-10201	Bolt, Stud (For Rear Axle Hub)
42419	42419-60011	Screw, Rear Axle Bearing Lock Nut
42420	42420-69015	Hub (Or Shaft) & Brake Drum Rear Axle, Rh
42420	42420-69016	Hub (Or Shaft) & Brake Drum Rear Axle, Rh
42427	42427-60021	Nut, Rear Axle Bearing Lock
42428	42428-60011	Plate, Rear Axle Lock Nut
43422	43422-60070	Gasket, Axle Outer Shaft Flange
9017010039	90170-10039	NUT, HEXAGON
9020110075	90201-10075	WASHER

OEM	Part name	Category
42311-60190	Shaft, Rear Axle, Rh	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42311-60200	Shaft, Rear Axle, Rh	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42311-60201	Shaft, Rear Axle, Rh	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42312-60140	Shaft, Rear Axle, Lh	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42312-60141	Shaft, Rear Axle, Lh	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42323-60030	Washer, Cone (For Front Axle Shaft Rh)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42419-60011	Screw, Rear Axle Bearing Lock Nut	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42420-69015	Hub (Or Shaft) & Brake Drum Rear Axle, Rh	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42420-69016	Hub (Or Shaft) & Brake Drum Rear Axle, Rh	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42427-60021	Nut, Rear Axle Bearing Lock	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42428-60011	Plate, Rear Axle Lock Nut	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
42431-60250	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
43422-60070	Gasket, Axle Outer Shaft Flange	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90080-36064	Bearing (For Rear Axle Shaft Inner)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90080-36067	Bearing (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90113-10003	Bolt (For Rear Brake Drum Setting)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90116-10201	Bolt, Stud (For Rear Axle Hub)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90170-10039	NUT, HEXAGON	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90201-10075	WASHER	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90250-10032	Pin, Straight (For Rear Axle Hub Rh)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90310-36003	Seal, Oil (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90311-62001	Seal, Oil	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90313-93001	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90368-45087	Bearing (For Axle Shaft Outer)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90368-49084	Bearing (For Axle Shaft Inner)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01117	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01118	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01119	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01195	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01196	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01197	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01408	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01409	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01410	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01411	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01412	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01413	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01414	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01415	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01416	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01417	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01418	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90937-01419	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90942-02077	Bolt, Hub (For Rear Axle)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
90942-02083	Bolt, Hub (For Rear Axle)	Rear Axle Shaft & Hub ([08.1999 - ] DRUM BRAKE (9908- )LX,STD)
