Search › Model › HZJ71

HZJ71

Toyota LAND-CRUISER · 1999 · 5,580 parts · 276 categories

5,580 items

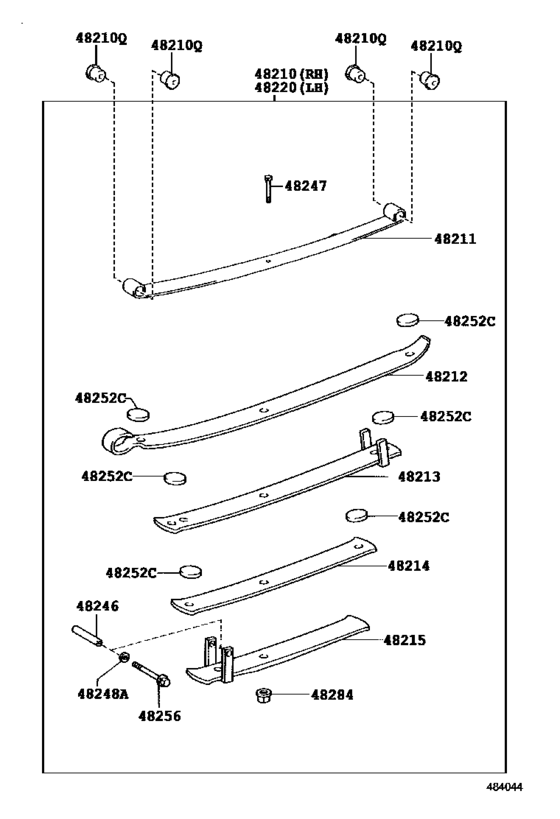

Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71) 22

#	OEM	Part name
48210	48210-60B20	Spring Assy, Rear Rh
48210	48210-6A010	Spring Assy, Rear Rh
48210	90385-18021	Bush(For Rear Spring Shackle)
48210	90385-18022	Bush(For Rear Spring Shackle)
48211	48031-60070	Leaf, Rear Spring, No.1
48211	48201-6A010	Leaf, Rear Spring, No.1
48211	48211-60B20	Leaf, Rear Spring, No.1
48212	48212-6A010	Leaf, Rear Spring, No.2
48212	48276-60070	Leaf, Rear Spring, No.2
48213	48032-60070	Leaf, Rear Spring, No.3
48213	48202-6A010	Leaf, Rear Spring, No.3
48214	48214-6A010	Leaf, Rear Spring, No.4
48214	48278-60070	Leaf, Rear Spring, No.4
48215	48207-6A010	Leaf, Rear Spring, No.5
48215	48209-60070	Leaf, Rear Spring, No.5
48220	48220-60070	Spring Assy, Rear Lh
48246	48146-60742	Case, Rear Spring Clip Bolt
48247	48289-60010	Bolt, Front Spring, Center
48248	48148-37010	Washer(For Rear Spring Clip Bolt)
48252	48154-60230	Silencer, Front Spring, No.2
48256	48156-60742	Bolt, Hexagon(For Rear Spring Clip Set)
48284	48284-60062	Nut, Front Spring Center Bolt

OEM	Part name	Category
48031-60070	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48032-60070	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48146-60742	Case, Rear Spring Clip Bolt	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48148-37010	Washer(For Rear Spring Clip Bolt)	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48154-60230	Silencer, Front Spring, No.2	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48156-60742	Bolt, Hexagon(For Rear Spring Clip Set)	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48201-6A010	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48202-6A010	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48207-6A010	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48209-60070	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48210-60B20	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48210-6A010	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48211-60B20	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48212-6A010	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48214-6A010	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48220-60070	Spring Assy, Rear Lh	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48276-60070	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48278-60070	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48284-60062	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
48289-60010	Bolt, Front Spring, Center	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
90385-18021	Bush(For Rear Spring Shackle)	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)
90385-18022	Bush(For Rear Spring Shackle)	Rear Spring & Shock Absorber ([07.2009 - ] 5-LEAF (0907- )GRJ71,HZJ71)

Source: Public OEM parts-catalog data
Variants: 1 / 15
Category: 276
Collected: 2026-08-02
