HZJ71

Toyota LAND-CRUISER · 1999 · 5,580 parts · 276 categories
HZJ71 ×

← Back to categories

5,580 items

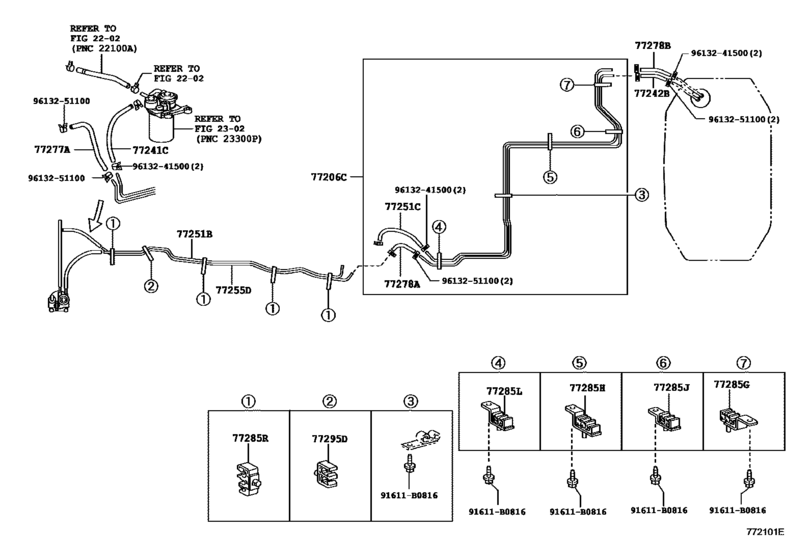

Fuel Tank & Tube ([01.2007 - ] FUEL TUBE (0701- )HZJ71) 26
#OEMPart name
77206 77206-60410 Tube Sub-Assy, Fuel Main, No.2
77241 95332-10060 Hose, Fuel, No.2(For Fuel Main No.2 Tube)
77241 95332-10070 Hose, Fuel, No.2 (For Main Tube, No.2)
77241 95338-10050 Hose, Fuel, No.3 (For Main Tube, No.1)
77242 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77242 95337-06020 Hose, Differential Pressure Control
77242 95337-06018 Hose, Fuel Emission
77251 77251-60B30 Tube, Fuel Main
77251 95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77251 95338-10028 Hose, Fuel, No.1(For Fuel Main Tube)
77255 77255-60B50 Tube, Fuel Return
77277 23273-17080 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23273-17081 Hose, Fuel, No.1(For Return Tube, No.1)
77278 95333-06030 Hose, Fuel
77278 95338-06030 HOSE, FUEL
77278 95337-06022 Hose, Fuel, No.2
77278 95338-10019 Hose, Fuel, No.1 (For Fuel Main No.2 Tube)
77285 77285-60660 Clamp, Fuel Tube, No.1
77285 77285-60670 Clamp, Fuel Tube W/grommet, No.1
77285 77285-60770 Clamp, Fuel Tube, No.1
77285 77285-60A60 Clamp, Fuel Tube, No.1
77285 77285-60A70 Clamp, Fuel Tube, No.1
77295 77295-25050 Grommet, Fuel Hose
91611 91611-B0816 Bolt
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251100 96132-51100 Clip (For Hose)
