HZJ71

Toyota LAND-CRUISER · 1999 · 5,580 parts · 276 categories

5,580 items

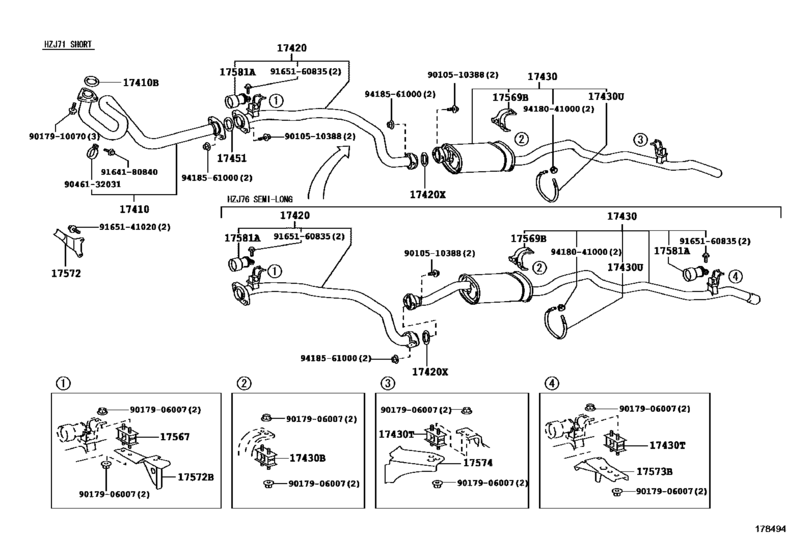

Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76) 22

#	OEM	Part name
17410	17401-17240	Pipe Assy, Exhaust, Front
17410	90917-06059	Gasket, Exhaust Pipe
17420	17403-17050	Pipe Assy, Exhaust, Center
17420	90917-06076	Gasket, Exhaust Pipe, Center
17430	17405-17031	Pipe Assy, Exhaust, Tail
17430	17567-17020	Cushion, Exhaust Pipe Center, Rear
17430	17504-17010	Clamp No.1, Exhaust Tail Pipe (For Rear)
17569	17569-17010	Stay, Exhaust Pipe Support, No.2
17572	17571-17030	Bracket, Exhaust Pipe Support, No.1
17572	51399-60020	Bracket, Exhaust Pipe Support, No.2
17574	17574-60030	Bracket, Exhaust Pipe Support, No.4
17581	17581-17010	Damper, Exhaust Pipe
9010510388	90105-10388	BOLT
9017906007	90179-06007	Nut
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9046132031	90461-32031	CLAMP
9164180840	91641-80840	BOLTWWASHER
9165141020	91651-41020	BOLT W-WASHER
9165160835	91651-60835	Bolt(For Front Suspension Control Accumulator)
9418041000	94180-41000	Nut
9418561000	94185-61000	NUTLOCK

OEM	Part name	Category
17401-17240	Pipe Assy, Exhaust, Front	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
17403-17050	Pipe Assy, Exhaust, Center	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
17405-17031	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
17504-17010	Clamp No.1, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
17567-17020	Cushion, Exhaust Pipe Center, Rear	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
17569-17010	Stay, Exhaust Pipe Support, No.2	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
17571-17030	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
17574-60030	Bracket, Exhaust Pipe Support, No.4	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
17581-17010	Damper, Exhaust Pipe	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
51399-60020	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
90105-10388	BOLT	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
90179-06007	Nut	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
90461-32031	CLAMP	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
90917-06059	Gasket, Exhaust Pipe	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
90917-06076	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
91641-80840	BOLTWWASHER	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
91651-41020	BOLT W-WASHER	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
91651-60835	Bolt(For Front Suspension Control Accumulator)	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
94180-41000	Nut	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
94185-61000	NUTLOCK	Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76)
