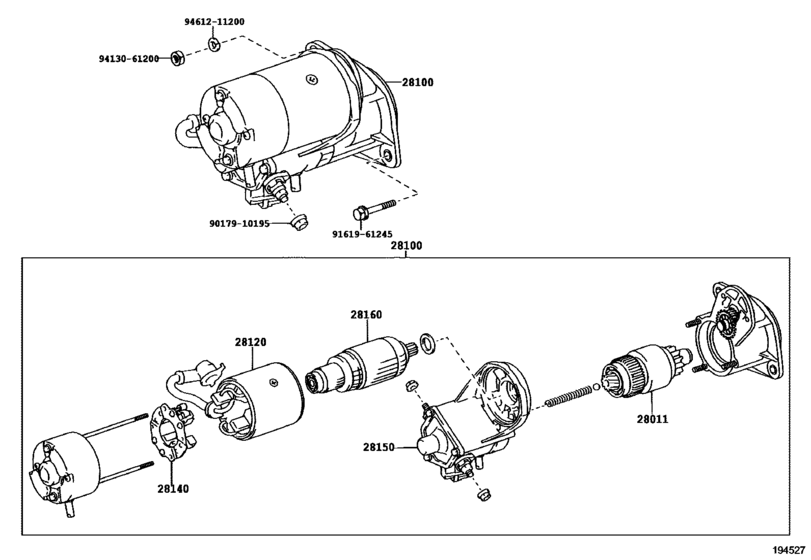

| 28011-17020 |
Clutch Sub-Assy, Starter |
Starter ([08.2010 - ] 12V 2.5KW, 24V 4.5KW (1008- )1HZ) |
| 28100-17051 |
Starter Assy |
Starter ([08.2010 - ] 12V 2.5KW, 24V 4.5KW (1008- )1HZ) |
| 28120-77090 |
Yoke Assy, Starter |
Starter ([08.2010 - ] 12V 2.5KW, 24V 4.5KW (1008- )1HZ) |
| 28140-77090 |
Holder Assy, Starter Brush |
Starter ([08.2010 - ] 12V 2.5KW, 24V 4.5KW (1008- )1HZ) |
| 28150-17050 |
Switch Assy, Magnet Starter |
Starter ([08.2010 - ] 12V 2.5KW, 24V 4.5KW (1008- )1HZ) |
| 28160-77090 |
Armature Assy, Starter |
Starter ([08.2010 - ] 12V 2.5KW, 24V 4.5KW (1008- )1HZ) |
| 90179-10195 |
NUT WWASHER |
Starter ([08.2010 - ] 12V 2.5KW, 24V 4.5KW (1008- )1HZ) |
| 91619-61245 |
Bolt(For Transaxle & Engine Setting) |
Starter ([08.2010 - ] 12V 2.5KW, 24V 4.5KW (1008- )1HZ) |
| 94130-61200 |
Nut |
Starter ([08.2010 - ] 12V 2.5KW, 24V 4.5KW (1008- )1HZ) |
| 94612-11200 |
Washer |
Starter ([08.2010 - ] 12V 2.5KW, 24V 4.5KW (1008- )1HZ) |
