HZB50

Toyota COASTER · 1993 · 3,986 parts · 241 categories
HZB50 ×

← Back to categories

3,986 items

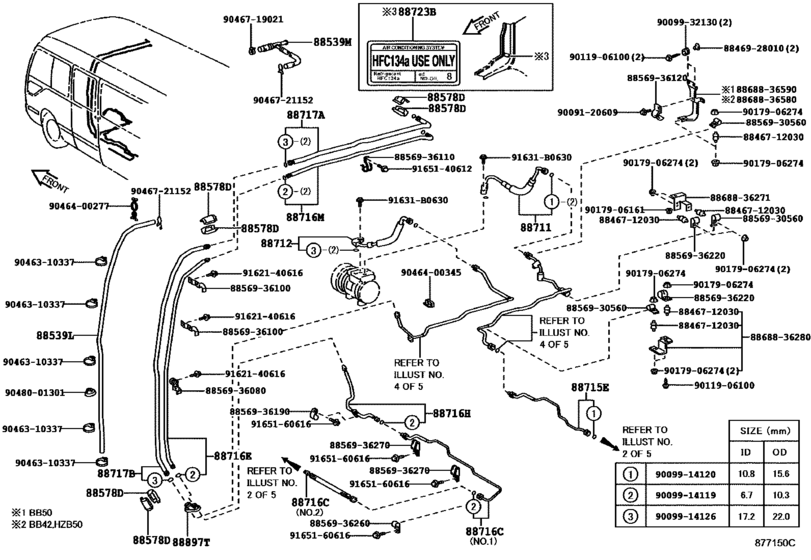

Heating & Air Conditioning - Cooler Piping ([01.2015 - ] (0408-1501)BB42,50,HZB50..LHD..WC..5F ; (1501- )BB42,HZB50..LHD) 50
#OEMPart name
88539 88539-36150 Hose, Drain Cooler
88539 88539-36170 Hose, Drain Cooler, No.2
88578 88578-90B01 Packing, Cooler Pipe, No.1
88711 88711-36530 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-36510 Hose, Cooler Refrigerant Suction, No.1
88715 88715-36230 Pipe, Cooler Refrigerant Discharge, E
88716 88716-36260 Pipe, Cooler Refrigerant Liquid, C
88716 88716-36330 Pipe, Cooler Refrigerant Liquid, C
88716 88716-36240 Pipe, Cooler Refrigerant Liquid, E - COOLER REFRIGERANT LIQUID, A
88716 88716-36130 Pipe, Cooler Refrigerant Liquid, D
88716 88716-36210 Pipe, Cooler Refrigerant Liquid, M - COOLER REFRIGERANT LIQUID, C
88717 88717-36190 Pipe, Cooler Refrigerant Suction, A
88717 88717-36130 Pipe, Cooler Refrigerant Suction, B
88723 88723-20040 Label, Cooler Service Caution
88897 88897-36040 Grommet, Cooler
91631 91631-B0630 BOLT WWASHER
8846712030 88467-12030 Cushion, Cooler Condenser, No.1
8846928010 88469-28010 Collar, Condenser Bracket, No.1
8856930560 88569-30560 Clamp, Piping, No.2
8856936080 88569-36080 Clamp (for Cooler Relay)
8856936100 88569-36100 Clamp (for Cooler Relay)
8856936110 88569-36110 Clamp (for Cooler Relay)
8856936120 88569-36120 Clamp, Cooler, No.2
8856936190 88569-36190 Clamp, Cooler, No.1
8856936220 88569-36220 Clamp, Cooler, No.2
8856936260 88569-36260 Clamp (for Cooler Relay)
8856936270 88569-36270 Clamp, Piping, No.1
8868836271 88688-36271 Bracket, Cooler, No.1
8868836280 88688-36280 Bracket, Cooler, No.1
8868836580 88688-36580 Bracket, Cooler, No.2
8868836590 88688-36590 Bracket, Cooler, No.5
9009120609 90091-20609 BOLT
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914126 90099-14126 OIL SEAL
9009932130 90099-32130 Grommet (For Power Take-Off Cable Bracket)
9011906100 90119-06100 BOLT
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9017906274 90179-06274 Nut
9046310337 90463-10337 CLAMP
9046400277 90464-00277 New Genuine Part
9046400345 90464-00345 New Genuine Part
9046719021 90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046721152 90467-21152 Clip Or Clamp(For Ventilation Hose)
9048001301 90480-01301 New Genuine Part
9162140616 91621-40616 Step Cover Bolt
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165160616 91651-60616 BOLT
