HZB50

Toyota COASTER · 1993 · 3,986 parts · 241 categories

← Back to categories

3,986 items

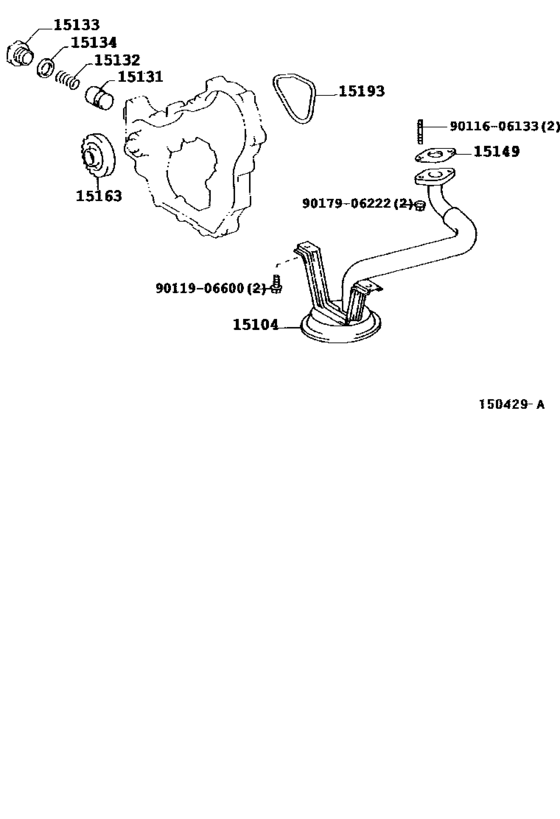

Engine Oil Pump ([01.1993 - ] (9301- )1HZ#) 11

#	OEM	Part name
15104	15104-17030	Strainer Sub-Assy, Oil
15131	15131-17010	Valve, Oil Pump Relief
15132	15132-17010	Spring, Oil Pump Relief Valve
15133	15133-17010	Plug, Oil Pump Relief Valve
15134	15134-67020	Gasket, Oil Pump Relief Valve
15149	15149-17010	Gasket, Oil Strainer Flange
15163	15163-17010	Gear, Oil Pump Drive Shaft
15193	15193-17010	Gasket, Oil Pump
9011606133	90116-06133	BOLT STUD
9011906600	90119-06600	Bolt
9017906222	90179-06222	NUT

OEM	Part name	Category
15104-17030	Strainer Sub-Assy, Oil	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
15131-17010	Valve, Oil Pump Relief	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
15132-17010	Spring, Oil Pump Relief Valve	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
15133-17010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
15134-67020	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
15149-17010	Gasket, Oil Strainer Flange	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
15163-17010	Gear, Oil Pump Drive Shaft	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
15193-17010	Gasket, Oil Pump	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
90116-06133	BOLT STUD	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
90119-06600	Bolt	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
90179-06222	NUT	Engine Oil Pump ([01.1993 - ] (9301- )1HZ#)
