Search › Model › HZB50

HZB50

Toyota COASTER · 1993 · 3,986 parts · 241 categories

3,986 items

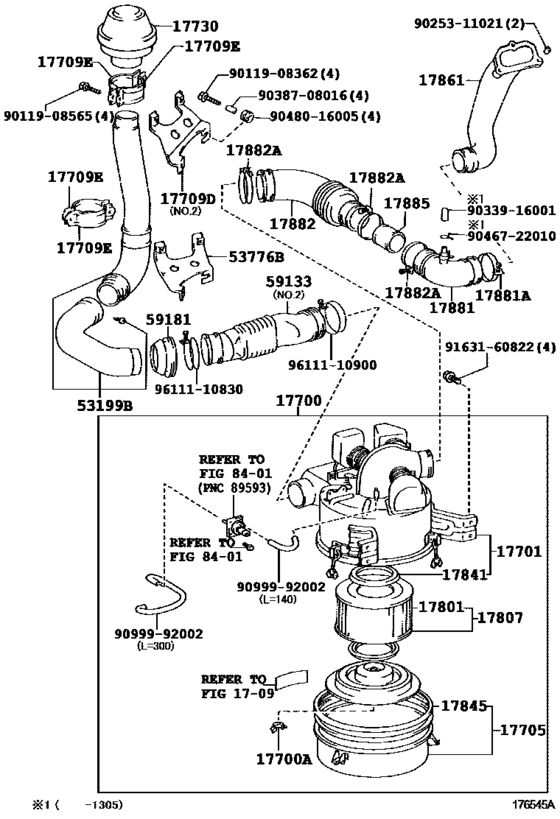

Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ) 25

#	OEM	Part name
17700	17700-17261	Cleaner Assy, Air
17700	90175-08008	Nut, Wing(For Air Cleaner)
17701	17701-17160	Case Sub-Assy, Air Cleaner
17705	17705-17180	Cap Sub-Assy, Air Cleaner
17801	17801-61030	Element Sub-Assy, Air Cleaner Filter
17807	17807-58020	Plate Sub-Assy, Air Cleaner Filter Set
17841	17841-68010	Gasket, Filter Element
17845	17845-58010	Gasket, Air Cleaner Cap
17861	17861-17010	Connector, Intake Air
17881	17881-17070	Hose, Air Cleaner, No.1
17881	96111-10800	Clamp, Hose(For Air Cleaner Duct)
17882	17882-17021	Hose, Air Cleaner, No.2
17882	96111-10780	Clamp, Hose(For Air Connector)
17882	96111-10900	Clamp, Hose
17885	17885-17010	Pipe, Air Cleaner
9011908362	90119-08362	BOLT
9011908565	90119-08565	BOLT
9025311021	90253-11021	Pin, Ring
9033916001	90339-16001	Plug, Heater Water
9038708016	90387-08016	Collar(For Intake Air Connector)
9046722010	90467-22010	Clip Or Clamp(For Ventilation Hose)
9048016005	90480-16005	Grommet(For Air Cleaner Bracket)
9099992002	90999-92002	Air Hose (300 mm)
9163160822	91631-60822	BOLT
9611110830	96111-10830	Clamp, Hose(For Air Connector)

OEM	Part name	Category
17700-17261	Cleaner Assy, Air	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
17701-17160	Case Sub-Assy, Air Cleaner	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
17705-17180	Cap Sub-Assy, Air Cleaner	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
17801-61030	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
17807-58020	Plate Sub-Assy, Air Cleaner Filter Set	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
17841-68010	Gasket, Filter Element	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
17845-58010	Gasket, Air Cleaner Cap	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
17861-17010	Connector, Intake Air	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
17881-17070	Hose, Air Cleaner, No.1	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
17882-17021	Hose, Air Cleaner, No.2	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
17885-17010	Pipe, Air Cleaner	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
90119-08362	BOLT	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
90119-08565	BOLT	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
90175-08008	Nut, Wing(For Air Cleaner)	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
90253-11021	Pin, Ring	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
90339-16001	Plug, Heater Water	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
90387-08016	Collar(For Intake Air Connector)	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
90467-22010	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
90480-16005	Grommet(For Air Cleaner Bracket)	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
90999-92002	Air Hose (300 mm)	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
91631-60822	BOLT	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
96111-10780	Clamp, Hose(For Air Connector)	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
96111-10800	Clamp, Hose(For Air Cleaner Duct)	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
96111-10830	Clamp, Hose(For Air Connector)	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
96111-10900	Clamp, Hose	Air Cleaner ([08.2009 - ] W(PRE AIR CLEANER) (0908- )1HZ)
