Search › Model › HZB41

HZB41

Toyota COASTER · 1993 · 4,979 parts · 259 categories

4,979 items

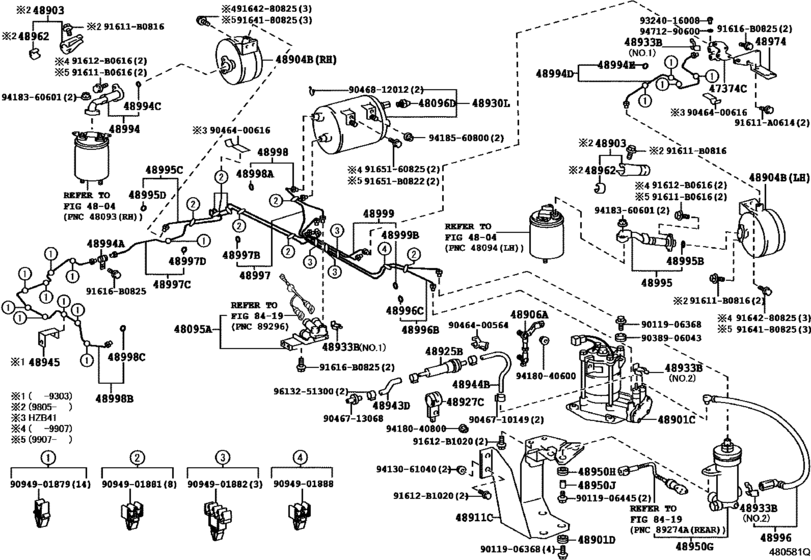

Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51) 67

#	OEM	Part name
47374	47374-36050	Connector, Tube
48095	48096-36020	Valve Sub-Assy, Rear Height Control, No.1
48096	48096-36010	Valve Sub-Assy, Height Control, No.2
48901	48901-36020	Compressor Sub-Assy, Rear Height Control
48901	90389-06022	Bush, Air Brake Compressor Bracket, No.1
48903	48903-36010	Cylinder Sub-Assy, Height Control, Front
48904	48904-36020	Tank Sub-Assy, Height Control Sub, Rear
48904	48904-36030	Tank Sub-Assy, Height Control Sub, Rear
48906	48906-36020	Link Sub-Assy, Height Control Sensor, Rear
48911	48911-36020	Bracket, Rear Height Control Compressor
48925	48925-36010	Filter, Front Height Control
48927	48927-36010	Bracket, Front Height Control Air Cleaner, No.1
48930	48930-36050	Reservoir Assy, Rear Height Control
48933	48933-30010	Holder, Air Connector Clip
48933	48933-30030	Holder, Air Connector Clip
48943	48943-36030	Hose, Height Control, No.1
48944	48943-36040	Hose, Rear Height Control, No.2
48950	48950-36020	Dryer Assy, Rear Height Control
48950	90385-08009	Bush, No.2(For Height Control Valve)
48950	90560-06026	Spacer(For Height Control Compressor)
48962	48962-36010	Cushion, Heigt Control Tube Cover
48974	48974-36010	Bracket, Height Control Valve
48994	48994-36022	Tube, Height Control, Rear No.1
48994	48976-36010	Way, No.1(For Rear Height Control Tube)
48994	90301-25006	O-Ring
48994	48985-36030	Tube, Height Control, Rear No.7
48994	90301-04004	Ring, O(For Height Control Tube No.1)
48995	48995-36022	Tube, Height Control, Rear No.2
48995	48986-36030	Tube, Height Control, Rear No.8
48996	48981-36020	Tube, Height Control, Rear No.3
48996	48987-36020	Tube, Height Control, Rear No.9
48997	48982-36020	Tube, Height Control, Rear No.4
48997	48988-36020	Tube, Height Control, Rear No.10
48998	48983-36020	Tube, Height Control, Rear No.5
48998	48989-36013	Tube, Height Control, Rear No.11
48999	48984-36020	Tube, Height Control, Rear No.6
91611	91611-A0614	Bolt
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
91611	91611-B0816	Bolt
91612	91612-B0616	Bolt(For Transaxle Case Receiver)
91612	91612-B1020	Bolt (For Transfer Case)Cover No.2
91616	91616-B0825	New Genuine Part
91651	91651-B0822	BOLT WWASHER
9011906368	90119-06368	BOLT WWASHER
9011906445	90119-06445	New Genuine Part
9038906043	90389-06043	New Genuine Part
9046400564	90464-00564	New Genuine Part
9046400616	90464-00616	Clamp, Throttle Cable, No.3
9046710149	90467-10149	Clip, No.2(For Idle-Up Hose)
9046713068	90467-13068	New Genuine Part
9046812012	90468-12012	Clip(For Pneumatic Tank Assy)
9094901879	90949-01879	New Genuine Part
9094901881	90949-01881	New Genuine Part
9094901882	90949-01882	New Genuine Part
9094901888	90949-01888	Clamp, Brake Tube, No.2
9164180825	91641-80825	BOLT WWASHER
9164280825	91642-80825	New Genuine Part
9165160825	91651-60825	Bolt, Hexagon(For Steering Column Bracket)
9165160825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9324016008	93240-16008	New Genuine Part
9413061040	94130-61040	New Genuine Part
9418040600	94180-40600	Retainer, Roof Window Hinge
9418040800	94180-40800	NUT
9418360601	94183-60601	New Genuine Part
9418560800	94185-60800	NUT
9471290600	94712-90600	New Genuine Part
9613251300	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
47374-36050	Connector, Tube	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48096-36010	Valve Sub-Assy, Height Control, No.2	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48096-36020	Valve Sub-Assy, Rear Height Control, No.1	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48901-36020	Compressor Sub-Assy, Rear Height Control	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48903-36010	Cylinder Sub-Assy, Height Control, Front	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48904-36020	Tank Sub-Assy, Height Control Sub, Rear	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48904-36030	Tank Sub-Assy, Height Control Sub, Rear	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48906-36020	Link Sub-Assy, Height Control Sensor, Rear	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48911-36020	Bracket, Rear Height Control Compressor	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48925-36010	Filter, Front Height Control	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48927-36010	Bracket, Front Height Control Air Cleaner, No.1	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48930-36050	Reservoir Assy, Rear Height Control	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48933-30010	Holder, Air Connector Clip	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48933-30030	Holder, Air Connector Clip	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48943-36030	Hose, Height Control, No.1	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48943-36040	Hose, Rear Height Control, No.2	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48950-36020	Dryer Assy, Rear Height Control	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48962-36010	Cushion, Heigt Control Tube Cover	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48974-36010	Bracket, Height Control Valve	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48976-36010	Way, No.1(For Rear Height Control Tube)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48981-36020	Tube, Height Control, Rear No.3	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48982-36020	Tube, Height Control, Rear No.4	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48983-36020	Tube, Height Control, Rear No.5	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48984-36020	Tube, Height Control, Rear No.6	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48985-36030	Tube, Height Control, Rear No.7	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48986-36030	Tube, Height Control, Rear No.8	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48987-36020	Tube, Height Control, Rear No.9	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48988-36020	Tube, Height Control, Rear No.10	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48989-36013	Tube, Height Control, Rear No.11	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48994-36022	Tube, Height Control, Rear No.1	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
48995-36022	Tube, Height Control, Rear No.2	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90119-06368	BOLT WWASHER	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90119-06445	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90301-04004	Ring, O(For Height Control Tube No.1)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90301-25006	O-Ring	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90385-08009	Bush, No.2(For Height Control Valve)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90389-06022	Bush, Air Brake Compressor Bracket, No.1	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90389-06043	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90464-00564	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90464-00616	Clamp, Throttle Cable, No.3	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90467-10149	Clip, No.2(For Idle-Up Hose)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90467-13068	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90468-12012	Clip(For Pneumatic Tank Assy)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90560-06026	Spacer(For Height Control Compressor)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90949-01879	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90949-01881	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90949-01882	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
90949-01888	Clamp, Brake Tube, No.2	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91611-A0614	Bolt	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91611-B0616	Bolt(For Transaxle Case Receiver)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91611-B0816	Bolt	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91612-B0616	Bolt(For Transaxle Case Receiver)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91616-B0825	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91641-80825	BOLT WWASHER	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91642-80825	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91651-60825	Bolt, Hexagon(For Steering Column Bracket)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91651-B0822	BOLT WWASHER	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
93240-16008	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
94130-61040	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
94180-40600	Retainer, Roof Window Hinge	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
94180-40800	NUT	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
94183-60601	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
94185-60800	NUT	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
94712-90600	New Genuine Part	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
96132-51300	Clip(For Ventilation Hose No.2)	Height Control (Auto-Leveler) ([01.1993 - ] (9301- )HDB51,HZB41,XZB51)
