Search › Model › HZB41
HZB41

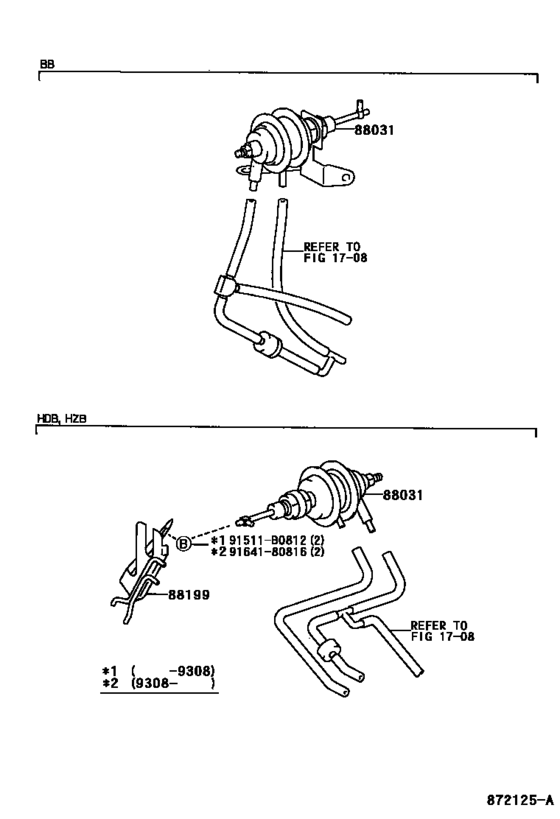

Heating & Air Conditioning - Vacuum Piping ([01.1993 - 08.2004] (9301-0408)BB4#,HDB5#,HZB4#,5#) 4
| # | OEM | Part name |
|---|---|---|
| 88031 | 88031-36100 | Actuator Set, Idle-Up |
| 88199 | 88199-36012 | Bracket, Idle Up Actuator |
| 91511 | 91511-B0812 | BOLT FLANGE |
| 9164180816 | 91641-80816 | BOLT W/WASHER |
| OEM | Part name | Category |
|---|---|---|
| 88031-36100 | Actuator Set, Idle-Up | Heating & Air Conditioning - Vacuum Piping ([01.1993 - 08.2004] (9301-0408)BB4#,HDB5#,HZB4#,5#) |
| 88199-36012 | Bracket, Idle Up Actuator | Heating & Air Conditioning - Vacuum Piping ([01.1993 - 08.2004] (9301-0408)BB4#,HDB5#,HZB4#,5#) |
| 91511-B0812 | BOLT FLANGE | Heating & Air Conditioning - Vacuum Piping ([01.1993 - 08.2004] (9301-0408)BB4#,HDB5#,HZB4#,5#) |
| 91641-80816 | BOLT W/WASHER | Heating & Air Conditioning - Vacuum Piping ([01.1993 - 08.2004] (9301-0408)BB4#,HDB5#,HZB4#,5#) |
