Search › Model › HZB41

HZB41

Toyota COASTER · 1993 · 4,979 parts · 259 categories

4,979 items

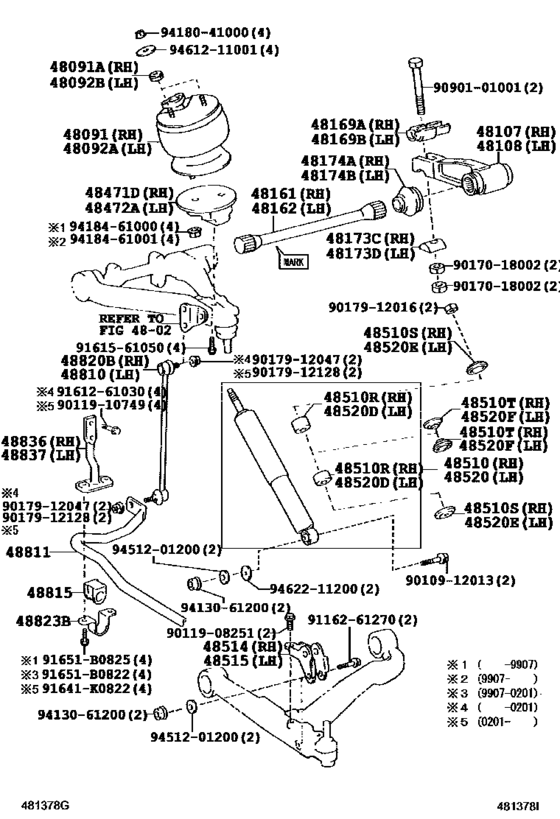

Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51) 49

#	OEM	Part name
48091	48901-36040	Sleeve Sub-Assy, Front Suspension, Rh
48091	48901-36041	Sleeve Sub-Assy, Front Suspension, Rh
48091	90480-16038	Grommet(For Front Suspension Sleeve Rh)
48092	48902-36030	Sleeve Sub-Assy, Front Suspension, Lh
48092	48902-36031	Sleeve Sub-Assy, Front Suspension, Lh
48107	48107-36020	Arm Sub-Assy, Anchor, Rh
48108	48108-36020	Arm Sub-Assy, Anchor, Lh
48161	48161-36090	Spring, Torsion Bar, Rh
48162	48162-36090	Spring, Torsion Bar, Lh
48169	48169-36020	Swivel, Anchor Arm, Rh
48173	48173-36010	Seat, Anchor Arm Adjuster
48174	48174-35010	Cover, Torsion Bar Dust
48471	48471-36010	Seat, Front Spring, Rh
48472	48472-36010	Seat, Front Spring, Lh
48510	48511-80094	Absorber Assy, Shock, Front
48510	90948-01004	Cushion, Front Shock Absorber
48510	90948-02009	Retainer, Cushion, No.1(For Front Shock Absorber)
48510	90948-02054	Retainer, Cushion, No.1(For Front Shock Absorber)
48514	48514-36050	Bracket, Front Shock Absorber, Lower Rh
48810	48820-36021	Link Assy, Front Stabilizer
48810	48820-36022	Link Assy, Front Stabilizer
48811	48811-36040	Bar, Stabilizer, Front
48811	48811-36041	Bar, Stabilizer, Front
48815	48815-60020	Bush, Front Stabilizer Bar, No.1
48823	48823-60030	Cover, Front Stabilizer Bracket
48836	48836-36030	Bracket, Front Stabilizer End, Rh
48837	48837-36020	Bracket, Front Stabilizer End, Lh
91641	91641-K0822	BOLT WWASHER
91651	91651-B0822	BOLT WWASHER
91651	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9010912013	90109-12013	BOLT
9011908251	90119-08251	BOLT
9011910749	90119-10749	New Genuine Part
9017018002	90170-18002	NUT
9017912016	90179-12016	NUT
9017912047	90179-12047	Nut(For Front Stabilizer Link)
9017912128	90179-12128	Nut, No.1 (For Propeller Shaft & Differential Setting)
9090101001	90901-01001	New Genuine Part
9116261270	91162-61270	BOLT
9161261030	91612-61030	Bolt (For Transmission Control Cable Bracket)
9161561050	91615-61050	New Genuine Part
9413061200	94130-61200	Nut
9418041000	94180-41000	Nut
9418461000	94184-61000	Nut(For Rear Spring)
9418461000	48284-37U70	Nut(For Rear Spring)
9418461001	94184-61001	Nut(For Front Stabilizer Bar)
9451201200	94512-01200	Washer
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)
9462211200	94622-11200	WASHER

OEM	Part name	Category
48107-36020	Arm Sub-Assy, Anchor, Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48108-36020	Arm Sub-Assy, Anchor, Lh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48161-36090	Spring, Torsion Bar, Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48162-36090	Spring, Torsion Bar, Lh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48169-36020	Swivel, Anchor Arm, Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48173-36010	Seat, Anchor Arm Adjuster	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48174-35010	Cover, Torsion Bar Dust	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48284-37U70	Nut(For Rear Spring)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48471-36010	Seat, Front Spring, Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48472-36010	Seat, Front Spring, Lh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48511-80094	Absorber Assy, Shock, Front	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48514-36050	Bracket, Front Shock Absorber, Lower Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48811-36040	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48811-36041	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48815-60020	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48820-36021	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48820-36022	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48823-60030	Cover, Front Stabilizer Bracket	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48836-36030	Bracket, Front Stabilizer End, Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48837-36020	Bracket, Front Stabilizer End, Lh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48901-36040	Sleeve Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48901-36041	Sleeve Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48902-36030	Sleeve Sub-Assy, Front Suspension, Lh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
48902-36031	Sleeve Sub-Assy, Front Suspension, Lh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90109-12013	BOLT	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90119-08251	BOLT	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90119-10749	New Genuine Part	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90170-18002	NUT	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90179-12016	NUT	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90179-12047	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90179-12128	Nut, No.1 (For Propeller Shaft & Differential Setting)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90480-16038	Grommet(For Front Suspension Sleeve Rh)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90901-01001	New Genuine Part	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90948-01004	Cushion, Front Shock Absorber	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90948-02009	Retainer, Cushion, No.1(For Front Shock Absorber)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
90948-02054	Retainer, Cushion, No.1(For Front Shock Absorber)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
91162-61270	BOLT	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
91612-61030	Bolt (For Transmission Control Cable Bracket)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
91615-61050	New Genuine Part	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
91641-K0822	BOLT WWASHER	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
91651-B0822	BOLT WWASHER	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
94130-61200	Nut	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
94180-41000	Nut	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
94184-61000	Nut(For Rear Spring)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
94184-61001	Nut(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
94512-01200	Washer	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
94622-11200	WASHER	Front Spring & Shock Absorber ([03.1997 - ] (9703- )HDB51,HZB41,XZB51)
