HZB40

Toyota COASTER · 1993 · 4,762 parts · 252 categories

4,762 items

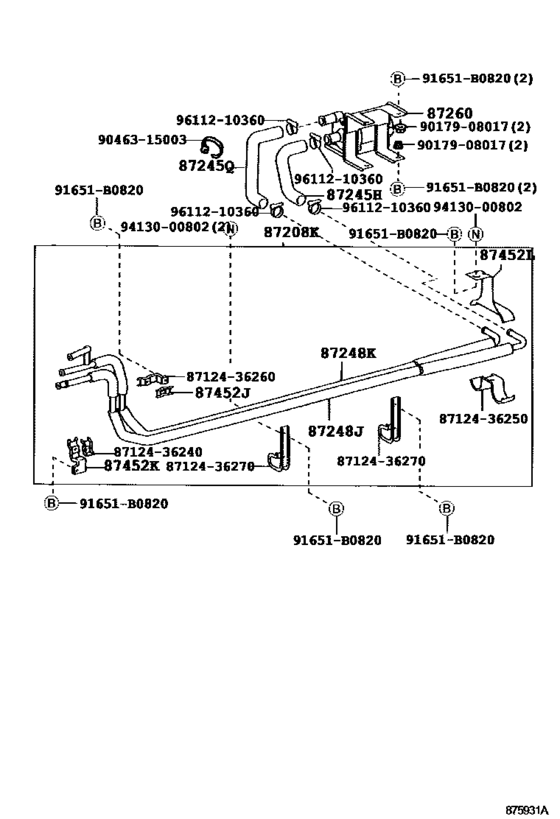

Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#) 23

#	OEM	Part name
87208	87208-36320	Pipe Sub-Assy, Heater Water, E
87245	87245-36190	Hose, Heater Water, Inlet H
87245	87245-36191	Hose, Heater Water, Inlet H
87245	87245-36200	Hose, Heater Water, Inlet Q
87245	87245-36201	Hose, Heater Water, Inlet Q
87248	87248-36100	Pipe, Heater Water Inlet, J
87248	87248-36110	Pipe, Heater Water Inlet, K
87260	87260-36031	Pump Assy, Heater
87260	87260-36032	Pump Assy, Heater
87452	87452-36170	Bracket, Rear Heater Pipe, No.1
87452	87452-36180	Bracket, Rear Heater Pipe, No.2
87452	87452-36190	Bracket, Rear Heater Pipe, No.3
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
8712436240	87124-36240	Clamp, Heater
8712436250	87124-36250	Clamp, Heater
8712436260	87124-36260	Clamp, Heater
8712436270	87124-36270	Clamp, Heater
9017908017	90179-08017	NUT
9046315003	90463-15003	New Genuine Part
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9611210360	96112-10360	Clamp, Sub Radiator Inlet Hose

OEM	Part name	Category
87124-36240	Clamp, Heater	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87124-36250	Clamp, Heater	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87124-36260	Clamp, Heater	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87124-36270	Clamp, Heater	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87208-36320	Pipe Sub-Assy, Heater Water, E	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87245-36190	Hose, Heater Water, Inlet H	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87245-36191	Hose, Heater Water, Inlet H	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87245-36200	Hose, Heater Water, Inlet Q	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87245-36201	Hose, Heater Water, Inlet Q	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87248-36100	Pipe, Heater Water Inlet, J	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87248-36110	Pipe, Heater Water Inlet, K	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87260-36031	Pump Assy, Heater	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87260-36032	Pump Assy, Heater	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87452-36170	Bracket, Rear Heater Pipe, No.1	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87452-36180	Bracket, Rear Heater Pipe, No.2	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
87452-36190	Bracket, Rear Heater Pipe, No.3	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
90080-11347	New Genuine Part	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
90170-A0001	New Genuine Part	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
90179-08017	NUT	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
90463-15003	New Genuine Part	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
91651-B0820	Bolt, Radiator Side Support Plate	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
94130-00802	Nut, No.1 (For Center Support Bearing)	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
96112-10360	Clamp, Sub Radiator Inlet Hose	Heating & Air Conditioning - Water Piping ([07.1999 - 08.2004] ﾋ-ﾀﾖｳｳｵ-ﾀﾎﾟﾝﾌﾟﾂｷ (9907-0408)HDB5#,HZB4#,5#..CBU,IV5 ; (0408-1501) XZB4#,5#)
