Search › Model › HZB40

HZB40

Toyota COASTER · 1993 · 4,762 parts · 252 categories
HZB40 ×

← Back to categories

4,762 items

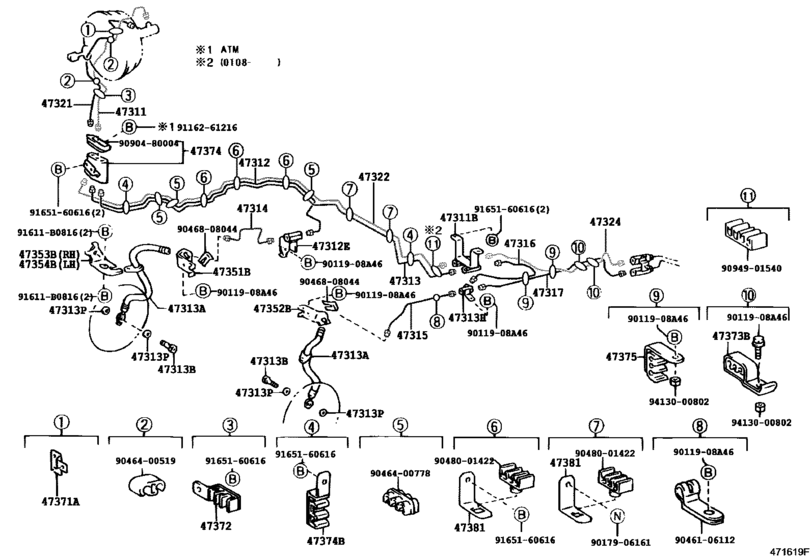

Brake Tube & Clamp ([07.1999 - 08.2004] (9907-0408)HZB40,46 ; (0408- )XZB4#..DX,LX,ST D..4FC,5F) 45
#OEMPart name
47311 47311-36551 Tube, Front Brake, No.1
47311 90904-12083 Way, No.1(For Front Brake Tube)
47312 47312-36301 Tube, Front Brake, No.2
47312 90412-10210 Way, No.2(For Front Brake Tube)
47312 90904-13517 Way, No.2(For Front Brake Tube)
47313 47313-36311 Tube, Front Brake, No.3
47313 90947-02B91 Hose, Flexible, No.1(For Front)
47313 90401-10023 Bolt, Union(For Master Cylinder Fluid Outlet)
47313 90413-10270 Way, No.3(For Front Brake Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-36371 Tube, Front Brake, No.4
47315 47315-36261 Tube, Front Brake, No.5
47316 47316-36301 Tube, Front Brake, No.6
47317 47317-36161 Tube, Front Brake, No.7
47317 47317-36171 Tube, Front Brake, No.7
47321 47321-36371 Tube, Rear Brake, No.1
47322 47322-36401 Tube, Rear Brake, No.2
47324 47324-36361 Tube, Rear Brake, No.4
47351 47351-36210 Bracket, Flexible Hose, No.1
47352 47352-36200 Bracket, Flexible Hose, No.2
47353 47353-36210 Bracket, Flexible Hose, No.3
47354 47354-36090 Bracket, Flexible Hose, No.4
47371 47371-36110 Clamp, Brake Tube, No.1
47372 47373-35040 Clamp, Brake Tube, No.1
47373 90949-01536 Clamp, Brake Tube, No.15
47374 47307-36080 Connector, Tube
47374 47307-36090 Connector, Tube
47374 47371-35130 Clamp, Brake Tube, No.4
47375 47371-36060 Clamp, Brake Tube, No.2
47381 47381-36160 Bracket, Brake Tube Clamp No.1
91611 91611-B0816 Bolt
9011908 90119-08A46 BOLT WWASHER
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046106112 90461-06112 Clamp, Brake Tube, No.6
9046400519 90464-00519 CLAMP
9046400778 90464-00778 Clamp, Brake Tube, No.1
9046808044 90468-08044 CLIP
9046808044 90468-08035 CLIP
9048001422 90480-01422 New Genuine Part
9090480004 90904-80004 New Genuine Part
9094901540 90949-01540 Clamp, Brake Tube, No.7
9116261216 91162-61216 New Genuine Part
9165160616 91651-60616 BOLT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
