Search › Model › HZB30

HZB30

Toyota COASTER · 1990 · 5,240 parts · 198 categories

5,240 items

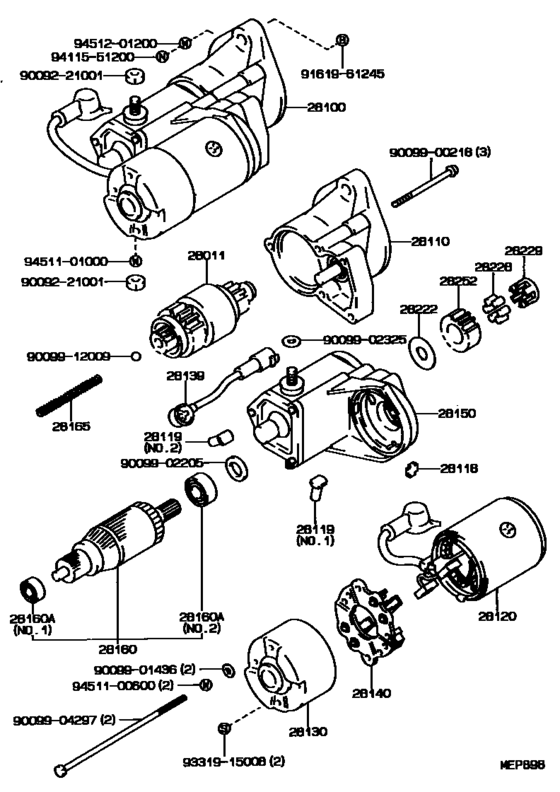

Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC) 44

#	OEM	Part name
28011	28011-17020	Clutch Sub-Assy, Starter
28100	28100-17020	Starter Assy
28100	28100-17010	Starter Assy
28100	28100-17061	Starter Assy
28110	28115-17020	Housing Assy, Starter Drive
28118	28118-77090	Plate(For Starter Yoke)
28119	28119-47070	Cover, Starter End Frame
28119	28119-77090	Cover, Starter End Frame
28119	28199-77090	Cover, Starter End Frame
28120	28120-77090	Yoke Assy, Starter
28120	28120-47040	Yoke Assy, Starter
28130	28130-54010	Frame Assy, Starter Commutator End
28130	28130-56300	Frame Assy, Starter Commutator End
28130	28199-46080	Cover, Starter End Frame
28130	90099-04207	New Genuine Part
28139	28139-17010	Wire, Lead, No.1(For Starter)
28140	28140-77090	Holder Assy, Starter Brush
28150	28150-17020	Switch Assy, Magnet Starter
28150	28150-17030	Switch Assy, Magnet Starter
28150	28150-17010	Switch Assy, Magnet Starter
28150	28150-17040	Switch Assy, Magnet Starter
28160	28160-77090	Armature Assy, Starter
28160	90099-10107	Bearing, Starter Armature
28160	90099-10119	Bearing, Starter Armature
28160	28160-47040	Armature Assy, Starter
28160	28160-54140	Armature Assy, Starter
28165	28165-77090	Spring, Starter Magnet Switch Return
28222	28222-77090	Washer, Starter Idle Gear Clutch
28228	28228-56080	Roller, Starter Idle Gear Clutch
28229	28229-56080	Retainer, Starter Idle Gear
28252	28254-77090	Pinion, Starter Drive
9009221001	90092-21001	NUT
9009900218	90099-00218	New Genuine Part
9009901436	90099-01436	New Genuine Part
9009902205	90099-02205	Washer, Felt, Starter
9009902325	90099-02325	WASHER
9009904297	90099-04297	BOLT
9009912009	90099-12009	Ball, Starter Clutch
9161961245	91619-61245	Bolt(For Transaxle & Engine Setting)
9331915008	93319-15008	SCREW
9411551200	94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)
9451100600	94511-00600	Washer, Lock, No.2
9451101000	94511-01000	Washer(For Rear Drive Shaft)
9451201200	94512-01200	Washer

OEM	Part name	Category
28011-17020	Clutch Sub-Assy, Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28100-17010	Starter Assy	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28100-17020	Starter Assy	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28100-17061	Starter Assy	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28115-17020	Housing Assy, Starter Drive	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28118-77090	Plate(For Starter Yoke)	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28119-47070	Cover, Starter End Frame	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28119-77090	Cover, Starter End Frame	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28120-47040	Yoke Assy, Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28120-77090	Yoke Assy, Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28130-54010	Frame Assy, Starter Commutator End	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28130-56300	Frame Assy, Starter Commutator End	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28139-17010	Wire, Lead, No.1(For Starter)	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28140-77090	Holder Assy, Starter Brush	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28150-17010	Switch Assy, Magnet Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28150-17020	Switch Assy, Magnet Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28150-17030	Switch Assy, Magnet Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28150-17040	Switch Assy, Magnet Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28160-47040	Armature Assy, Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28160-54140	Armature Assy, Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28160-77090	Armature Assy, Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28165-77090	Spring, Starter Magnet Switch Return	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28199-46080	Cover, Starter End Frame	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28199-77090	Cover, Starter End Frame	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28222-77090	Washer, Starter Idle Gear Clutch	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28228-56080	Roller, Starter Idle Gear Clutch	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28229-56080	Retainer, Starter Idle Gear	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
28254-77090	Pinion, Starter Drive	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
90092-21001	NUT	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
90099-00218	New Genuine Part	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
90099-01436	New Genuine Part	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
90099-02205	Washer, Felt, Starter	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
90099-02325	WASHER	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
90099-04207	New Genuine Part	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
90099-04297	BOLT	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
90099-10107	Bearing, Starter Armature	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
90099-10119	Bearing, Starter Armature	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
90099-12009	Ball, Starter Clutch	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
91619-61245	Bolt(For Transaxle & Engine Setting)	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
93319-15008	SCREW	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
94511-00600	Washer, Lock, No.2	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
94511-01000	Washer(For Rear Drive Shaft)	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
94512-01200	Washer	Starter ([01.1990 - ] 12V 2.5KW (9001- )1HZ..WOC)
