HZB30

Toyota COASTER · 1990 · 5,240 parts · 198 categories
HZB30 ×

← Back to categories

5,240 items

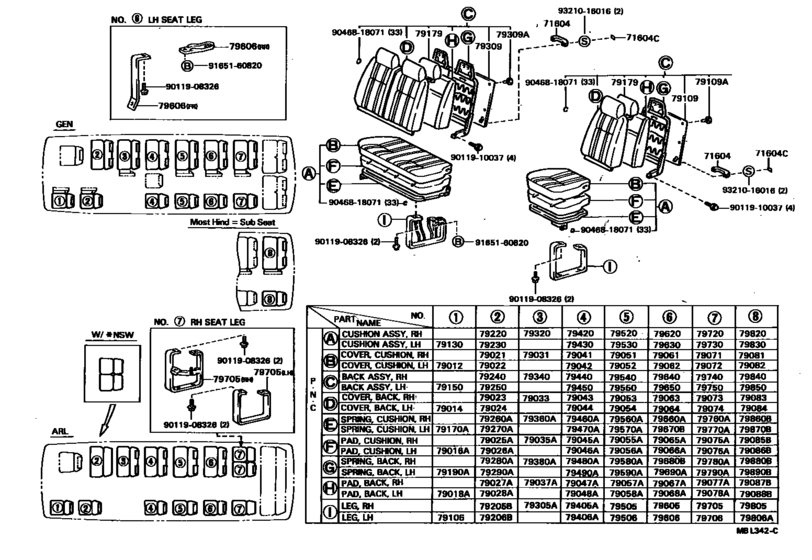

Seat & Seat Track ([10.1986 - ] (8610- )RHD..23S,30S) 124
#OEMPart name
71604 74610-10020-26 Grip Sub-Assy, Assist(For Seat Back)
71604 74610-10020-B3 Grip Assy, Assist, No.2 Rh
71604 74617-14010-40 Plug, Hole(For Assist Grip)
71604 74617-14010-B3 Plug, Assist Grip
79012 79022-90B32-06 Cover Sub-Assy, No.1 Seat Cushion, Lh
79014 79013-90B40-06 Cover Sub-Assy, No.1 Seat Back, Lh
79014 79013-90B70-06 Cover Sub-Assy, No.1 Seat Back, Rh
79016 79015-90B00 Pad Sub-Assy, No.1 Seat Cushion, Lh
79018 79175-90B04 Pad Sub-Assy, No.1 Seat Back, Lh
79021 79021-90B25-06 Cover Sub-Assy, No.2 Seat Cushion, Rh
79021 79021-90B55-06 Cover Sub-Assy, No.2 Seat Cushion, Rh
79022 79022-90B62-06 Cover Sub-Assy, No.1 Seat Cushion, Lh
79023 79033-90B25-06 Cover Sub-Assy, No.2 Seat Back, Rh
79023 79023-90B39-06 Cover Sub-Assy, No.2 Seat Back, Rh
79023 79033-90B53-06 Cover Sub-Assy, No.2 Seat Back, Rh
79024 79013-90B64-06 Cover Sub-Assy, No.2 Seat Back, Rh
79025 79035-90B00 Pad Sub-Assy, No.2 Seat Cushion, Rh
79027 79375-90B01 Pad Sub-Assy, No.2 Seat Back, Rh
79031 79031-90B17-06 Cover Sub-Assy, No.3 Seat Cushion, Rh
79031 79031-90B33-06 Cover Sub-Assy, No.3 Seat Cushion, Rh
79033 79033-90B33-06 Cover Sub-Assy, No.3 Seat Back, Rh
79037 79375-90B03 Pad Sub-Assy, No.3 Seat Back, Rh
79042 79042-90B04-06 Cover Sub-Assy, No.4 Seat Cushion, Lh
79046 79045-90B00 Pad Sub-Assy, No.2 Seat Cushion, Rh
79068 79017-90B00 Pad Sub-Assy, No.1 Seat Back, Lh
79071 79011-90B21-06 Cover Sub-Assy, No.1 Seat Cushion, Rh
79071 79011-90B25-06 Cover Sub-Assy, No.1 Seat Cushion, Rh
79071 79071-90B06-06 Cover Sub-Assy, No.2 Seat Cushion, Rh
79073 79013-90B44-06 Cover Sub-Assy, No.2 Seat Back, Lh
79075 79035-90B01 Pad Sub-Assy, No.2 Seat Cushion, Rh
79077 79175-90B03 Pad Sub-Assy, No.1 Seat Back, Lh
79106 79105-90B06-06 Leg Sub Assy, No.1 Seat, Lh
79106 79105-90B00-06 Leg Sub Assy, No.1 Seat, Lh
79130 79130-90B37-06 Cushion Assy, No.1 Seat, Lh
79130 79230-90B29-06 Cushion Assy, No.1 Seat, Lh
79130 79230-90B73-06 Cushion Assy, No.1 Seat, Lh
79130 79230-90B76-06 Cushion Assy, No.1 Seat, Lh
79150 79150-90B42-06 Back Assy, No.1 Seat, Lh
79150 79150-90B59-06 Back Assy, No.1 Seat, Lh
79150 79140-90B19-06 Back Assy, No.1 Seat, Lh
79150 79140-90B48-06 Back Assy, No.1 Seat, Rh
79170 79170-90B01-06 Spring Assy, No.1 Seat Cusuion, Lh
79170 79270-90B00-06 Spring Assy, No.2 Seat Cushion, Lh
79179 79179-90B02 Pad, No.1 Seat Back Headrest
79190 79104-90B05-06 Spring Assy, No.1 Seat Back, Lh
79205 79234-90B09-06 Leg Sub-Assy, No.2 Seat, Rh
79205 79234-90B05-06 Leg Sub-Assy, No.2 Seat, Rh
79206 79233-90B09-06 Leg Sub-Assy, No.2 Seat, Lh
79206 79133-90B04-06 Leg Sub-Assy, No.2 Seat, Lh
79220 79220-90B50-06 Cushion Assy, No.2 Seat, Rh
79220 79220-90B33-06 Cushion Assy, No.2 Seat, Rh
79220 79220-90B76-06 Cushion Assy, No.2 Seat, Rh
79230 79230-90B83-06 Cushion Assy, No.2 Seat, Lh
79240 79250-90B34-06 Back Assy, No.2 Seat, Rh
79240 79250-90B42-06 Back Assy, No.2 Seat, Rh
79240 79340-90B23-06 Back Assy, No.2 Seat, Rh
79250 79240-90B24-06 Back Assy, No.2 Seat, Rh
79250 79240-90B55-06 Back Assy, No.2 Seat, Rh
79260 79260-90B09-06 Spring Assy, No.2 Seat Cushion, Rh
79270 79270-90B05-06 Spring Assy, No.2 Seat Cushion, Lh
79280 79303-90B01-06 Spring Assy, No.2 Seat Back, Rh
79290 79204-90B01-06 Spring Assy, No.2 Seat Back, Lh
79305 79433-90B02-06 Leg Sub-Assy, No.3 Seat, Rh
79305 79406-90B00-06 Leg Sub-Assy, No.3 Seat, Rh
79305 79406-90B00-C0 Leg Sub-Assy, No.3 Seat, Rh
79320 79320-90B23-06 Cushion Assy, No.3 Seat, Rh
79320 79320-90B22-06 Cushion Assy, No.3 Seat, Rh
79320 79320-90B45-06 Cushion Assy, No.3 Seat, Rh
79340 79340-90B34-06 Back Assy, No.3 Seat, Rh
79360 79360-90B00-06 Spring Assy, No.2 Seat Cushion, Rh
79380 79303-90B05-06 Spring Assy, No.3 Seat Back, Rh
79430 79430-90B25-06 Cushion Assy, No.4 Seat, Lh
79430 79430-90B15-06 Cushion Assy, No.4 Seat, Lh
79430 79430-90B16-06 Cushion Assy, No.4 Seat, Lh
79430 79430-90B35-06 Cushion Assy, No.4 Seat, Lh
79450 79150-90B41-06 Back Assy, No.4 Seat, Lh
79470 79470-90B01-06 Spring Assy, No.4 Seat Cushion, Lh
79470 79470-90B02-06 Spring Assy, No.4 Seat Cushion, Lh
79490 79103-90B08-06 Spring Assy, No.4 Seat Back, Lh
79506 79533-90B06-06 Leg Sub-Assy, No.5 Seat, Lh
79530 79530-90B02-06 Cushion Assy, No.5 Seat, Lh
79530 79430-90B26-06 Cushion Assy, No.4 Seat, Lh
79530 79430-90B27-06 Cushion Assy, No.4 Seat, Lh
79570 79570-90B00-06 Spring Assy, No.5 Seat Cushion, Lh
79605 79633-90B02-06 Leg Sub-Assy, No.6 Seat, Rh
79605 79606-90B00-06 Leg Sub-Assy, No.6 Seat, Rh
79605 79606-90B00-C0 Leg Sub-Assy, No.6 Seat, Rh
79606 79643-90B01-06 Leg Sub-Assy, No.6 Seat, Lh
79606 79644-90B01-06 Leg Sub-Assy, No.6 Seat, Lh
79606 79643-90B00-06 Leg Sub-Assy, No.6 Seat, Lh
79620 79620-90B32-06 Cushion Assy, No.6 Seat, Rh
79620 79620-90B31-06 Cushion Assy, No.6 Seat, Rh
79620 79620-90B50-06 Cushion Assy, No.7 Seat, Rh
79620 79620-90B58-06 Cushion Assy, No.6 Seat, Rh
79630 79630-90B40-06 Cushion Assy, No.6 Seat, Lh
79630 79630-90B25-06 Cushion Assy, No.6 Seat, Lh
79630 79630-90B26-06 Cushion Assy, No.6 Seat, Lh
79630 79630-90B60-06 Cushion Assy, No.6 Seat, Lh
79660 79660-90B04-06 Spring Assy, No.6 Seat Cushion, Rh
79670 79670-90B06-06 Spring Assy, No.6 Seat Cushion, Lh
79690 79103-90B01-06 Spring Assy, No.1 Seat Back, Lh
79705 79099-90B00-06 Leg Sub-Assy, No.7 Seat, Rh
79706 79931-90B01-06 Leg Sub-Assy, No.7 Seat, Lh
79706 79733-90B00-06 Leg Sub-Assy, No.7 Seat, Lh
79720 79080-90B05-06 Cushion Assy, No.7 Seat, Rh
79720 79720-90B24-06 Cushion Assy, No.7 Seat, Rh
79730 79730-90B23-06 Cushion Assy, No.7 Seat, Lh
79730 79630-90B26-01 Cushion Assy, No.7 Seat, Lh
79740 79140-90B30-06 Back Assy, No.1 Seat, Lh
79760 79090-90B00-06 Spring Assy, No.7 Seat Cushion, Rh
79760 79760-90B02-06 Spring Assy, No.7 Seat Cushion, Rh
79770 79670-90B02-06 Spring Assy, No.6 Seat Cushion, Lh
79770 79770-90B02-06 Spring Assy, No.7 Seat Cushion, Lh
79820 79820-90B52-06 Cushion Assy, No.8 Seat, Rh
79830 79830-90B26-06 Cushion Assy, No.8 Seat, Lh
79860 79660-90B06-06 Spring Assy, No.8 Seat Cushion, Rh
79870 79670-90B03-06 Spring Assy, No.8 Seat Cushion, Lh
9011908326 90119-08326 New Genuine Part
9011910037 90119-10037 BOLT
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9321016016 93210-16016 SCREW
