Search › Model › HZB30

HZB30

Toyota COASTER · 1990 · 5,240 parts · 198 categories

5,240 items

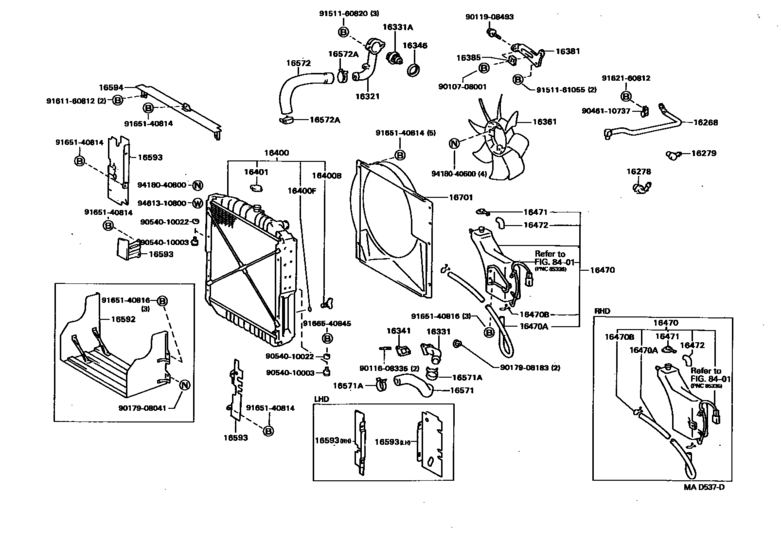

Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ) 67

#	OEM	Part name
16268	16268-17010	Pipe, Water By-Pass, No.1
16278	16278-17010	Pipe, Water By-Pass, No.2
16279	16279-17010	Pipe, Water By-Pass, No.3
16321	16321-17010	Inlet, Water
16331	16331-17010	Outlet, Water
16331	90916-03089	Thermostat
16341	16341-17010	Gasket, Water Outlet
16346	16346-17010	Gasket, Thermostat
16346	16346-32010	Gasket, Water Inlet Housing, No.1
16361	16361-17010	Fan
16381	16381-17020	Bar, Fan Belt Adjusting
16381	16381-17030	Bar, Fan Belt Adjusting
16385	16385-17010	Slider, Fan Belt Adjusting
16400	16400-17130	Radiator Assy
16400	16417-24200	Plug, Radiator Drain Cock
16400	16418-24200	Packing(For Radiator Drain Cock)
16400	16400-17110	Radiator Assy
16400	16400-17140	Radiator Assy
16401	16401-71010	Cap Sub-Assy(For Water Outlet)
16401	16401-54750	Radiator Cap
16470	16470-17030	Tank Assy, Radiator Reserve
16470	16567-17020	Hose Or Pipe(For Radiator Reserve Tank)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16405-17020	Cap Sub-Assy, Reserve Tank
16472	85338-74040	Hose(For Radiator Drain Cock)
16571	16571-17040	Hose, Radiator, Inlet
16571	90467-42001	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90466-41008	Clamp, Hose(For Radiator Hose)
16572	16572-17050	Hose, Radiator, Outlet
16572	96111-10490	Clamp Or Clip, Sub Radiator Hose
16572	96111-10530	Clamp Or Clip, Hose(For Radiator Outlet No.1)
16572	16572-17040	Hose, Radiator, Outlet
16592	16592-68010	Guide, Radiator Air, No.3
16592	16592-68011	Guide, Radiator Air, No.3
16592	16592-17010	Guide, Radiator Air, No.3
16593	16593-17010	Guide, Radiator Air, No.1
16593	16593-68010	Guide, Radiator Air, No.1
16593	16595-17010	Guide, Radiator Air, No.1
16594	16594-17010	Guide, Radiator Air, No.2
16701	16701-17030	Shroud Sub-Assy, Fan
16701	16701-17010	Shroud Sub-Assy, Fan
9010708001	90107-08001	Bolt(for Transaxle Case & Engine Setting)
9010708001	91511-C0835	Bolt(For Transaxle Case & Engine Setting)
9011608335	90116-08335	Stud
9011908493	90119-08493	BOLT
9017908041	90179-08041	NUT
9017908041	90179-08017	NUT
9017908183	90179-08183	NUT
9046110737	90461-10737	CLAMP
9054010003	90540-10003	Support Assy, Radiator
9054010022	90540-10022	Cushion(For Engine Under Cover Bracket)
9151160820	91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151160820	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151161055	91511-61055	New Genuine Part
9151161055	91512-61055	BOLT, FLANGE
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9162160812	91621-60812	BOLTWWASHER
9162160812	91651-B0814	Bolt with washer
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165140816	91651-40816	BOLT
9166540845	91665-40845	New Genuine Part
9166540845	91661-60845	New Genuine Part
9418040600	94180-40600	Retainer, Roof Window Hinge
9418040800	94180-40800	NUT
9461310800	94613-10800	Spacer (For Control Select Lever Support)

OEM	Part name	Category
16268-17010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16278-17010	Pipe, Water By-Pass, No.2	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16279-17010	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16321-17010	Inlet, Water	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16331-17010	Outlet, Water	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16341-17010	Gasket, Water Outlet	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16346-17010	Gasket, Thermostat	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16346-32010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16361-17010	Fan	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16381-17020	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16381-17030	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16385-17010	Slider, Fan Belt Adjusting	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16400-17110	Radiator Assy	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16400-17130	Radiator Assy	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16400-17140	Radiator Assy	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16401-54750	Radiator Cap	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16401-71010	Cap Sub-Assy(For Water Outlet)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16405-17020	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16417-24200	Plug, Radiator Drain Cock	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16418-24200	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16470-17030	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16567-17020	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16571-17040	Hose, Radiator, Inlet	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16572-17040	Hose, Radiator, Outlet	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16572-17050	Hose, Radiator, Outlet	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16592-17010	Guide, Radiator Air, No.3	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16592-68010	Guide, Radiator Air, No.3	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16592-68011	Guide, Radiator Air, No.3	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16593-17010	Guide, Radiator Air, No.1	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16593-68010	Guide, Radiator Air, No.1	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16594-17010	Guide, Radiator Air, No.2	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16595-17010	Guide, Radiator Air, No.1	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16701-17010	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
16701-17030	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
85338-74040	Hose(For Radiator Drain Cock)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90080-11228	New Genuine Part	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90107-08001	Bolt(for Transaxle Case & Engine Setting)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90116-08335	Stud	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90119-08493	BOLT	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90179-08017	NUT	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90179-08041	NUT	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90179-08183	NUT	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90461-10737	CLAMP	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90466-41008	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90467-42001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90540-10003	Support Assy, Radiator	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90540-10022	Cushion(For Engine Under Cover Bracket)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
90916-03089	Thermostat	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91511-61055	New Genuine Part	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91511-C0835	Bolt(For Transaxle Case & Engine Setting)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91512-61055	BOLT, FLANGE	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91611-B0812	Bolt	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91621-60812	BOLTWWASHER	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91651-40814	BOLT	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91651-40816	BOLT	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91651-B0814	Bolt with washer	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91661-60845	New Genuine Part	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
91665-40845	New Genuine Part	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
94180-40600	Retainer, Roof Window Hinge	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
94180-40800	NUT	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
94613-10800	Spacer (For Control Select Lever Support)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
96111-10490	Clamp Or Clip, Sub Radiator Hose	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
96111-10530	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Radiator & Water Outlet ([01.1990 - ] (9001- )1HZ)
