Search › Model › HZB30

HZB30

Toyota COASTER · 1990 · 5,240 parts · 198 categories

5,240 items

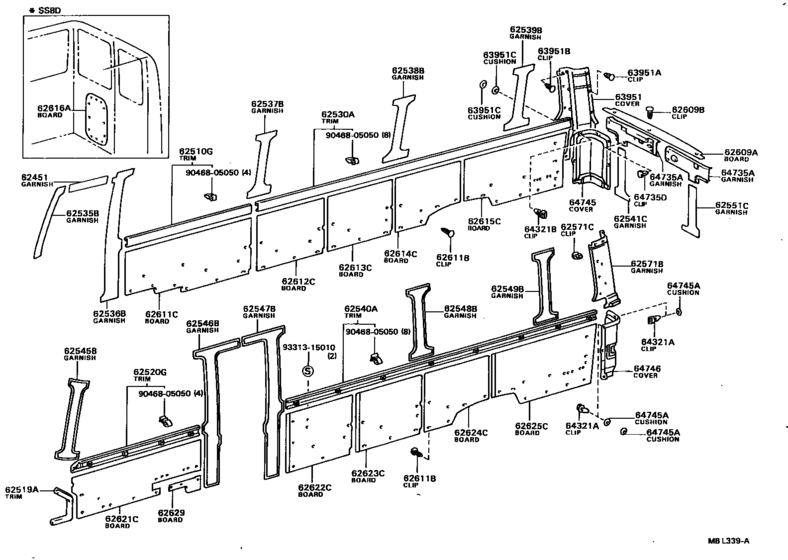

Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD) 43

#	OEM	Part name
62510	62510-90B00-06	Trim Assy, Side No.1, Rh
62519	62519-90B00-08	Trim, Side Lower Window
62519	63391-90B03-08	Trim, Roof Headlining, Front
62520	62520-90B03-06	Trim Assy, Side No.1, Lh
62520	62520-90B02-06	Trim Assy, Side No.1, Lh
62530	62530-90B04-06	Trim Assy, Side No.2, Rh
62540	62540-90B03-06	Trim Assy, Side No.2, Lh
62540	62540-90B04-06	Trim Assy, Side No.2, Lh
62609	62609-90B01-06	Board Sub-Assy, Luggage Partition
62609	62609-90B01-E0	Board Sub-Assy, Luggage Partition
62609	90467-06020-15	Clip (For Luggage Partition Board)
62609	90467-06020-C0	Clip
62611	90467-06020-56	Clip, Roof Headlining
62611	90467-06020-E1	Clip, Roof Headlining
62611	62611-90B35-06	Board, Side Trim No.1, Rh
62611	62611-90B04-06	Board, Side Trim No.1, Rh
62612	62612-90B03-06	Board, Side Trim No.2, Rh
62613	62613-90B00-06	Board, Side Trim No.3, Rh
62614	62614-90B00-06	Board, Side Trim No.3, Rh
62615	62615-90B04-06	Board, Side Trim No.4, Rh
62615	62615-90B00-06	Board, Side Trim No.4, Rh
62615	62615-90B08-06	Board, Side Trim No.4, Rh
62615	62615-90B27-06	Board, Side Trim No.4, Rh
62616	62616-90B01-06	Board, Side Trim No.6
62621	62621-90B36-06	Board, Side Trim No.1, Lh
62621	62621-90B19-06	Board, Side Trim No.1, Lh
62622	62622-90B21-06	Board, Side Trim No.2, Lh
62622	62622-90B03-06	Board, Side Trim No.2, Lh
62623	62623-90B09-06	Board, Side Trim No.3, Lh
62623	62623-90B00-06	Board, Side Trim No.3, Lh
62624	62624-90B00-06	Board, Side Trim No.3, Lh
62625	62625-90B00-06	Board, Side Trim No.4, Lh
62625	62625-90B04-06	Board, Side Trim No.4, Lh
62625	62625-90B01-06	Board, Side Trim No.4, Lh
62625	62625-90B07-06	Board, Side Trim No.4, Lh
62629	62629-90B04-06	Board, Side Trim, Lower No.1 A
64321	64750-90B01	Clip, Rear Combination Cover
64321	64750-90B01-08	Clip, Cooler Pipe Cover
64745	64745-90B01-08	Cover, Rear Combination Lamp Service, Rh
64745	90540-08005	Cushion(For Cooler Pipe Cover)
64746	64746-90B00-08	Cover, Rear Combination Lamp Service, Lh
9046805050	90468-05050	CLIP
9331315010	93313-15010	SCREW

OEM	Part name	Category
62510-90B00-06	Trim Assy, Side No.1, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62519-90B00-08	Trim, Side Lower Window	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62520-90B02-06	Trim Assy, Side No.1, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62520-90B03-06	Trim Assy, Side No.1, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62530-90B04-06	Trim Assy, Side No.2, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62540-90B03-06	Trim Assy, Side No.2, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62540-90B04-06	Trim Assy, Side No.2, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62609-90B01-06	Board Sub-Assy, Luggage Partition	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62609-90B01-E0	Board Sub-Assy, Luggage Partition	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62611-90B04-06	Board, Side Trim No.1, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62611-90B35-06	Board, Side Trim No.1, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62612-90B03-06	Board, Side Trim No.2, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62613-90B00-06	Board, Side Trim No.3, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62614-90B00-06	Board, Side Trim No.3, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62615-90B00-06	Board, Side Trim No.4, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62615-90B04-06	Board, Side Trim No.4, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62615-90B08-06	Board, Side Trim No.4, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62615-90B27-06	Board, Side Trim No.4, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62616-90B01-06	Board, Side Trim No.6	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62621-90B19-06	Board, Side Trim No.1, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62621-90B36-06	Board, Side Trim No.1, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62622-90B03-06	Board, Side Trim No.2, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62622-90B21-06	Board, Side Trim No.2, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62623-90B00-06	Board, Side Trim No.3, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62623-90B09-06	Board, Side Trim No.3, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62624-90B00-06	Board, Side Trim No.3, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62625-90B00-06	Board, Side Trim No.4, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62625-90B01-06	Board, Side Trim No.4, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62625-90B04-06	Board, Side Trim No.4, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62625-90B07-06	Board, Side Trim No.4, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
62629-90B04-06	Board, Side Trim, Lower No.1 A	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
63391-90B03-08	Trim, Roof Headlining, Front	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
64745-90B01-08	Cover, Rear Combination Lamp Service, Rh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
64746-90B00-08	Cover, Rear Combination Lamp Service, Lh	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
64750-90B01	Clip, Rear Combination Cover	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
64750-90B01-08	Clip, Cooler Pipe Cover	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
90467-06020-15	Clip (For Luggage Partition Board)	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
90467-06020-56	Clip, Roof Headlining	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
90467-06020-C0	Clip	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
90467-06020-E1	Clip, Roof Headlining	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
90468-05050	CLIP	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
90540-08005	Cushion(For Cooler Pipe Cover)	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
93313-15010	SCREW	Inside Trim Board ([01.1990 - ] (8610-9001)HB30..RHD ; (9001- )HZB30..RHD)
