Search › Model › HZB30

HZB30

Toyota COASTER · 1990 · 5,240 parts · 198 categories

5,240 items

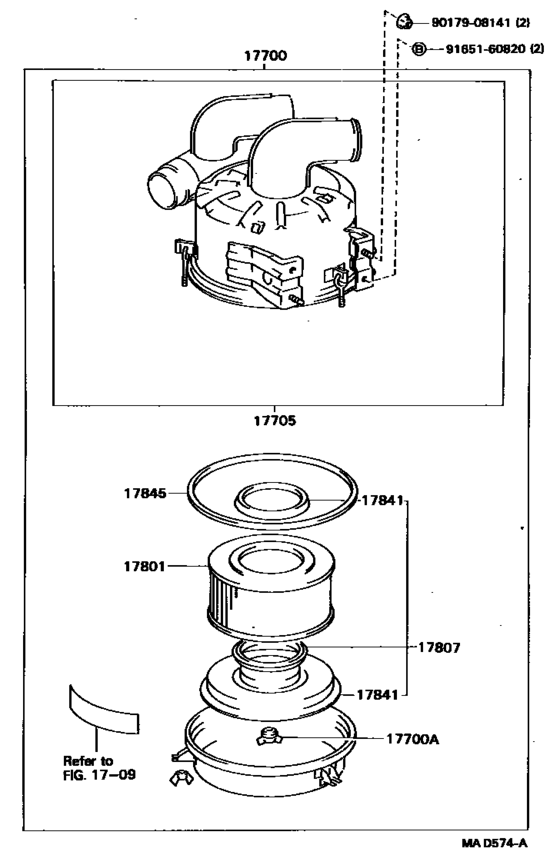

Air Cleaner ([01.1990 - ] (9001- )1HZ) 43

#	OEM	Part name
17700	17700-17110	Cleaner Assy, Air
17700	90175-08008	Nut, Wing(For Air Cleaner)
17705	17705-17040	Cap Sub-Assy, Air Cleaner
17709	17709-90B02	Inlet Sub-Assy, Air Cleaner
17710	17771-90B02	Bracket Sub-Assy, Air Cleaner Inlet Duct
17710	53773-90B00	Bracket, Air Cleaner Inlet, No.2 - AIR CLEANER INLET DUCT
17730	17730-58020	Precleaner Assy, Air W/hose
17801	17801-61030	Element Sub-Assy, Air Cleaner Filter
17807	17807-68010	Plate Sub-Assy, Air Cleaner Filter Set
17841	17841-68010	Gasket, Filter Element
17845	17845-68020	Gasket, Air Cleaner Cap
17845	17845-17010	Gasket, Air Cleaner Cap
17881	59131-90B04	Hose, Air Cleaner, No.1
17881	59141-90B00	Hose, Air Cleaner, No.1
17881	96111-10830	Clamp, Hose(For Air Connector)
17881	17781-90B03	Hose, Air Cleaner, No.1
17882	59132-90B05	Hose, Air Cleaner, No.2
17882	96111-10950	Clamp(For Air Cleaner Hose, No.1)
17883	59140-90B02	Hose, Air Cleaner, No.3
17883	96111-10850	Clamp, Hose(For Air Connector)
17883	90480-99007	Grommet, Air Cleaner Hose
17883	59133-90B07	Hose, Air Cleaner, No.3
17883	90480-99006	Grommet, Air Cleaner Hose
17884	59137-90B03	Box, Air Cleaner, No.1
17884	59138-90B01	Box, Air Cleaner, No.1
17884	59139-90B00	Box, Air Cleaner, No.1
17884	53296-90B00	Band, Air Cleaner Box
17884	59136-90B01	Band, Air Cleaner Box
17885	59101-90B05	Pipe, Air Cleaner
17885	59117-90B01	Plate, Pipe Support
9011908362	90119-08362	BOLT
9011908565	90119-08565	BOLT
9017908141	90179-08141	Nut (For Transmission Control Cable)
9017908141	90179-08038	Nut
9038708016	90387-08016	Collar(For Intake Air Connector)
9038710092	90387-10092	New Genuine Part
9048016005	90480-16005	Grommet(For Air Cleaner Bracket)
9048016016	90480-16016	New Genuine Part
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9354054010	93540-54010	Screw, Roof Headlining Trim
9418040800	94180-40800	NUT
9481410800	94814-10800	New Genuine Part

OEM	Part name	Category
17700-17110	Cleaner Assy, Air	Air Cleaner ([01.1990 - ] (9001- )1HZ)
17705-17040	Cap Sub-Assy, Air Cleaner	Air Cleaner ([01.1990 - ] (9001- )1HZ)
17709-90B02	Inlet Sub-Assy, Air Cleaner	Air Cleaner ([01.1990 - ] (9001- )1HZ)
17730-58020	Precleaner Assy, Air W/hose	Air Cleaner ([01.1990 - ] (9001- )1HZ)
17771-90B02	Bracket Sub-Assy, Air Cleaner Inlet Duct	Air Cleaner ([01.1990 - ] (9001- )1HZ)
17781-90B03	Hose, Air Cleaner, No.1	Air Cleaner ([01.1990 - ] (9001- )1HZ)
17801-61030	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([01.1990 - ] (9001- )1HZ)
17807-68010	Plate Sub-Assy, Air Cleaner Filter Set	Air Cleaner ([01.1990 - ] (9001- )1HZ)
17841-68010	Gasket, Filter Element	Air Cleaner ([01.1990 - ] (9001- )1HZ)
17845-17010	Gasket, Air Cleaner Cap	Air Cleaner ([01.1990 - ] (9001- )1HZ)
17845-68020	Gasket, Air Cleaner Cap	Air Cleaner ([01.1990 - ] (9001- )1HZ)
53296-90B00	Band, Air Cleaner Box	Air Cleaner ([01.1990 - ] (9001- )1HZ)
53773-90B00	Bracket, Air Cleaner Inlet, No.2 - AIR CLEANER INLET DUCT	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59101-90B05	Pipe, Air Cleaner	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59117-90B01	Plate, Pipe Support	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59131-90B04	Hose, Air Cleaner, No.1	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59132-90B05	Hose, Air Cleaner, No.2	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59133-90B07	Hose, Air Cleaner, No.3	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59136-90B01	Band, Air Cleaner Box	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59137-90B03	Box, Air Cleaner, No.1	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59138-90B01	Box, Air Cleaner, No.1	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59139-90B00	Box, Air Cleaner, No.1	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59140-90B02	Hose, Air Cleaner, No.3	Air Cleaner ([01.1990 - ] (9001- )1HZ)
59141-90B00	Hose, Air Cleaner, No.1	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90119-08362	BOLT	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90119-08565	BOLT	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90175-08008	Nut, Wing(For Air Cleaner)	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90179-08038	Nut	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90179-08141	Nut (For Transmission Control Cable)	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90387-08016	Collar(For Intake Air Connector)	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90387-10092	New Genuine Part	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90480-16005	Grommet(For Air Cleaner Bracket)	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90480-16016	New Genuine Part	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90480-99006	Grommet, Air Cleaner Hose	Air Cleaner ([01.1990 - ] (9001- )1HZ)
90480-99007	Grommet, Air Cleaner Hose	Air Cleaner ([01.1990 - ] (9001- )1HZ)
91651-60820	Bolt, Radiator Side Support Plate	Air Cleaner ([01.1990 - ] (9001- )1HZ)
91651-B0820	Bolt, Radiator Side Support Plate	Air Cleaner ([01.1990 - ] (9001- )1HZ)
93540-54010	Screw, Roof Headlining Trim	Air Cleaner ([01.1990 - ] (9001- )1HZ)
94180-40800	NUT	Air Cleaner ([01.1990 - ] (9001- )1HZ)
94814-10800	New Genuine Part	Air Cleaner ([01.1990 - ] (9001- )1HZ)
96111-10830	Clamp, Hose(For Air Connector)	Air Cleaner ([01.1990 - ] (9001- )1HZ)
96111-10850	Clamp, Hose(For Air Connector)	Air Cleaner ([01.1990 - ] (9001- )1HZ)
96111-10950	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([01.1990 - ] (9001- )1HZ)
