HWH

Honda CONCERTO · 1990 · 2,398 parts · 126 categories
HWH ×

← Back to categories

2,398 items

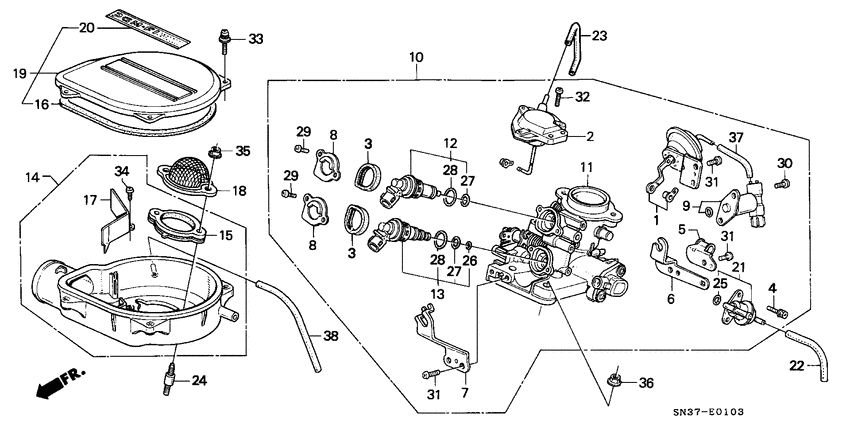

Throttle body (PGM-FI; 1.5L) 30
#OEMPart name
1 16043-PM5-A01 Diaphragm assy. - TANDEM
2 16044-PM5-A01 Diaphragm assy. - THROTTLE DASHPOT
3 16077-PM5-A01 Rubber - MOUNTING
4 16081-PH5-005 Bolt-washer - 5X16
5 16119-PM5-A00 Binder
6 16120-PM5-A50 Stay - WIRE (AT)
7 16169-PM5-A00 Stay - THROTTLE WIRE
8 16172-PM5-A00 Plate - SET
9 16230-PM5-A01 Valve - SOLENOID TANDEM CONTROL
10 16400-PM5-S02 Throttle Body Assy - GG03A
10 16400-PM5-S52 Throttle Body Assy - GG04A
11 16401-PM5-S00 Body sub assy. - THROTTLE
11 16401-PM5-S50 Body sub assy. - THROTTLE
12 16450-PM5-A01 Injector - MAIN
13 16460-PM5-A01 Injector - AUXILIARY
14 16480-PM5-A00 Case assy. - AIR CHAMBER
15 16482-PM5-A00 Insulator - AIR CHAMBER CASE
16 16484-PM5-A00 Packing - AIR CHAMBER COVER
17 16485-PM5-A00 Plate - RECTIFY
18 16487-PM5-A01 Supporter comp.
19 16488-PM5-A00 Cover assy. - AIR CHAMBER
20 16489-PM5-A00 Emblem - AIR CHAMBER (DUAL POINT/PGM-FI)
21 16740-PM5-A01 Regulator assy - PRESSURE
22 17416-PM5-A01 Tube - SPECIAL, 3.5X105
23 17418-PM5-A01 Tube - SPECIAL, 3.5X155
24 90034-PM5-A00 Bolt - AIR CHAMBER STUD
25 91301-PM5-A01 O-ring - 9.8X1.9
26 91303-PM5-A02 O-ring
27 91304-PM5-A02 O-ring
28 91305-PM5-A02 O-ring
