HU30

Toyota DYNA-TOYOACE · 1977 · 3,787 parts · 159 categories
HU30 ×

← Back to categories

3,787 items

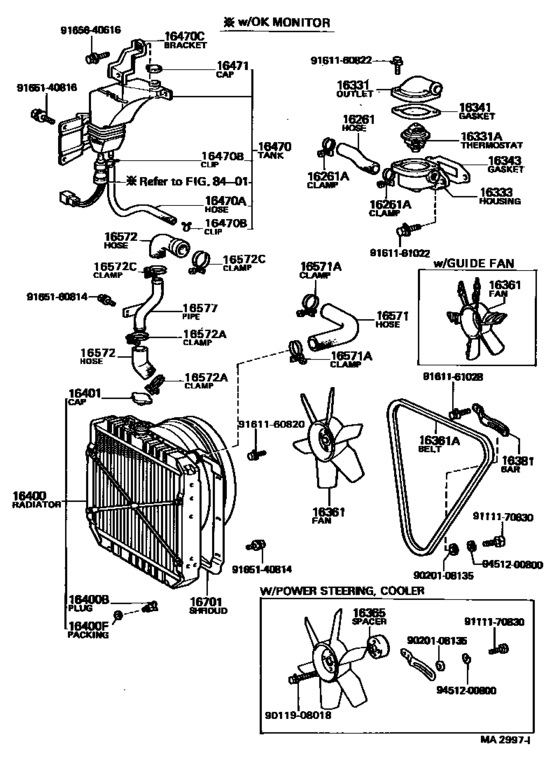

Radiator & Water Outlet ([08.1977 - 08.1980] (7708-8008)H) 52
#OEMPart name
16261 90910-06014 Hose, Water By-Pass
16261 96112-10270 Clamp Or Clip, Hose(For Water By-Pass Hose)
16331 16331-56010 Outlet, Water
16331 90916-03026 Thermostat
16331 90916-03050 Thermostat
16333 16333-47011 Housing, Water Outlet
16333 16333-47012 Housing, Water Outlet
16341 16341-51010 Gasket, Water Outlet
16341 16341-51011 Gasket, Water Outlet
16343 16343-47010 Gasket, Water Outlet Housing
16361 16361-47010 Fan
16361 90916-02030 Belt, V(For Fan & Alternator)
16365 16365-48010 Spacer, Fan
16381 16381-47012 Bar, Fan Belt Adjusting
16400 16400-47042 Radiator Assy
16400 16400-47043 Radiator Assy
16400 16417-24200 Plug, Radiator Drain Cock
16400 16418-24200 Packing(For Radiator Drain Cock)
16401 16401-41021 Cap Sub-Assy, Radiator
16470 16470-48040 Tank Assy, Radiator Reserve
16470 16470-48050 Tank Assy, Radiator Reserve
16470 90445-12005 Hose Or Pipe(For Radiator Reserve Tank)
16470 90445-12897 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16611-48030 Bracket(For Radiator Reserve Tank)
16471 16471-34030 Cap Sub-Assy, Reserve Tank
16571 16571-47020 Hose, Radiator, Inlet
16571 96111-10500 Clamp, Sub Radiator Inlet Hose
16572 16572-47010 Hose, Radiator, Outlet
16572 16573-47010 Hose, Radiator, Outlet
16572 96111-10560 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16577 16507-47020 Pipe, Radiator, No.7
16701 16701-47010 Shroud Sub-Assy, Fan
16701 16701-47020 Shroud Sub-Assy, Fan
9011908018 90119-08018 Bolt, Hexagon(For Idler Arm Support Setting)
9020108135 90201-08135 Washer, Plate (For Control Shaft Lower Bracket)
9111170830 91111-70830 New Genuine Part
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9161160820 91611-G0820 Bolt
9161160822 91611-60822 Bolt
9161161022 91611-61022 Bolt (For Transmission Control Cable Bracket)
9161161022 91612-61022 Bolt (For Transmission Control Cable Bracket)
9161161028 91611-61028 Bolt(For Transaxle Case & Engine Setting)
9161161028 91612-61028 Bolt(For Transaxle Case & Engine Setting)
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140816 91651-40816 BOLT
9165160814 91651-60814 Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814 91651-B0814 Bolt with washer
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
