HU30

Toyota DYNA-TOYOACE · 1977 · 3,787 parts · 159 categories
HU30 ×

← Back to categories

3,787 items

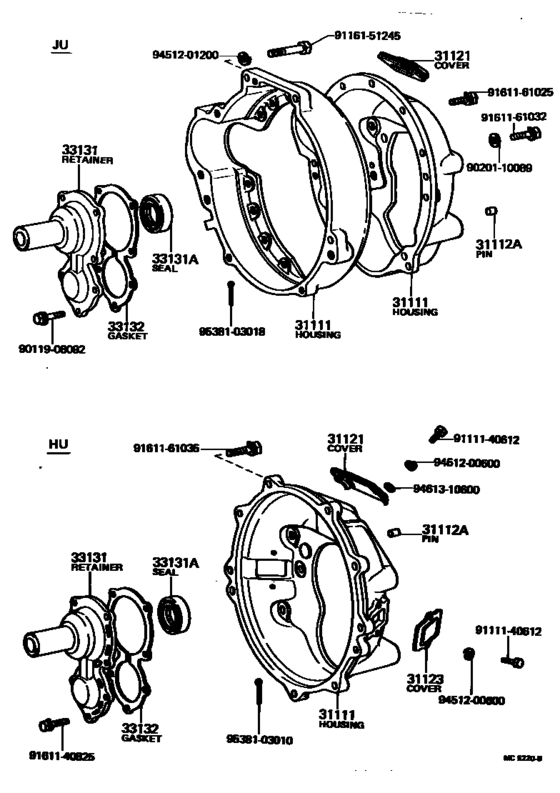

Clutch Housing & Transmission Case (Mtm) ([08.1977 - 08.1980] (7708-8008)HU30,JU20) 25
#OEMPart name
31111 31111-36030 Housing, Clutch
31112 90250-10052 Pin, Straight(For Flywheel Housing)
31121 31121-36020 Cover, Clutch Housing, No.1
31123 31123-36020 Cover, Clutch Housing, No.2
33131 33131-60020 Retainer, Bearing, Front(Mtm)
33131 90311-28004 Seal, Oil(For Transmission Front Bearing Retainer)
33132 33132-36010 Gasket, Front Bearing Retainer(Mtm)
9011908092 90119-08092 Bolt(For Front Bearing Retainer Setting)
9020110089 90201-10089 Washer, Plate(For Steering Tilt Lever)
9020110089 90201-10283 Washer, Plate(For Steering Tilt Lever)
9111140612 91111-40612 New Genuine Part
9116151245 91161-51245 New Genuine Part
9161140825 91611-40825 Bolt(For Clutch Release Cylinder Setting)
9161140825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161161025 91611-61025 Bolt(For Transaxle & Engine Setting)
9161161025 91612-61025 Bolt (For Control Shaft Cover)
9161161032 91611-61032 New Genuine Part
9161161032 91612-61032 New Genuine Part
9161161035 91611-61035 BOLT
9161161035 91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9451201200 94512-01200 Washer
9461310600 94613-10600 New Genuine Part
9538103010 95381-03010 New Genuine Part
9538103018 95381-03018 New Genuine Part
