HT81S

Suzuki KEI-SWIFT · 2003 · 2,090 parts · 97 categories

2,090 items

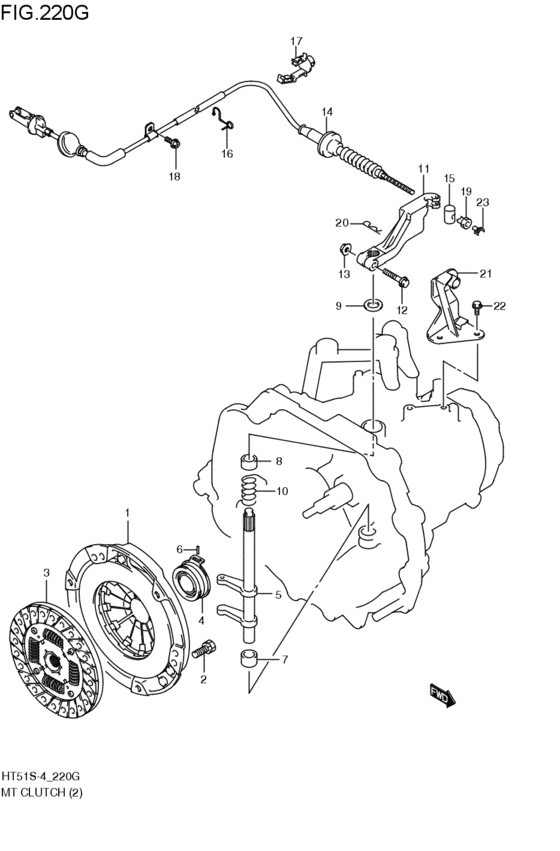

mt - clutch (M15A:MT; 2003-06-01~2005-03-01) 33

#	OEM	Part name
1	22100-60J00-000	COVER ASSY,CLUTCH
2	09117-08096-000	BOLT(8X16)
3	22400-60J00-000	DISC,CLUTCH
4	23265-65G00-000	BEARING,CLUTCH RELEASE
5	23260-63J20-000	SHAFT,CLUTCH RELEASE
5	23260-86G40-000	SHAFT,CLUTCH RELEASE
6	09205-03019-000	PIN,SPRING(3X10) - Pin, tilt lock
7	09300-16010-000	BUSH(16X24X19)
8	09300-16009-000	BUSH(16X20X20)
9	09284-16004-000	SEAL,OIL(16X24X5)
10	23269-60J00-000	SPRING,RELEASE SHAFT RETURN
11	23266-83E00-000	ARM,CLUTCH RELEASE
11	23266-83E20-000	ARM,CLUTCH RELEASE
12	01550-08303-000	Bolt
12	01550-0830B-000	Bolt
12	01550-0830A-000	Bolt - Bolt, mount oil seal cover
12	01550-08403-000	Bolt
12	01550-0840B-000	Bolt
12	01550-0840A-000	Bolt
13	08316-1008A-000	NUT - Nut, idle gear shaft
14	23710-60J20-000	CABLE ASSY,CLUTCH
15	09209-13018-000	PIN(13X18)
16	23915-60J00-000	CLAMP,CLUTCH CABLE NO.2,R
17	09403-17305-000	CLAMP
18	02162-06123-000	Bolt (6x12)
18	02162-0612B-000	SCREW - Bolt
18	02162-0612A-000	SCREW - Bolt, bracket
19	09150-06014-000	Nut
19	09150-06010-000	NUT
20	09385-10005-000	CLIP
21	23910-86G40-000	BRACKET,CLUTCH CABLE
22	09103-08334-000	BOLT(8X16)
23	23922-76G00-000	CAP,CLUTCH CABLE JOINT LOCK

OEM	Part name	Category
01550-08303-000	Bolt	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
01550-0830A-000	Bolt - Bolt, mount oil seal cover	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
01550-0830B-000	Bolt	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
01550-08403-000	Bolt	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
01550-0840A-000	Bolt	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
01550-0840B-000	Bolt	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
02162-06123-000	Bolt (6x12)	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
02162-0612A-000	SCREW - Bolt, bracket	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
02162-0612B-000	SCREW - Bolt	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
08316-1008A-000	NUT - Nut, idle gear shaft	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09103-08334-000	BOLT(8X16)	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09117-08096-000	BOLT(8X16)	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09150-06010-000	NUT	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09150-06014-000	Nut	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09205-03019-000	PIN,SPRING(3X10) - Pin, tilt lock	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09209-13018-000	PIN(13X18)	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09284-16004-000	SEAL,OIL(16X24X5)	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09300-16009-000	BUSH(16X20X20)	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09300-16010-000	BUSH(16X24X19)	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09385-10005-000	CLIP	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
09403-17305-000	CLAMP	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
22100-60J00-000	COVER ASSY,CLUTCH	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
22400-60J00-000	DISC,CLUTCH	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
23260-63J20-000	SHAFT,CLUTCH RELEASE	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
23260-86G40-000	SHAFT,CLUTCH RELEASE	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
23265-65G00-000	BEARING,CLUTCH RELEASE	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
23266-83E00-000	ARM,CLUTCH RELEASE	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
23266-83E20-000	ARM,CLUTCH RELEASE	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
23269-60J00-000	SPRING,RELEASE SHAFT RETURN	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
23710-60J20-000	CABLE ASSY,CLUTCH	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
23910-86G40-000	BRACKET,CLUTCH CABLE	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
23915-60J00-000	CLAMP,CLUTCH CABLE NO.2,R	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
23922-76G00-000	CAP,CLUTCH CABLE JOINT LOCK	mt - clutch (M15A:MT; 2003-06-01~2005-03-01)
