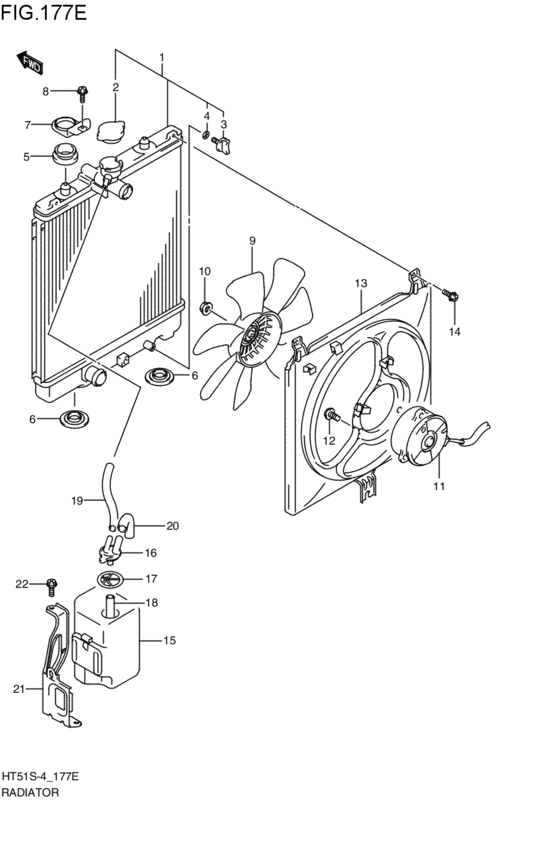

| 02142-05103-000 |
Screw 5x10 |
radiator (2003-06-01~2005-11-01) |
| 02142-0510B-000 |
SCREW - Bolt |
radiator (2003-06-01~2005-11-01) |
| 02162-06123-000 |
Bolt (6x12) |
radiator (2003-06-01~2005-11-01) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
radiator (2003-06-01~2005-11-01) |
| 02162-0612B-000 |
SCREW - Bolt |
radiator (2003-06-01~2005-11-01) |
| 02162-06163-000 |
Screw - Bolt |
radiator (2003-06-01~2005-11-01) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
radiator (2003-06-01~2005-11-01) |
| 08316-20053-000 |
Nut |
radiator (2003-06-01~2005-11-01) |
| 08316-2005A-000 |
NUT |
radiator (2003-06-01~2005-11-01) |
| 09352-70111-600 |
HOSE(7X11X600) |
radiator (2003-06-01~2005-11-01) |
| 09352-70121-600 |
HOSE(7X12.1X600) - Hose (inmani to iac) |
radiator (2003-06-01~2005-11-01) |
| 17111-80G00-000 |
FAN,COOLING |
radiator (2003-06-01~2005-11-01) |
| 17120-80G00-000 |
MOTOR,COOLING FAN |
radiator (2003-06-01~2005-11-01) |
| 17700-79C01-000 |
RADIATOR ASSY |
radiator (2003-06-01~2005-11-01) |
| 17700-80G00-000 |
RADIATOR ASSY |
radiator (2003-06-01~2005-11-01) |
| 17751-61A00-000 |
PLUG,DRAIN |
radiator (2003-06-01~2005-11-01) |
| 17759-72010-000 |
O-RING |
radiator (2003-06-01~2005-11-01) |
| 17760-80G01-000 |
SHROUD |
radiator (2003-06-01~2005-11-01) |
| 17861-73H00-000 |
BRACKET,RDTR SUPPORT |
radiator (2003-06-01~2005-11-01) |
| 17878-80G00-000 |
MOUNT,RDTR SUPPORT LWR |
radiator (2003-06-01~2005-11-01) |
| 17879-75F00-000 |
MOUNT,RDTR SUPPORT UPR |
radiator (2003-06-01~2005-11-01) |
| 17920-75F00-000 |
CAP,RADIATOR |
radiator (2003-06-01~2005-11-01) |
| 17931-78F00-000 |
TANK,WATER RESERVOIR |
radiator (2003-06-01~2005-11-01) |
| 17932-60G10-000 |
CAP,WATER RESERVE TANK |
radiator (2003-06-01~2005-11-01) |
| 17933-60B00-000 |
RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
radiator (2003-06-01~2005-11-01) |
| 17936-78F00-000 |
HOSE,RSVR TANK VENT |
radiator (2003-06-01~2005-11-01) |
| 17937-78F01-000 |
BRACKET,WTR RSVR TANK |
radiator (2003-06-01~2005-11-01) |
