Search › Model › HSS
HSS

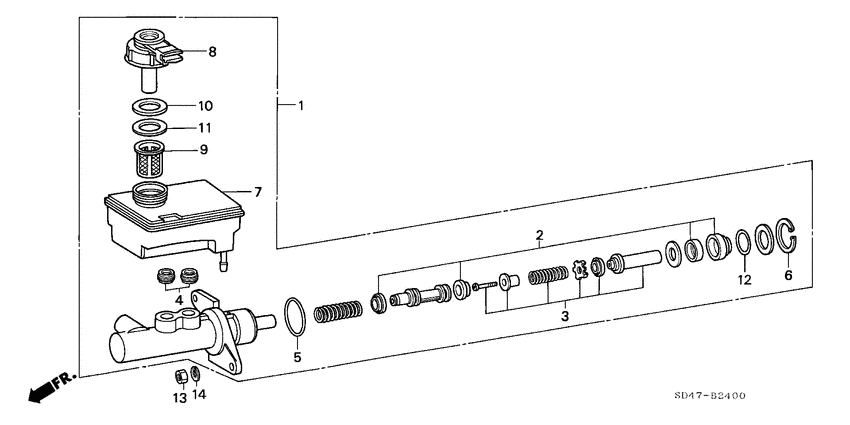

Brake master cylinder ('86,'87) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 46100-SG9-G00 | Cylinder assy. - MASTER |
| 2 | 46122-SG9-V00 | Piston assy. - SECONDARY |
| 3 | 46122-SG9-000 | Plunger assy - SECONDARY |
| 4 | 46124-SG9-V00 | Seal kit - RESERVE |
| 5 | 46125-SG9-000 | O-ring |
| 6 | 46182-SG9-000 | Circlip |
| 7 | 46660-SG9-000 | Tank - RESERVE |
| 8 | 46662-SG9-V00 | Cap comp. - RESERVE TANK |
| 9 | 46666-SG9-000 | Filter - BRAKE RESERVOIR |
| 10 | 46667-SG9-000 | Seal - RESERVE TANK CAP |
| 11 | 46668-SG9-000 | Spacer - MASTER CYLINDER RESERVE TANK CAP |
| 12 | 57173-SG9-000 | O-ring |
| OEM | Part name | Category |
|---|---|---|
| 46100-SG9-G00 | Cylinder assy. - MASTER | Brake master cylinder ('86,'87) |
| 46122-SG9-000 | Plunger assy - SECONDARY | Brake master cylinder ('86,'87) |
| 46122-SG9-V00 | Piston assy. - SECONDARY | Brake master cylinder ('86,'87) |
| 46124-SG9-V00 | Seal kit - RESERVE | Brake master cylinder ('86,'87) |
| 46125-SG9-000 | O-ring | Brake master cylinder ('86,'87) |
| 46182-SG9-000 | Circlip | Brake master cylinder ('86,'87) |
| 46660-SG9-000 | Tank - RESERVE | Brake master cylinder ('86,'87) |
| 46662-SG9-V00 | Cap comp. - RESERVE TANK | Brake master cylinder ('86,'87) |
| 46666-SG9-000 | Filter - BRAKE RESERVOIR | Brake master cylinder ('86,'87) |
| 46667-SG9-000 | Seal - RESERVE TANK CAP | Brake master cylinder ('86,'87) |
| 46668-SG9-000 | Spacer - MASTER CYLINDER RESERVE TANK CAP | Brake master cylinder ('86,'87) |
| 57173-SG9-000 | O-ring | Brake master cylinder ('86,'87) |
