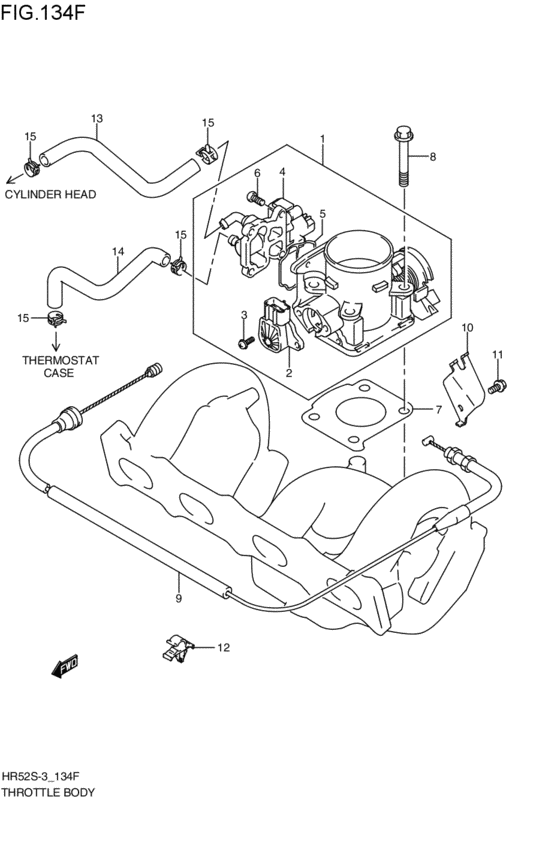

| 01550-06123-000 |
Bolt |
throttle body (2005-04-01~2005-11-01) |
| 01550-0612A-000 |
Bolt |
throttle body (2005-04-01~2005-11-01) |
| 01550-0612B-000 |
Bolt - Bolt, clamp |
throttle body (2005-04-01~2005-11-01) |
| 01550-0855A-000 |
Bolt - Bolt, gear holder |
throttle body (2005-04-01~2005-11-01) |
| 09401-12410-000 |
CLIP - Clip, filter outlet |
throttle body (2005-04-01~2005-11-01) |
| 09403-05317-000 |
CLAMP |
throttle body (2005-04-01~2005-11-01) |
| 09408-00240-000 |
CLAMP |
throttle body (2005-04-01~2005-11-01) |
| 13400-69G02-000 |
BODY ASSY,THROTTLE |
throttle body (2005-04-01~2005-11-01) |
| 13420-65D00-000 |
SENSORTHRTL POSITION |
throttle body (2005-04-01~2005-11-01) |
| 13420-65D01-000 |
SENSOR,THROTTLE POSITION |
throttle body (2005-04-01~2005-11-01) |
| 13421-54G10-000 |
GASKET,THROTTLE BODY |
throttle body (2005-04-01~2005-11-01) |
| 13428-77G10-000 |
Screw |
throttle body (2005-04-01~2005-11-01) |
| 13428-77G1V-000 |
SCREW,4X12 |
throttle body (2005-04-01~2005-11-01) |
| 13491-80GA0-000 |
HOSE,WTR THROT BODY INLET |
throttle body (2005-04-01~2005-11-01) |
| 13492-80GA0-000 |
HOSE,WTR THROT BODY OUTLET |
throttle body (2005-04-01~2005-11-01) |
| 13601-05148-000 |
SCREW(5X14) |
throttle body (2005-04-01~2005-11-01) |
| 13601-05148-XC0 |
SCREW(5X14) |
throttle body (2005-04-01~2005-11-01) |
| 14139-70G30-000 |
GASKET,ISC VALVE |
throttle body (2005-04-01~2005-11-01) |
| 15910-80GA0-000 |
ケーブルアッシ,アクセル |
throttle body (2005-04-01~2005-11-01) |
| 15910-80GA1-000 |
CABLE ASSY,ACCEL |
throttle body (2005-04-01~2005-11-01) |
| 15919-80GA1-000 |
GUIDE,CABLE |
throttle body (2005-04-01~2005-11-01) |
| 18117-78F11-000 |
VALVE,ISC |
throttle body (2005-04-01~2005-11-01) |
