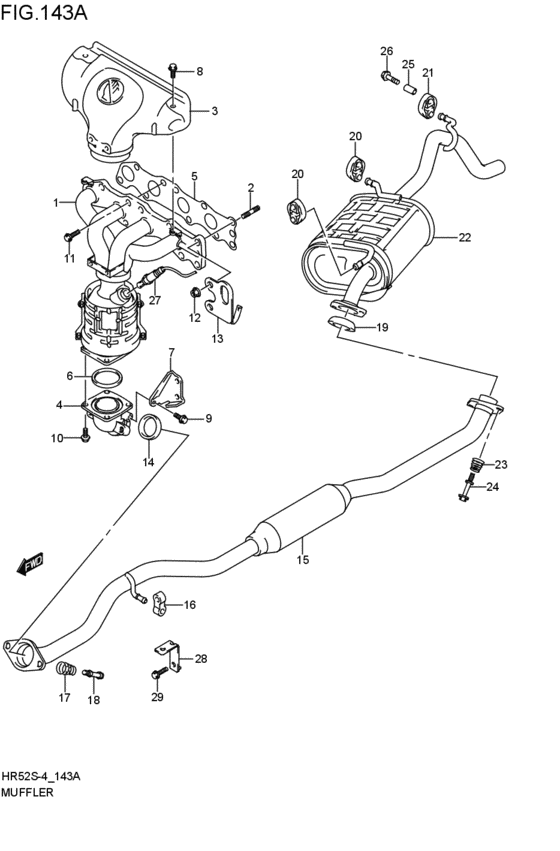

muffler (2006-05-01~)
34
| # | OEM | Part name |
|---|
| 1 |
14110-70H02-000 |
マニホールド,エキゾースト |
| 1 |
14110-70H05-H02 |
MANIFOLD,EXH |
| 1 |
14110-70H30-000 |
Manifold,exh |
| 1 |
14110-70H31-000 |
MANIFOLD,EXH |
| 2 |
14118-63J00-000 |
STUD BOLT,EXH MANF |
| 3 |
14120-70H02-000 |
COVER,EXH MANF |
| 4 |
14137-70H00-000 |
PIPE,CTLST OUTLET |
| 5 |
14140-69G01-000 |
GASKETEXH MANF |
| 5 |
14140-69G02-000 |
GASKET,EXH MANF |
| 6 |
14181-70H00-000 |
GASKET,EXH MANF |
| 7 |
14271-70H00-000 |
STIFFENER,EXH MANF |
| 8 |
01550-06167-000 |
Bolt |
| 9 |
09103-10324-000 |
BOLT(10X20) |
| 11 |
09135-10011-000 |
BOLT(10X26) |
| 12 |
08316-1010A-000 |
NUT - Nut, kick starter |
| 13 |
11851-70H01-000 |
HOOK,ENGINE |
| 14 |
14183-65D00-000 |
RING,SEAL EXH PIPE |
| 15 |
14250-70H00-000 |
PIPE,EXH NO.2 |
| 16 |
14281-71C01-000 |
MOUNTING,MUF |
| 17 |
14492-67D00-000 |
SPRING,EXH PIPE |
| 18 |
09119-10073-000 |
BOLT(10X65) |
| 19 |
14183-76A00-000 |
RING,SEAL EXH PIPE |
| 20 |
14281-80JA0-000 |
MOUNTING,MUF |
| 21 |
14281-80G00-000 |
MOUNTING,MUF |
| 22 |
14300-70H10-000 |
マフラ |
| 25 |
09180-08057-000 |
Spacer |
| 25 |
09180-08227-000 |
SPACER(8.2X12.5X23.5) |
| 26 |
01551-0835A-000 |
Bolt |
| 27 |
18213-70H01-000 |
SENSOR ASSYOXYGEN |
| 27 |
18213-70H02-000 |
SENSOR,OXYGEN |
| 27 |
18213-57K00-000 |
センサ,オキシジェン |
| 27 |
18213-57K01-000 |
SENSOR,OXYGEN |
| 28 |
18214-60J00-000 |
BRACKET,OXYGEN SENSOR |
| 29 |
01550-0612A-000 |
Bolt |
| OEM |
Part name |
Category |
| 01550-0612A-000 |
Bolt |
muffler (2006-05-01~) |
| 01550-06167-000 |
Bolt |
muffler (2006-05-01~) |
| 01551-0835A-000 |
Bolt |
muffler (2006-05-01~) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
muffler (2006-05-01~) |
| 09103-10324-000 |
BOLT(10X20) |
muffler (2006-05-01~) |
| 09119-10073-000 |
BOLT(10X65) |
muffler (2006-05-01~) |
| 09135-10011-000 |
BOLT(10X26) |
muffler (2006-05-01~) |
| 09180-08057-000 |
Spacer |
muffler (2006-05-01~) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
muffler (2006-05-01~) |
| 11851-70H01-000 |
HOOK,ENGINE |
muffler (2006-05-01~) |
| 14110-70H02-000 |
マニホールド,エキゾースト |
muffler (2006-05-01~) |
| 14110-70H05-H02 |
MANIFOLD,EXH |
muffler (2006-05-01~) |
| 14110-70H30-000 |
Manifold,exh |
muffler (2006-05-01~) |
| 14110-70H31-000 |
MANIFOLD,EXH |
muffler (2006-05-01~) |
| 14118-63J00-000 |
STUD BOLT,EXH MANF |
muffler (2006-05-01~) |
| 14120-70H02-000 |
COVER,EXH MANF |
muffler (2006-05-01~) |
| 14137-70H00-000 |
PIPE,CTLST OUTLET |
muffler (2006-05-01~) |
| 14140-69G01-000 |
GASKETEXH MANF |
muffler (2006-05-01~) |
| 14140-69G02-000 |
GASKET,EXH MANF |
muffler (2006-05-01~) |
| 14181-70H00-000 |
GASKET,EXH MANF |
muffler (2006-05-01~) |
| 14183-65D00-000 |
RING,SEAL EXH PIPE |
muffler (2006-05-01~) |
| 14183-76A00-000 |
RING,SEAL EXH PIPE |
muffler (2006-05-01~) |
| 14250-70H00-000 |
PIPE,EXH NO.2 |
muffler (2006-05-01~) |
| 14271-70H00-000 |
STIFFENER,EXH MANF |
muffler (2006-05-01~) |
| 14281-71C01-000 |
MOUNTING,MUF |
muffler (2006-05-01~) |
| 14281-80G00-000 |
MOUNTING,MUF |
muffler (2006-05-01~) |
| 14281-80JA0-000 |
MOUNTING,MUF |
muffler (2006-05-01~) |
| 14300-70H10-000 |
マフラ |
muffler (2006-05-01~) |
| 14492-67D00-000 |
SPRING,EXH PIPE |
muffler (2006-05-01~) |
| 18213-57K00-000 |
センサ,オキシジェン |
muffler (2006-05-01~) |
| 18213-57K01-000 |
SENSOR,OXYGEN |
muffler (2006-05-01~) |
| 18213-70H01-000 |
SENSOR ASSYOXYGEN |
muffler (2006-05-01~) |
| 18213-70H02-000 |
SENSOR,OXYGEN |
muffler (2006-05-01~) |
| 18214-60J00-000 |
BRACKET,OXYGEN SENSOR |
muffler (2006-05-01~) |
