Search › Model › HR52S
HR52S

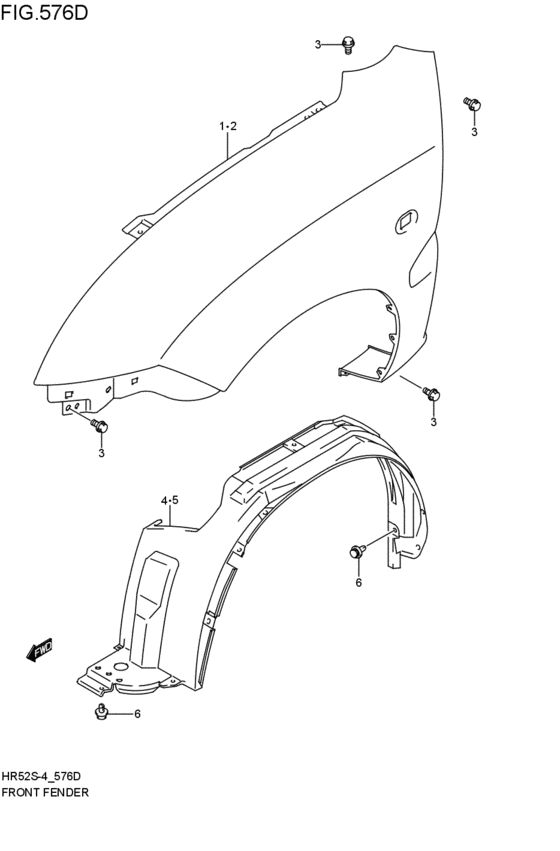

front fender (2006-05-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 57611-70H00-000 | PANEL,FR FENDER,R |
| 2 | 57711-70H00-000 | PANEL,FR FENDER,L |
| 3 | 01550-0612A-000 | Bolt |
| 4 | 72321-70H01-000 | LINING,FR FENDER,R |
| 5 | 72322-70H01-000 | LINING,FR FENDER,L |
| 6 | 09409-07332-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | front fender (2006-05-01~) |
| 09409-07332-000 | CLIP | front fender (2006-05-01~) |
| 57611-70H00-000 | PANEL,FR FENDER,R | front fender (2006-05-01~) |
| 57711-70H00-000 | PANEL,FR FENDER,L | front fender (2006-05-01~) |
| 72321-70H01-000 | LINING,FR FENDER,R | front fender (2006-05-01~) |
| 72322-70H01-000 | LINING,FR FENDER,L | front fender (2006-05-01~) |
