Search › Model › HR52S
HR52S

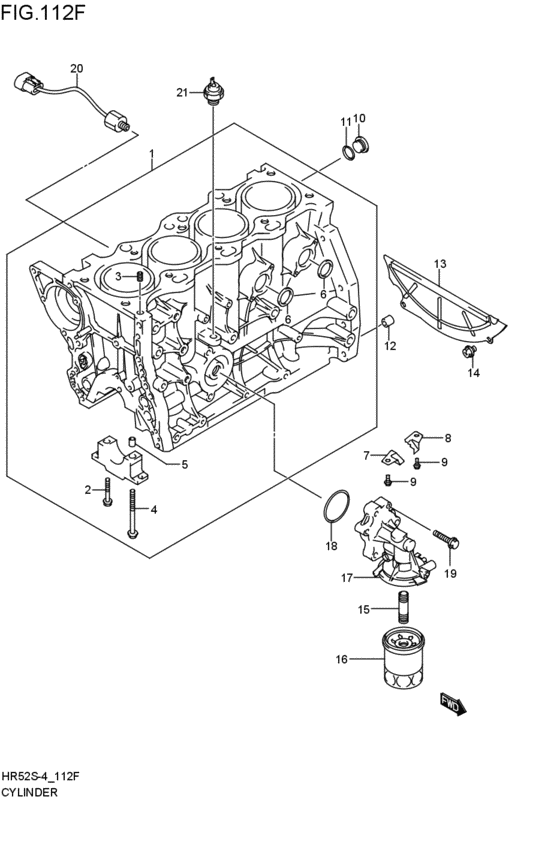

Cylinder (2006-05-01~) 30
| # | OEM | Part name |
|---|---|---|
| 1 | 11200-69G05-000 | ブロックアッシ,シリンダ |
| 1 | 11200-69G08-X12 | BLOCK ASSY,CYLINDER M13A |
| 1 | 11200-69G09-X12 | BLOCK ASSY,CYLINDER M13A |
| 2 | 01550-0840A-000 | Bolt |
| 3 | 11112-73010-000 | PLUG,OIL VENTURI |
| 4 | 11260-69G00-000 | Bolt,crank bearing cap,10x97 |
| 4 | 11260-69G01-000 | BOLT,CRANK BEARING CAP |
| 5 | 04211-13189-000 | PIN |
| 6 | 09241-30010-000 | PLUG |
| 7 | 11213-69G00-000 | PLATE,BREATHER FRONT |
| 8 | 11214-69G00-000 | PLATE,BREATHER REAR |
| 9 | 01550-0612A-000 | Bolt |
| 10 | 09248-18010-000 | PLUG(18X15) |
| 11 | 11216-77E00-000 | GASKET,M18 PLUG |
| 12 | 09202-08004-000 | PIN(8X23) |
| 13 | 11320-69G00-000 | PLATE,CLUTCH HSG LWR |
| 14 | 02162-0610A-000 | SCREW |
| 15 | 11241-86FA0-000 | STAND,OIL FILTER |
| 16 | 16510-61A02-000 | フィルタアッシ,オイル(TOKYO ROKI) |
| 16 | 16510-61A31-000 | FILTER ASSY,OIL WAKO |
| 16 | 16510-61A30-000 | Filter assy,oil |
| 16 | 16510-61A32-000 | OIL FILTER, WAKO |
| 17 | 16531-69G10-000 | Case,oil filter adapter |
| 17 | 16531-69G20-000 | CASE,OIL FILTER ADAPTER |
| 17 | 16539-69G00-000 | GASKET,OIL ADAPTER CASE |
| 18 | 09280-62003-000 | O RING(D:3.5,ID:60.7) |
| 19 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover |
| 20 | 18640-78G00-000 | SENSOR ASSY,KNOCK |
| 21 | 37820-80G01-000 | Switch assy,oil press |
| 21 | 37820-80GP0-000 | SWITCH ASSY,OIL PRESSURE |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Cylinder (2006-05-01~) |
| 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Cylinder (2006-05-01~) |
| 01550-0840A-000 | Bolt | Cylinder (2006-05-01~) |
| 02162-0610A-000 | SCREW | Cylinder (2006-05-01~) |
| 04211-13189-000 | PIN | Cylinder (2006-05-01~) |
| 09202-08004-000 | PIN(8X23) | Cylinder (2006-05-01~) |
| 09241-30010-000 | PLUG | Cylinder (2006-05-01~) |
| 09248-18010-000 | PLUG(18X15) | Cylinder (2006-05-01~) |
| 09280-62003-000 | O RING(D:3.5,ID:60.7) | Cylinder (2006-05-01~) |
| 11112-73010-000 | PLUG,OIL VENTURI | Cylinder (2006-05-01~) |
| 11200-69G05-000 | ブロックアッシ,シリンダ | Cylinder (2006-05-01~) |
| 11200-69G08-X12 | BLOCK ASSY,CYLINDER M13A | Cylinder (2006-05-01~) |
| 11200-69G09-X12 | BLOCK ASSY,CYLINDER M13A | Cylinder (2006-05-01~) |
| 11213-69G00-000 | PLATE,BREATHER FRONT | Cylinder (2006-05-01~) |
| 11214-69G00-000 | PLATE,BREATHER REAR | Cylinder (2006-05-01~) |
| 11216-77E00-000 | GASKET,M18 PLUG | Cylinder (2006-05-01~) |
| 11241-86FA0-000 | STAND,OIL FILTER | Cylinder (2006-05-01~) |
| 11260-69G00-000 | Bolt,crank bearing cap,10x97 | Cylinder (2006-05-01~) |
| 11260-69G01-000 | BOLT,CRANK BEARING CAP | Cylinder (2006-05-01~) |
| 11320-69G00-000 | PLATE,CLUTCH HSG LWR | Cylinder (2006-05-01~) |
| 16510-61A02-000 | フィルタアッシ,オイル(TOKYO ROKI) | Cylinder (2006-05-01~) |
| 16510-61A30-000 | Filter assy,oil | Cylinder (2006-05-01~) |
| 16510-61A31-000 | FILTER ASSY,OIL WAKO | Cylinder (2006-05-01~) |
| 16510-61A32-000 | OIL FILTER, WAKO | Cylinder (2006-05-01~) |
| 16531-69G10-000 | Case,oil filter adapter | Cylinder (2006-05-01~) |
| 16531-69G20-000 | CASE,OIL FILTER ADAPTER | Cylinder (2006-05-01~) |
| 16539-69G00-000 | GASKET,OIL ADAPTER CASE | Cylinder (2006-05-01~) |
| 18640-78G00-000 | SENSOR ASSY,KNOCK | Cylinder (2006-05-01~) |
| 37820-80G01-000 | Switch assy,oil press | Cylinder (2006-05-01~) |
| 37820-80GP0-000 | SWITCH ASSY,OIL PRESSURE | Cylinder (2006-05-01~) |
